1995 - 2000 GM OBS Truck Parasitic Draw Diagnosis ~ Voltage Drop Testing Methodology (Chevy & GMC)

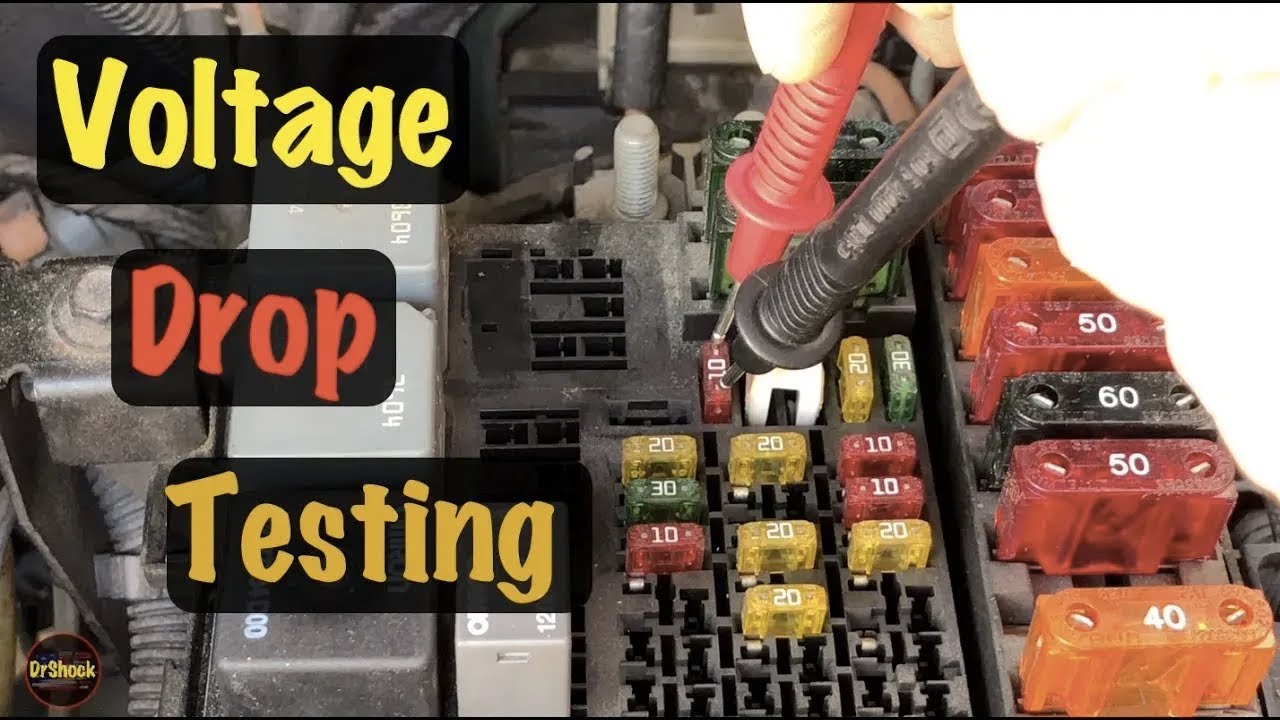

Описание: In this video we will be going thru how to locate and repair a parasitic current draw causing the battery to prematurely discharge. A parasitic drain is caused by a circuit being powered on abnormally after the vehicle has been shut off. We will locate the problem using the technique of measuring voltage drop across the fuse for each circuit in the vehicle. This approach works for both single battery gasoline trucks, as well as dual battery diesel vehicles.

The truck illustrated is a 1999 Chevrolet K1500 Suburban LT, old body style (OBS) GMT400, but the parasitic draw diagnosis procedure I share with you will be the same for any 1995 thru 2000 OBS truck or SUV. So Cadillac, Chevrolet, and GMC for Escalade, Cheyenne, Silverado, Suburban, Tahoe, Sierra, and Yukon across C1500, K1500, C2500, K2500, C3500, and K3500 weight ratings. This approach will be similar, with only the interior design / fuse box location, being different than shown, for all earlier OBS trucks from 1998 thru 1994.

The eBay and Amazon search links below are paid links, for which I may be compensated and earn a commission, if you choose to buy the parts and tools shown in this video thru them:

Uni-T UT210E clamp type ammeter: https://ebay.us/M1VzJN or https://amzn.to/3XbHJC2

GM factory service manuals for OBS CK truck models: https://ebay.us/MR4JXW

The following discontinued sunshade parts are unique to the SUV body styles, and will only fit 1997 thru 2000:
GM 15001755 (LH) and GM 15001756 (RH) illuminated sunshade in red: https://ebay.us/KAv6Ap

GM 15745401 (LH) and GM 15745402 (RH) illuminated sunshade in gray: https://ebay.us/XVHhUU

GM 15745405 (LH) and GM 15745406 (RH) illuminated sunshade in neutral: https://ebay.us/gVkkmM

GM 15745403 (LH) and GM 15745404 (RH) illuminated sunshade in blue: https://ebay.us/cFmjUP

And if I've saved you some $$ here, consider some coins for the coffee tip-jar! https://ko-fi.com/drshock

1995 1996 1997 1998 1999 2000

Chapters:
0:00 - Problem overview
0:26 - Service manual guidance on parasitic load testing
4:58 - Voltage drop testing methodology
11:18 - Confirming a suspected parasitic draw
15:05 - Repairing a confirmed parasitic draw example
18:22 - Repair approaches for a defective sunshade vanity mirror cover

#drshock #obstruck #obstrucks #gmt400
