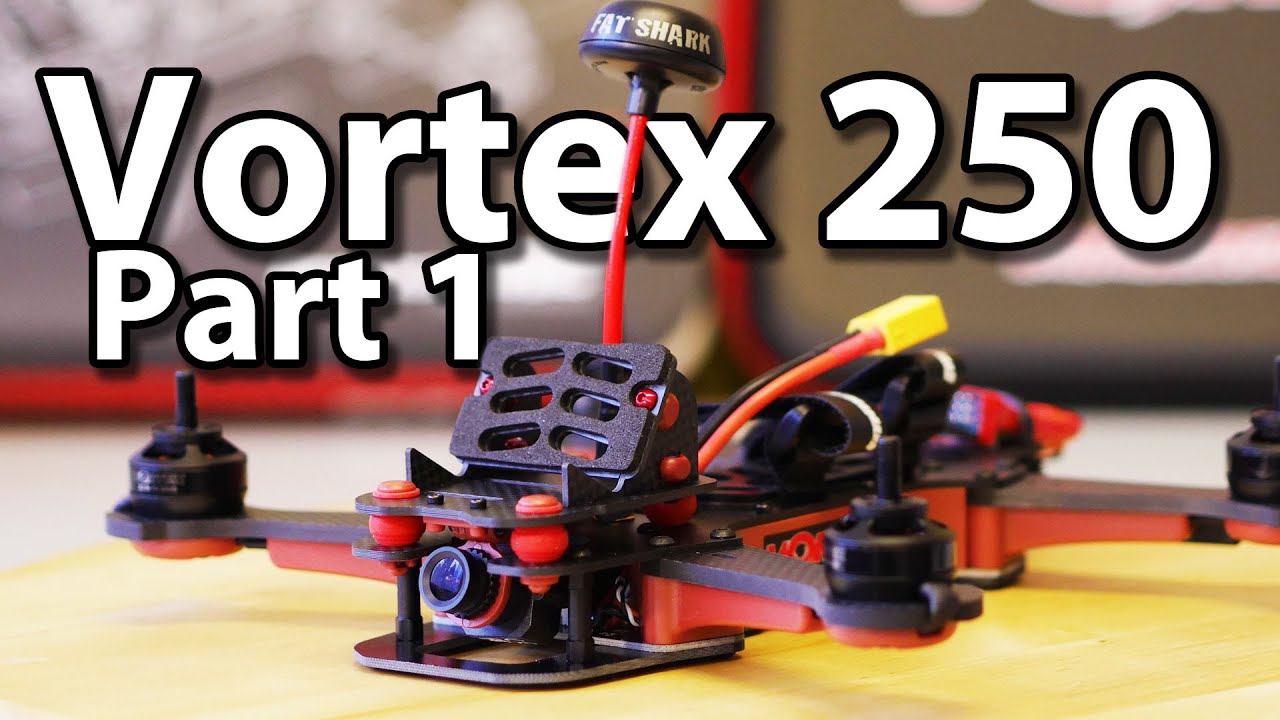

Vortex 250 Pro - Part1 Unboxing and review | RCSchim

Описание: Here you see what's inside the box / case, hear my initial thoughts and first little issues I ran into (receiver binding, HD Camplate mounting).
There is a 2nd part https://goo.gl/uYRjm0 with a complete OSD and setup walktrough. And of course soon you will find the first flight videos.

If you are a regular viewer you might already know that I like RTF systems because I dont like to build/solder...
But until now most RTF quads were not really suiteable for racing (even if their name implied). We will see in the next videos if this quad can keep the promise of being a "pure bred racer".

Little preview:
I already flew the first packs and really like this thing! Unbelieveable how easy you get into the air, no tuning needed because the pros already did this for you! Lots of options.
Versatile flying capabilities:
3cell batt: totally OK for relaxed cruising, for the first flights or for exploration;
4Cell and pro settings: a real beast!

►Quick Tipps:
LED Board button
Press 2sec to change VTX BAND
Press 5sec to enther TX Setup Wizard

Arm Motors Throttle=0, YAW=right
Disarm Throttle=0, YAW=left
Enter OSD Throttle=0, YAW=left (while Motors are disarmed)
(if you cant arm or dont get into the menu: try trimming yaw more to right or left - your stick "servo-way" is not 100% - set rates on your radio to 100% and repeat the TX Wizard!)

►►GPS Support?
Immersion told me, if you use a "supported" GPS ezOSD will use it and show speed and distance. Anyone already tried this?
I'll see if I can get more info on this...

►Links:
ImmersionRC Offical Page: http://goo.gl/GgJLZE
Quick Manual: https://goo.gl/NHE22X
Huge RCGroups Thread: http://goo.gl/qM41K0

►Tech Specs:
Size (diagonal): 250mm (275mm option for 6" Props)
Frame: 2mm CF, with 15x Aluminium Standoffs
Arms: 4mm Flat CF
Motors: Custom 2204-2300kV, 3mm Shaft
ESC: 20/22A EzESC, OneShot125, rotorSENSE
Flight Controller: STM32F303 based ('F3')
OSD : Full Graphic
VideoTX Power: 250-350mw

BlackBox: 2MB Included
Rx Support: Native CPPM, S-Bus, Spektrum, XBus, SumD, SumH
Rx Selection: Fully Automatic
Case: Foam or Zipper case options at order time
Camera Mount: GoPro 3/4, mount included
USB Port: Through-Hole (Much more robust)
LED Board: v2, more robust
Lost Model Beeper: Yes... MUCH louder
Standoffs: Metal (all of them)
FlightCam: 700TVL CMOS v2
weight: 671gr (with gopro+ 1300mah 4s)
451gr all except hd cam and batt)

Filmed with Gopro Hero 3+ Black - check out http://Gopro.com !
modded with ►MP10 Lens: https://goo.gl/Gh7A0g

►EQUIPMENT: http://goo.gl/QNzck
►►find infos on all my copters here in my Hangar: http://goo.gl/l5GfrE
