PSAD SITUATION 157: Eccentrically Loaded Bolted Connection | CELE November 2022
Автор: Engr. Harf Miranda (Sir Harf Engineering Tutorial)
Загружено: 2025-11-17
Просмотров: 946
Описание:
CELE Past Board Exam Problem
To learn more, enrol now to iReview Tutorial and Review Center: https://www.facebook.com/share/1AC24W...

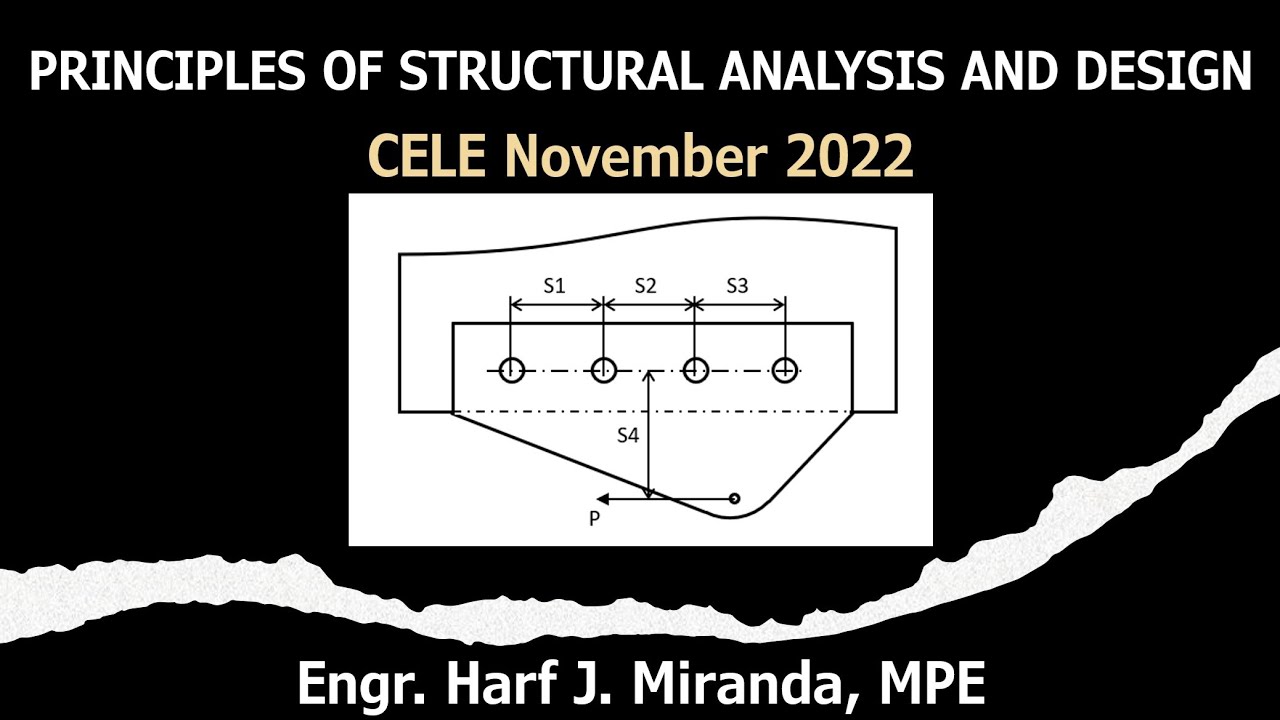

SITUATION: The gusset plate connection shows four 16 mm diameter bolts supporting load P.
Given:
P = 37.5 kN
S1 = S2 = S3 = 75 mm
S4 = 100 mm
1. Determine the maximum shear stress (MPa) developed in the bolts.
A. 72 C. 88
B. 121 D. 63
2. Determine the minimum shear stress (MPa) developed in the bolts.
A. 72 C. 80
B. 53 D. 121
3. The allowable bolt shear stress is 50 MPa. Determine the required bolt diameter (mm) to prevent over stressing.
A. 22 C. 20
B. 16 D. 25
