PSAD SITUATION 158: Eccentrically Loaded Bolted Connection | CELE April 2025
Автор: Engr. Harf Miranda (Sir Harf Engineering Tutorial)
Загружено: 2025-11-18
Просмотров: 727
Описание:
CELE Past Board Exam Problem
To learn more, enrol now to iReview Tutorial and Review Center: https://www.facebook.com/share/1AC24W...

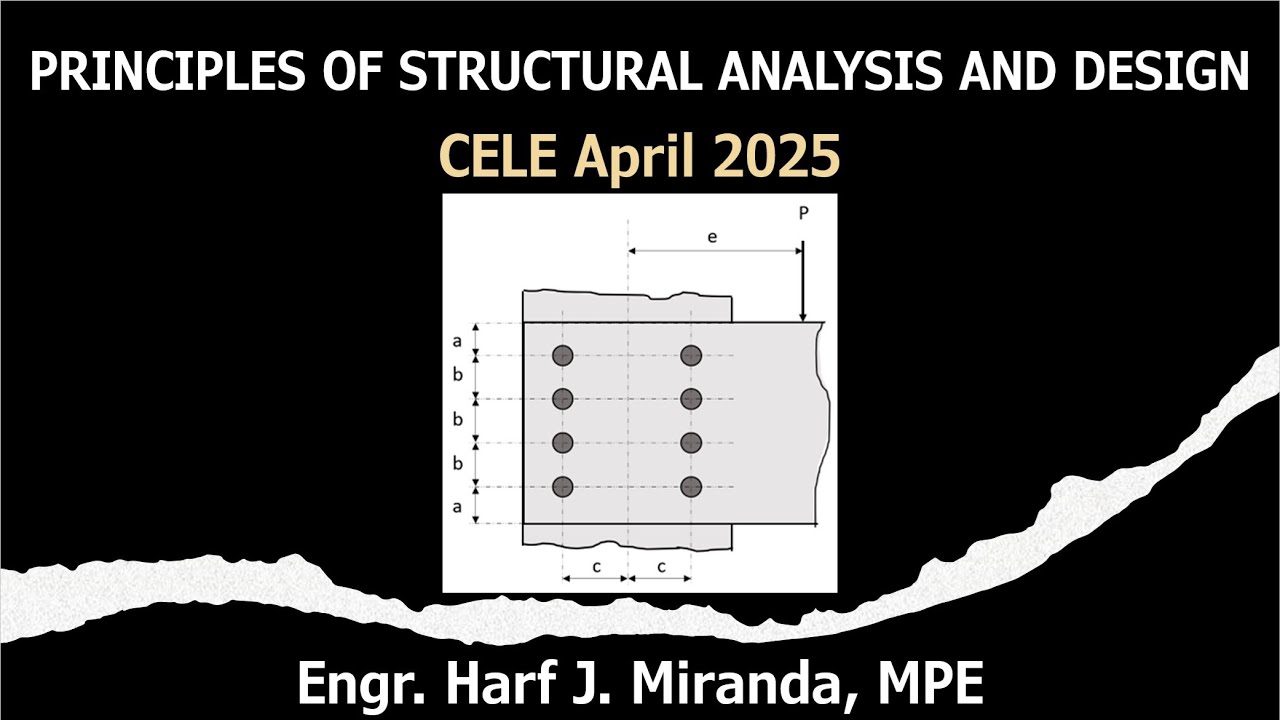

SITUATION: The column bracket shown carries an eccentric load of P = 240 kN acting e = 225 mm from the center of the group of rivets. Diameter of rivets is 22 mm. Assume that the bracket is thick enough to carry the load.
Given: a = 40 mm, b = 80 mm, c = 70 mm
1. Which of the following gives the shearing stress (MPa) of the rivets due to axial loads only?
A. 39.46 C. 78.92
B. 157.84 D. 30
2. Which of the following gives the shearing stress (MPa) of the rivets due to torsion only?
A. 87.6 C. 123.4
B. 191.2 D. 211.6
3. Which of the following gives the maximum shearing stress (MPa) of the rivets?
A. 240.8 C. 225.1
B. 216.8 D. 289.2
