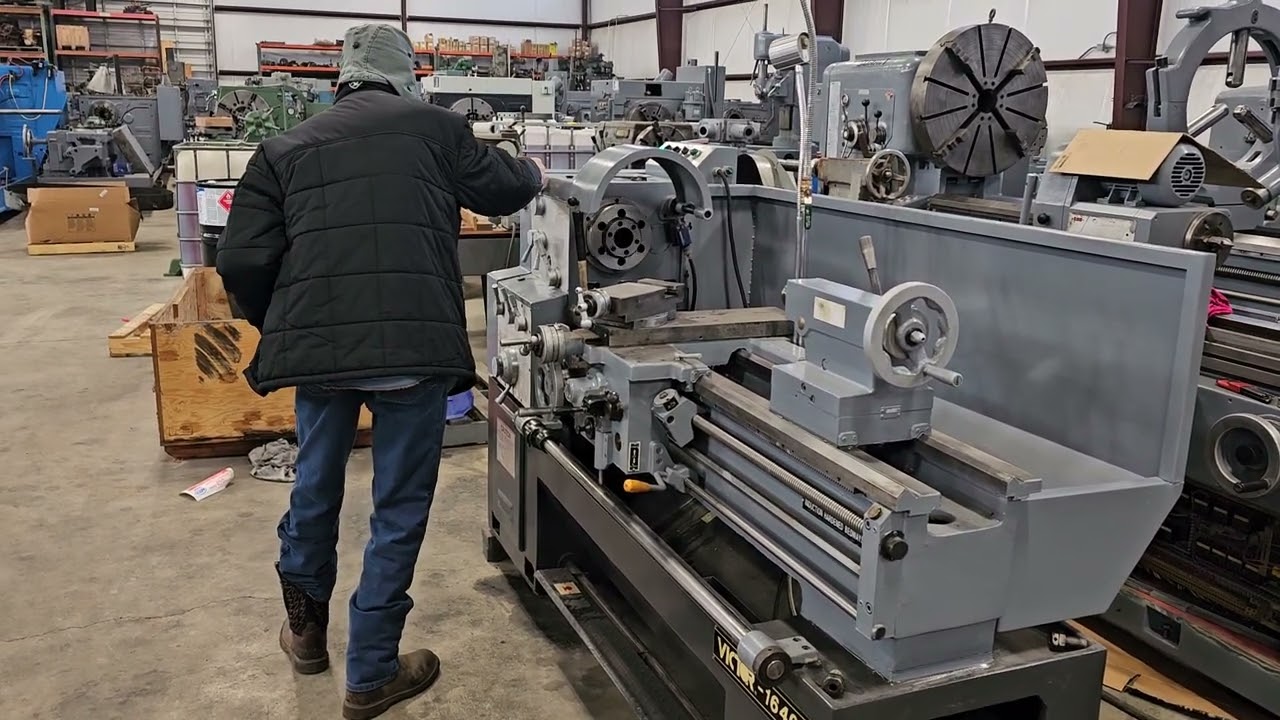

Victor Engine Lathe Model 1640B

Описание: Stock #: L3000165 | VICTOR 1640B | S/N: 00101194 | Used - Excellen

Description:
16"X40" Victor Engine Lathe Model 1640B Serial Number 00101194
Specifications:
CAPACITY:
Swing over bed:.........................................16"
Swing over cross slide:.............................9.84"
Swing over gap:........................................23"
Bed width:.................................................11"
Center Distance:.......................................40"
CARRIAGE:
Cross slide travel:.....................................8-5/8"
Compound slide travel:............................4-1/2"
HEADSTOCK:
Spindle bore diameter:.............................2.03"
Spindle bore taper:...................................M.T. #6
Number of spindle speeds:......................16 Steps
Range of spindle speeds (rpm):...............33 ~ 2,000 rpm
Spindle Nose:............................................D-1-6
Chuck Size:...............................................12" 4-Jaw & 10"3 Jaw
...................................................................New Gator With 2 Piece Jaws
THREADS & FEEDS:
Range of longitudinal feeds:....................0.0033" ~ 0.0455"/rev.
Range of cross feeds:..............................0.0028" ~ 0.0387"/rev.
Inch threads:.............................................4 ~ 56 TPI x 36 kinds
Metric threads:..........................................0.5 ~ 7 mm x 22 kinds
TAILSTOCK:
Tailstock taper center:.............................M.T. #4
Tailstock quill travel:................................4-11/16"
Tail Stock Quill Diameter:........................2-1/2"
POWER:
Main motor:.............................................7.5 HP 3 Phase On 240 Volt
Coolant pump:........................................1/8 HP
WEIGHT & DIMENSIONS:
Machine Floor Space.............................R-L 86" x F-B 45"
HEIGHT...................................................62"
Gross weight:.........................................3,600 lbs.
EQUIPPED WITH:
Taper Attachment And Clamp:.............Yes
Coolant Pan & Pump:............................Yes
Thread Dial:............................................Yes
Hardened And Ground Ways:................Yes

Note: Machine has been cleaned, painted and cycled.
From Government Suplus.
