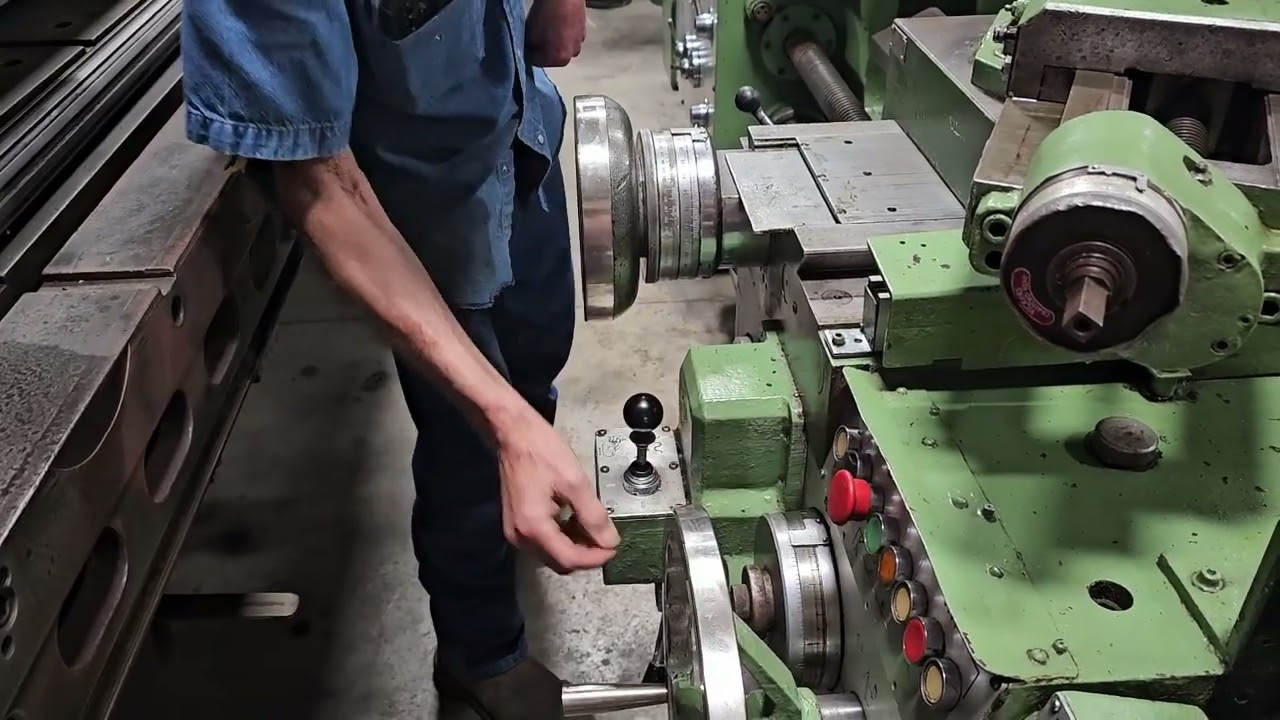

Broadbent Hollow Spindle Lathe

Описание: 34" X 100" Used Broadbent Hollow Spindle Engine Lathe
Stock #: L410628 | Year: 1980 | BROADBENT 33100 | S/N: 11257 |
Used - Good
Swing Over Bed Ways.........................................34"
Swing Over Cross Slide......................................20"
Swing In Gap.......................................................56"
Length Of Gap.....................................................17"
Center Distance..................................................100"
Spindle Hole........................................................16-1/4"
Spindle Speeds....................................................4 To 350 Rpm's
Chuck Size With 16-1/4" Hole Front...................30" 4 - Jaw
Feeds Cross ........................................................0.050 To 1.575 IPR
Feeds Long .........................................................0.101 To 3.101 IPR
Threads Inch........................................................4 To 96 TPI
Threads Metric.....................................................1 To 28 TPI
Tail Stock Quill Diameter......................................4"
Tail Stock Quill Travel...........................................10"
Tail Stock Taper.....................................................# 5 Morse
Floor Space Length & Width..................................R-L 16' X F-B 60"
Machine Height.....................................................72"
Weight....................................................................25,000 Lbs.
Main Motor............................................................30 Hp.
Steady Rest...........................................................12-1/2"
Chip Pan.................................................................Yes
Taper Attachment..................................................Yes
Thread Dial.............................................................Yes
6-Way Rapid Traverse............................................Yes
Coolant...................................................................Yes
Note As Taken From Services. Machine will be cleaned and cycled.
Missing the dogs for the Longitudinal rapid return on the fast threading.
