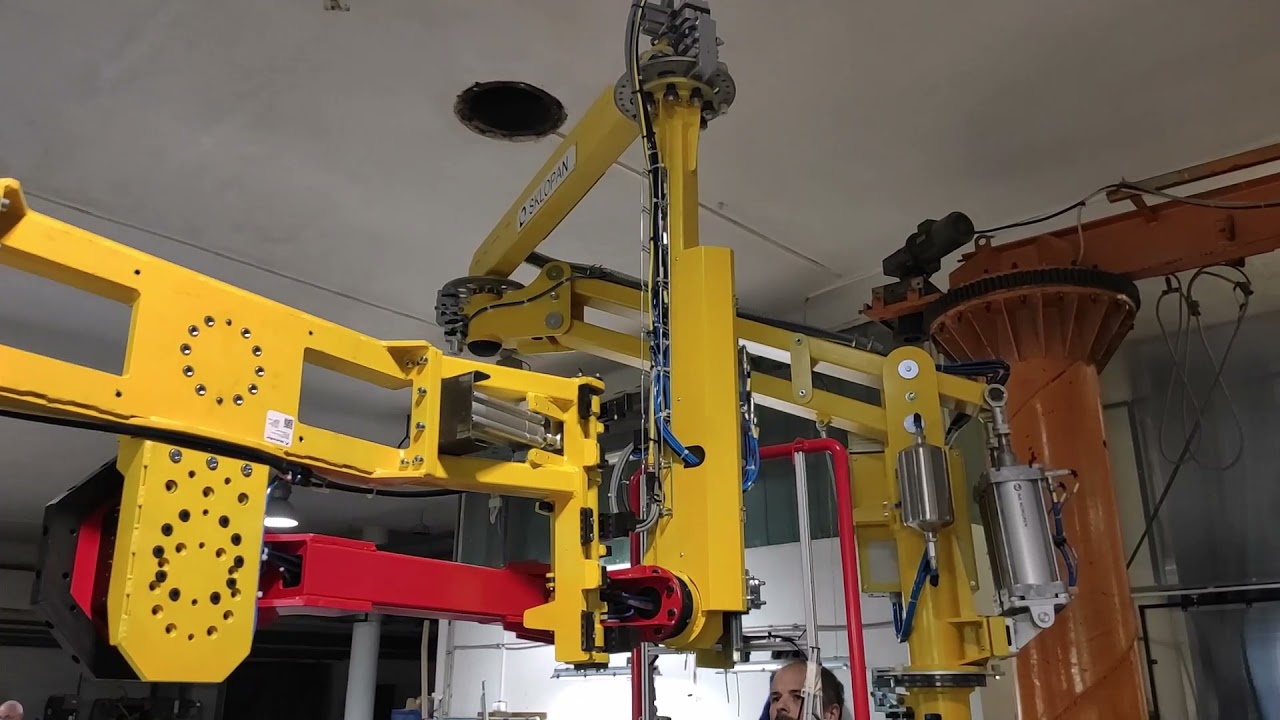

FURNSTECH Pneumatic Industrial Manipulator

Описание: Technical Specifications:

Type : Pneumatic Operated Pillar Type
Load Capacity Range : 50 to 500 Kgs.
Vertical Lift : Upto 2000 mm
Working Radius : Upto 4000 mm
Vertical Lifting Speed : Upto 0.5 meters/second
Rotation around Column Axis : 300˚
Rotation around Tool Axis : 300˚
Work Holding : By Pneumatic / Electrical / Manual Grippers
Load Balancing : By Pneumatic Cylinder.
Control System : Solely Pneumatic / Electrical
Air Supply : Filtered Compressed-Air (0.3 µm) Not lubricated
Air Working Pressure : 4 to 6 Bar
No/Low Air Supply Indication: By Electrical Indicating Lamp with Buzzer.

Features :
Self Pressure Balancing according to the different Loads
Column Mounted / Fixed Overhead / Running Overhead Type
Load Sensing Unit
Reciprocating Handle with Controls
Safe Work Releasing Mode
Swivel Brake
Work Tilting Unit
Universal Grippers

Safety devices:
In case of pressure failure slow descent till the floor
