Verifying the truth tables of all logic gates ICs -1 | NIMI | DIGITAL | TELUGU |

Описание: Welcome to this skill-enhancing tutorial presented by NIMI - Government of India. In this video, we will delve into verifying the truth tables of all the essential logic gates, a critical skill for aspiring technicians and engineers in the electronics and communication sectors.
Our video emphasizes hands-on demonstrations and self-paced learning to help you master this important concept in Telugu.
Time Stamps
0:00 - Title
0:06 - Introduction
0:39 - Objectives
0:52 - Basic logic gates
1:03 - Tools and materials for constructing and testing basic logic gates
1:10 - Tools and equipment
1:25 - Materials and components
1:53 - Procedure for construction and verification of AND gate logic using IC 7408
2:00 - AND gate
5:24 - Construction and verification of OR gate logic using IC 7432
5:29 - OR gate
8:20 - Construction and verification of NOT gate using IC 7404
8:25 - NOT gate
10:42 - Recap

🔧 What You’ll Learn:
Overview of Logic Gates:
Introduction to the basic logic gates: AND, OR, NOT.
Understanding how each gate works at the binary level.
Truth Tables Explained:
In-depth explanation of the truth tables for each of the basic logic gates.
How to analyze the input and output combinations for each gate.

Practical Demonstrations:
How to build and test circuits for each logic gate using standard ICs like the 7408 (AND), 7432 (OR), 7404 (NOT).
Hands-on walkthrough for constructing each logic gate using these ICs.

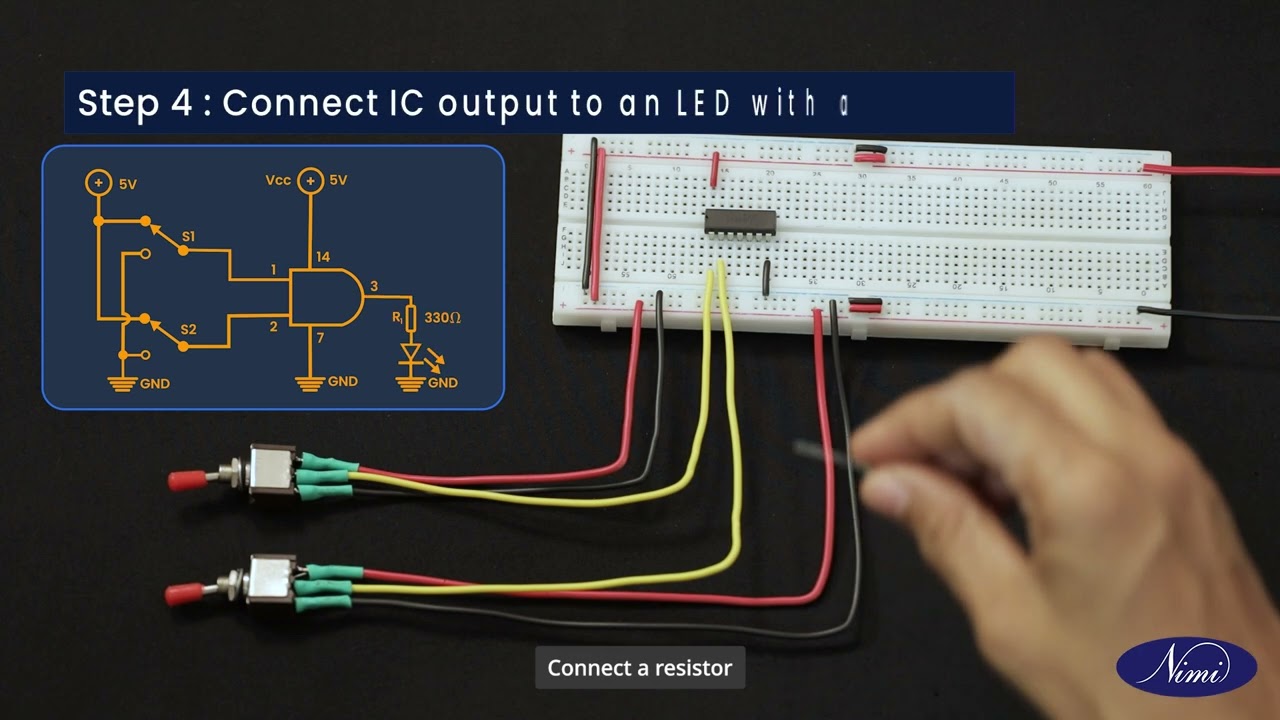

Step-by-step guide to wiring the gates on a breadboard and verifying their functionality.

Testing the Logic Gates:
How to measure the output of each gate by applying different combinations of input values.
Troubleshooting tips to ensure your logic gates are working correctly.

Safety Protocols:
Important safety protocols to follow while working with electronic components.
Ensuring safe handling of ICs and testing equipment during practical sessions.
