Construct and verify truth tables of NAND,NOR and EX-OR gate ICs | NIMI | DIGITAL | TELUGU |

Описание: NIMI - Government of India: Enhancing Skill Development for Vocational Education.
Focusing on digital electronics for aspiring technicians and engineers. This time, we will be exploring how to construct and verify truth tables for NAND, NOR, and XOR gate ICs. These basic logic gates form the foundation of complex digital systems and are crucial to understanding how digital circuits work. Our video emphasizes hands-on demonstrations and self-paced learning to help you master this important concept in Telugu.
Time Stamps
0:00 - Title
0:06 - Introduction
0:25 - Objectives
0:42 - Advanced logic gates

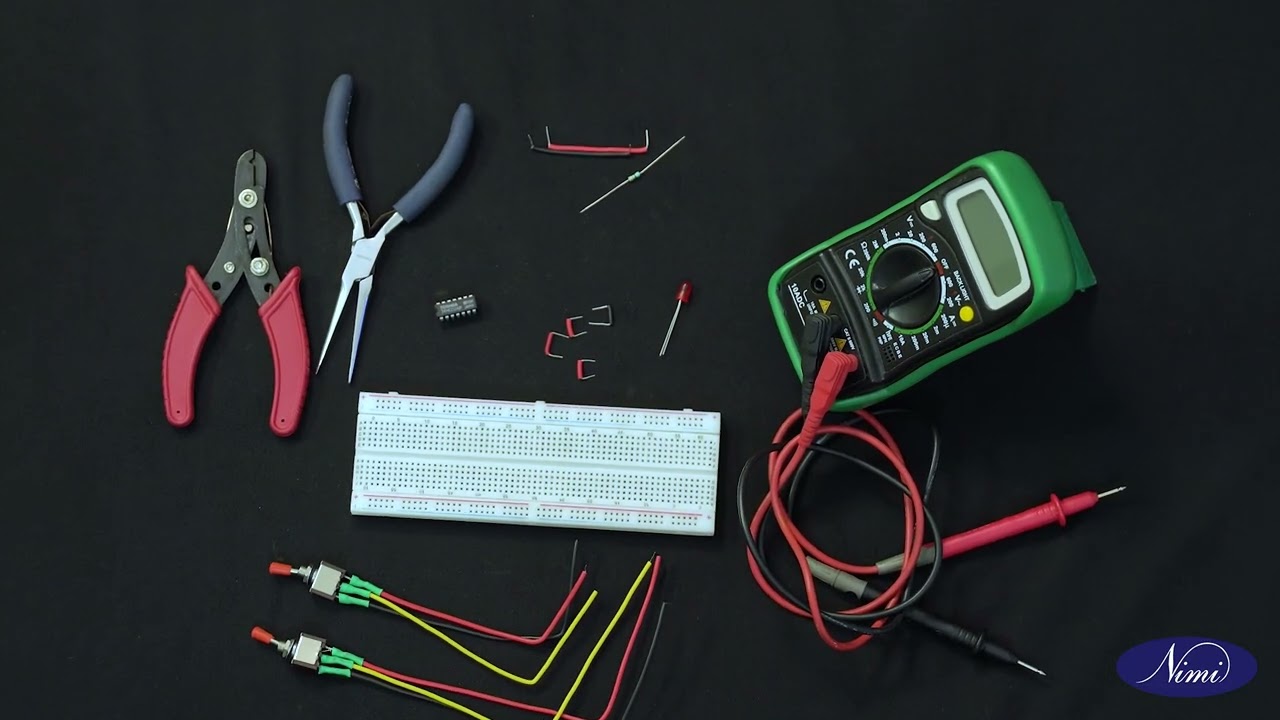

0:52 - Tools and materials for constructing and testing advanced logic gates
0:59 - Tools and equipment
1:16 - Materials and components
1:50 - Procedure for construction and verification of NAND gate logic using IC 7400
1:57 - NAND gate
5:20 - Construction and verification of NOR gate logic using IC 7402
5:28 - NOR gate
8:32 - Construction and verification of EX-OR gate using IC 7486
8:38 - EX-OR gate
11:46 - Recap

🔧 What You Will Learn in This Video:
Introduction to Logic Gates: Understand the fundamental logic gates—NAND, NOR, and XOR—and how they are implemented in digital circuits.
Verification using IC:
Use the 7400 series NAND gate IC for practical verification.
Apply the binary inputs (0 and 1) and check the output on the corresponding output pin.
Verification using IC:
Use the 7402 series NOR gate IC to test and verify the output.
Set the inputs to 0 and 1, and verify the truth table using a multimeter or oscilloscope.
Verification using IC:
Use the 7486 series XOR gate IC to verify the operation.
Apply different combinations of inputs and check the output using a logic probe or digital multimeter.
🔔 Conclusion:
Understanding and verifying the truth tables of NAND, NOR, and XOR gates are foundational skills for anyone pursuing a career in electronics and digital systems. These gates are widely used in logic circuits, microprocessors, memory systems, and more.
