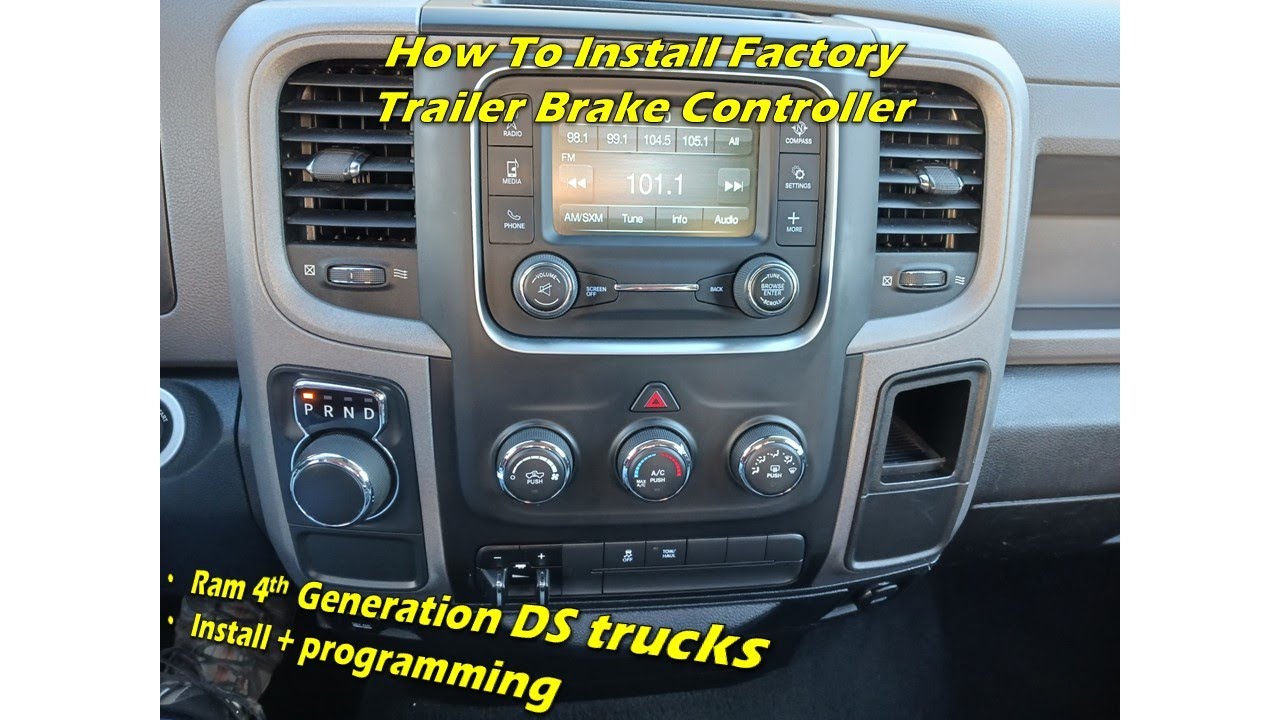

Ram 1500 DS (2013+) OEM Trailer Brake Controller Install with Programming
Автор: Ironically Engineered
Загружено: 2025-01-08
Просмотров: 3114
Описание:
In this video I will be installing an OEM trailer brake controller into a 2018 Ram 1500 DS. This process should work for all DS half ton trucks from 2013 on. The heavy duty trucks should be similar.
Supplies needed:
Trailer brake control module kit (check ebay!)
Security bypass harness
Alfa OBD software
OBD connector compatible with AlfaOBD
You will need to active the below options with AlfaOBD in the Car Configuration Change Menu:
1: CBC Features: Trailer Tow Present (check that it's enabled)
2: Cust.set.menu2: Trailer Selected CSM Present
3: Cust.set.menu2: Trailer Name CSM Present
4: Cust.set.menu2: Trailer Type CSM Present
5: P/T Chassis Net: ITBM/ HWW Integrated Trailer Brake Module
00:00:00 Intro
00:00:22 Supplies
00:01:18 Removing Radio Bezel
00:02:08 Removing Blank/ Installing Brake Switch
00:03:14 Install Brake Module Bracket/ Module
00:06:18 Security Bypass Cable
00:07:44 Coding
00:10:40 Function Check
