PAST BOARD EXAM PROBLEMS
Structural Engineering & Construction
Situation 18

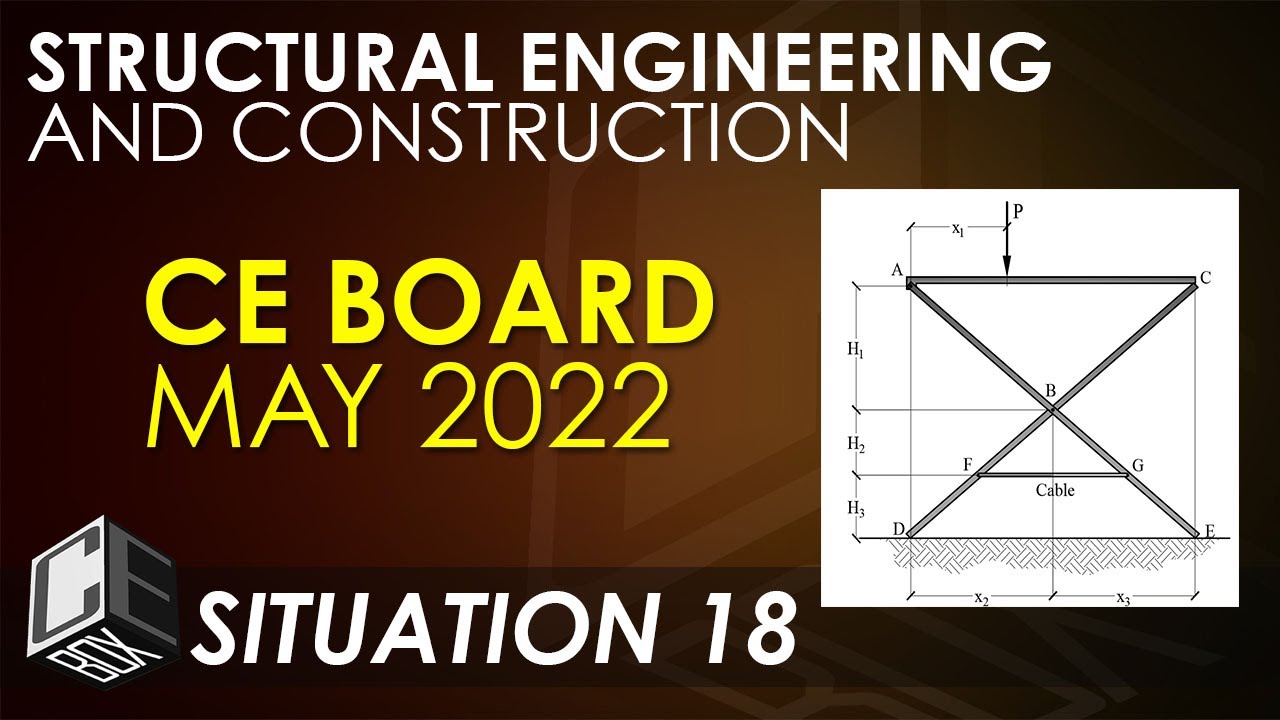

The figure shown is a portable seat subjected to a load P = 2100 kN and is braced by a cable FG. Coefficient of friction at D and E is 0.20.
Given:
H1 = 0.5m x1 = 0.60m
H2 = 0.25m x2 = 0.45m
H3 = 0.25m x3 = 0.45m
1. Determine the reaction at C (1400 kN)
2. Determine the tensile force in cable FG (1540 kN); and
3. Determine the reaction at D (713.86 kN)
