PSAD SITUATION 82: Analysis of Pin-Jointed Frame (Portable Seat)| CELE May 2014
Автор: Engr. Harf Miranda (Sir Harf Engineering Tutorial)
Загружено: 2025-08-30
Просмотров: 1604
Описание:
CELE Past Board Exam Problem
To learn more, enrol now to iReview Tutorial and Review Center: https://www.facebook.com/share/1AC24W...

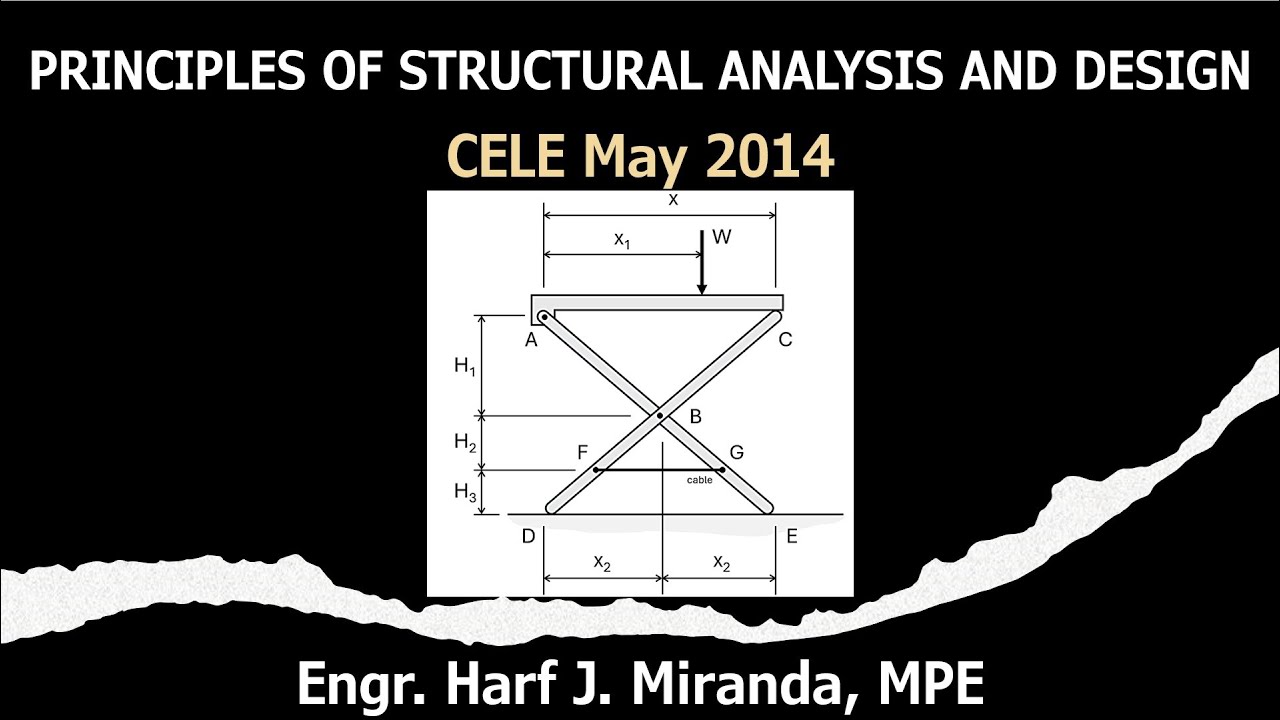

SITUATION: The figure shown is a portable seat subjected to a load W = 2100 kN and is braced by a cable FG. Surfaces C, D, and E are frictionless.
Given: H1 = 0.5 m, H2 = 0.25 m, H3 = 0.25 m
x = 0.90 m, x1 = 0.60 m, x2 = 0.45 m
1. Calculate the tensile force (kN) in cable FG.
A. 3625 C. 4595
B. 2150 D. 3780
2. Calculate the reaction at D, in kN.
A. 350 C. 700
B. 1800 D. 1400
3. Calculate the reaction at C, in kN.
A. 1800 C. 1400
B. 700 D. 350
