How to test coating hardness using the Elcometer 3092 Sclerometer Hardness Tester

Описание: The Elcometer 3092 Sclerometer Hardness Tester measures the hardness of a coating by moving a hardened tip over the coating with predetermined force.

The coating is then visually examined for damage. The harder the coating, the greater the force required to scratch it.

To begin testing, you need to select a spring, and set the tip force. There are four springs of varying ranges available for use with the Elcometer 3092, and the stiffness of each is identified by their colour:

Grey spring: 0-3N (0.671lbF)
Red spring: 0-10N (2.248lbF)
Blue spring: 0-20N (4.49lbF)
Green spring: 0-30N (6.74lbF)*

*Each Elcometer 3092 Sclerometer Hardness Tester is supplied in a case with a 0.75mm (0.03”) diameter tungsten carbide tip and 3 springs (grey, red and blue). The green spring of 0 - 30N is also available as an optional accessory.

Typically, you should start testing with the softest spring.

The spring force can be set by the “collar”; compressing the spring increases the force with which the tip is pushed on to the surface of the test piece.

To insert the spring into the sclerometer, first loosen the locking screw on the side, remove the end cap, and slide the collar off. If there is already a spring inside the sclerometer, remove it and store in the case provided, and then insert the appropriate spring in its place. Refit the collar, ensuring the bevelled edge goes on first, replace the end cap, and then locate the scale on the sclerometer which matches the colour of your chosen spring.

Simply slide the collar to the required setting on the scale, and tighten the locking screw to set the tip force - typically you start testing with a smaller force, and work upwards.

Remember, the scratch method is a destructive test and will damage the coating, so we recommend using test panels when testing using this method.

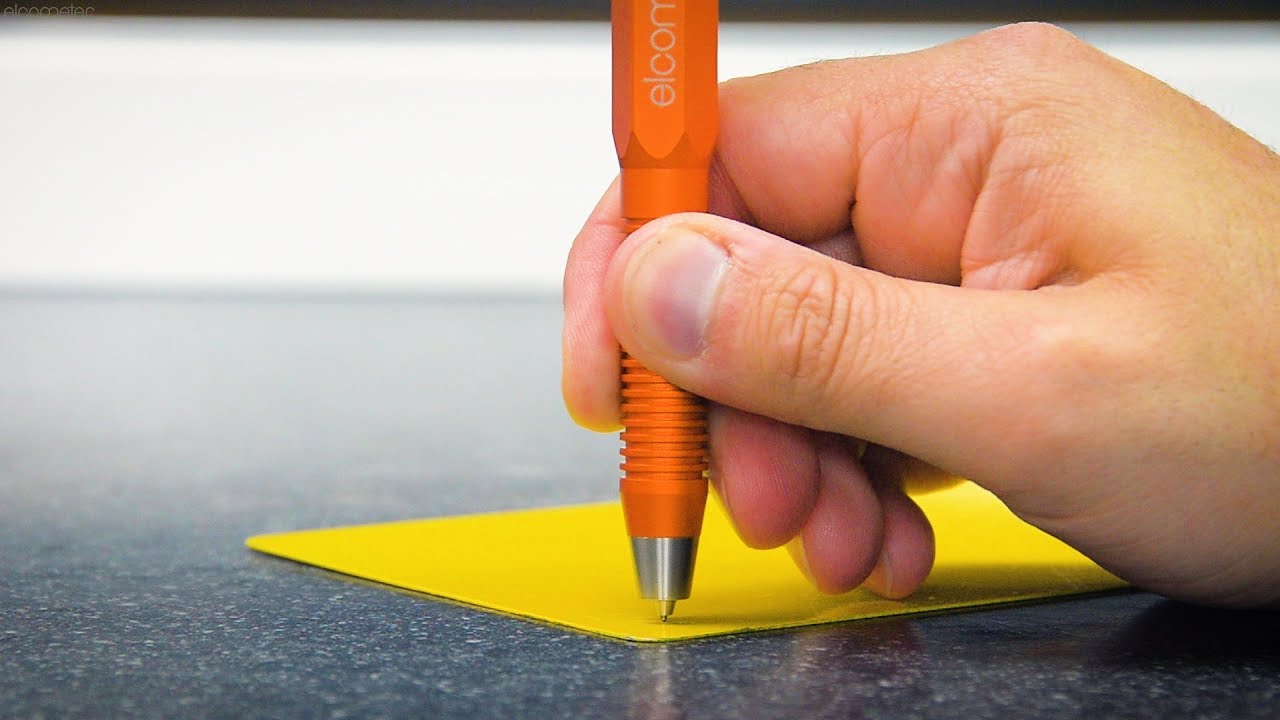

Place the sclerometer onto the coating. Move the gauge across the surface to produce a linear scratch approximately 10mm (0.4”) long. Then remove the gauge, and examine the coating.

If the surface is unmarked, use the collar on the Elcometer 3092 to increase the spring loading, and repeat the test until surface marking is detected.

The Elcometer 3092 is supplied with a Tungsten Carbide tip as standard, however an ISO type 90° Diamond Point Cone tip is available, allowing you to obtain results equivalent to EN 438-2, and ISO 4586-2.

Please note, while this video is a guide on how to use a sclerometer, we recommend you always refer to the test method or Standard you are working to directly, before testing.

For more information on Elcometer's range of Hardness and Scratch testers, contact Elcometer at [email protected] or visit our website at https://www.elcometer.com/pub/media/P...

----

Click here to download the video script in English: https://www.elcometer.com/images/stor...

----

STANDARDS

AS 3894.4, EN 438-2, ISO 4586-2
