Core Stacking Table

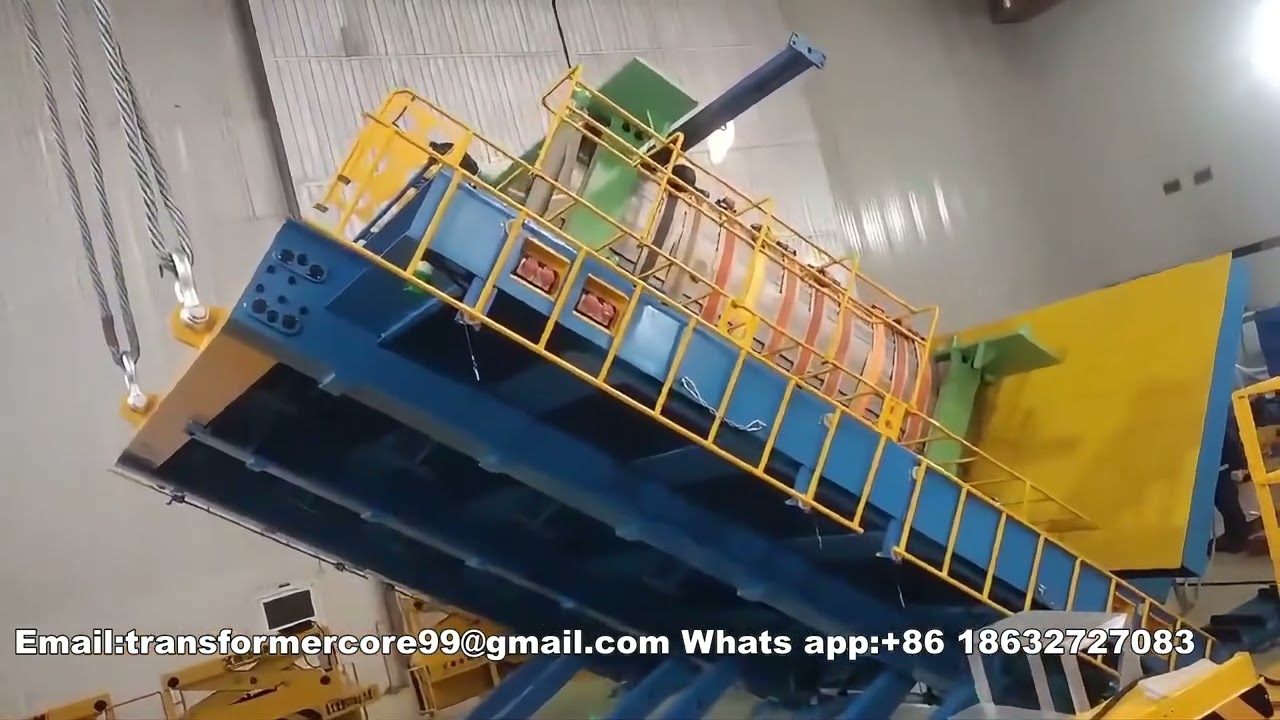

HCST has been designed for the assembly of laminations with or without holes. It is equipped with strikers, pins, and millimeter striker to be assembled with the step-lap system and with slots to bind the finished core before tipping it into a vertical position. The 90° platform tilting is powered by a hydraulic system.

Our HCST is the culmination of advanced engineering and innovative design. The robust hydraulic system at its core ensures controlled and seamless tilting, making it easier than ever to manage the components of your transformers. With this cutting-edge solution, your workflow will be optimized, and overall productivity boosted.
This stacking table is used for transformer core lamination stacking assembly and turning over. It is suitable for core laminations with or without upper yoke. The table is rotated by hydraulic system, and it has two hydraulic lifting platforms which can move up and down freely driven by hydraulic. So workers can have more convenient positions during staking the cores. The stacking table is designed as per customer’s production requirement, the electrical system and hydraulic system of the stacking table all use top brand elements and components.

Technology requirement
2-1, Total requirement
2-1-1, flat stacking, located exactly.
2-1-2, with over turning function in 0-90°, and stop in any position, and when the heavy point change from one side to another side in overturning, assure stable status.
2-1-3, in steel core overturning, there is steel core topple over device. When equipment working, it is stable in up and down movement, no abnormal noise.
2-1-4, can meet with set size steel core overturning requirement(total steel core height≤1800mm, total steel core length≤3000mm, steel core column diameter≤600mm).
2-1-5 steel core weight: with steel yoke≤3 tons(this worktable should meet with client supplied steel core size installation).
2-2, structure requirement
2-2-1, building block structure, can grouped according to steel core windows and suitable for different windows size, easy to adjust main column distance.
2-2-2, no requirement for special earth pit, only make a locating groove in early for assemble location, after installing finished, overturning components can be disassembled and lifted, no occupying for space.
2-2-3, hydraulic overturning to assure safety and stability. Best synchronous, no deform shape for steel core, convenient for steel core binding tightly in flat status, reducing assistant clamps in vertical. There is supporting leg in vertical column, when steel core overturning in 90°, open supporting leg to avoid steel core tipping.
The stacking table is floor mounted type, no need basement. It will be fastened on the ground by anchor bolts. Easy to installation.
Main composition
Overturning worktable, overturning gear rack, professional overturning lifting column, connecting beam, overturning seat.
Manufacture requirement
4-1, all component must be with enough strength and rigidity, assure no deform shape and working reliability.
4-2, lifting part must be heat treatment, assure working safety.
4-3, I-shape overturning worktable overturning gear shape rack connecting well in 90°.
4-4,all welding seam is meet with related standard, all acute angle is done in round to assure smooth, no deflection and burr in welding seam. All of welding structure has passed aging treatment.
4-5, welding component has passed heat treatment, no deformation in quality assurance time.
4-6, color and paint according to client requirement.
