Power Modules v2 with removable cells | 18650 project | MakerMan

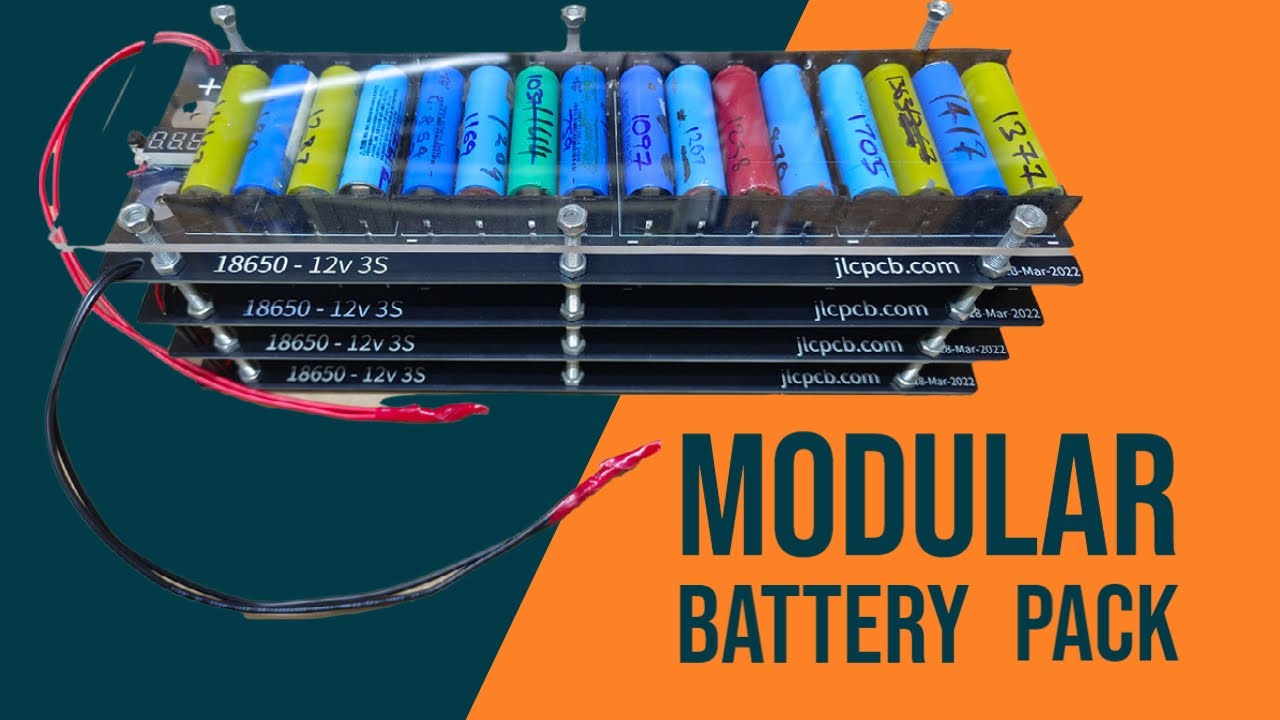

Описание: Here I made a 12v S4 18Ah Modular battery pack with removable cells from 18650 cells salvaged from old laptop batteries. I made a these pcbs for the Power modules, where there are glass fuses to show if any cell is shorted and can be easily serviced. I used my previously made 40cell Charging & Capacity Testing Station to know the capacity of the cells for repacking the cells in to proper battery packs.

I was contacted by JLCPCB, about their interest in sponsoring some of my projects and providing me with pcbs to speed up my projects.

Sponsored by JLCPCB
PCBs from $0 (Free Setup, Free Stencil): https://jlcpcb.com/RHS


How to order SMT on JLCPCBcom
https://cart.jlcpcb.com/quote?fromDem...)


40 cell Charging station for 18650
   • 40 Cell 18650 Charging Station | MakerMan

40cell Capacity Testing Station for 18650
   • 40 Cell 18650 Capacity Testing Station | M...

Many more 18650 related videos to come.


















-------------------------------------------------------------------------------
