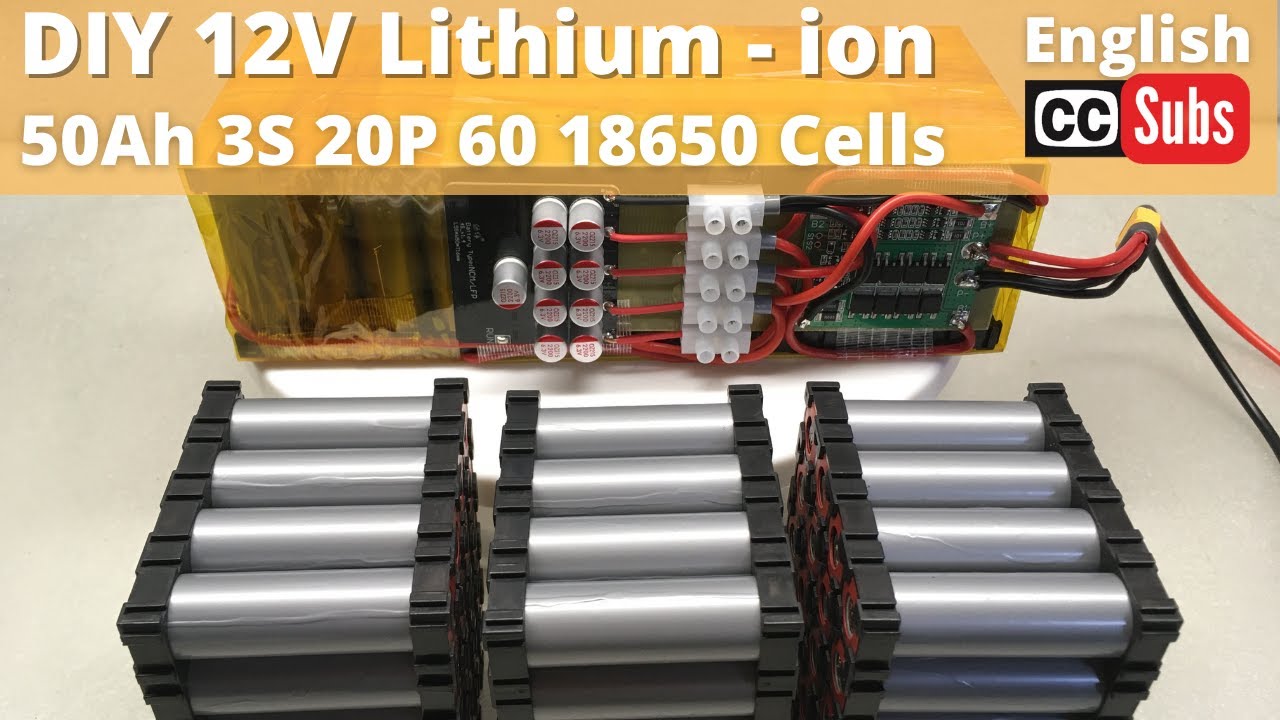

DIY 12V 50Ah Lithium-ion 18650 Cells Para sa Portable Solar Generator (Spot Welded)

Описание: RELATED VIDEOS:
How to Install BMS and Active Balancer -    • Paano Mag-Install  ng BMS at 5A Active Bal...
What is C-rate and How To Calculate -    • Part 1 C-Rate Charge and Discharge Calcula...
How To Choose BMS -    • Paano Pumili ng BMS (Battery Management Sy...
Amp Hours To Cell Needed in Building a Battery Bank -    • Amp Hours to Cells Needed in Building a Ba...
==============================

Isa sa mga requested video content ng iilan sa ating mga subscribers at viewers ay ang pag-buo ng battery bank gamit ang 18650 Lithium-ion cells. Eto ay may 60 cells, 3S 20P. Ang kapasidad ng bawat cell ay nasa 2,500mAh. Naka desinyo para sa "portable solar generator" o di naman kaya, para sa isang maliit na "budget friendly solar off-grid setup."

Paalala: Kung hindi sigurado sa condition at quality ng cells na gagamitin, mas maiging "soldered and fused method" ang gawing paraan sa pag build ng battery bank.

In case you're wondering what RVC means, it's requested video content.
==============================

TIMESTAMPS:
00:00 - Intro
00:12 - Tutorial Overview
00:23 - Cell Specifications & Info
01:42 - Nickel Strip
01:52 - Cell Holders
02:00 - Active Balancer
02:15 - BMS
02:39 - Barley Paper Ring Insulator
03:29 - Spot Welder
03:36 - Silicone Wire Cable
03:48 - Insulator Ring Application
04:55 - Cell Arrangement to Holders
06:43 - Nickel Strip Preparation
07:48 - Spot Welding
12:38 - Spot Weld Quality Check
13:25 - BMS and Active Balancer Installation
19:40 - XT60 Connector Installation
21:02 - Mounting Active Balancer
22:15 - Cable Management & Wrapping
23:19 - Charging Battery Bank
24:54 - Finished Final Build
25:53 - Measuring Voltage Per Parallel
26:44 - Battery Bank Specs Recap
27:10 - Outro
==============================

ROUGH COST ESTIMATE:
2,500mAh cell (Refurbished) - 40 to 50Php
30A 3S BMS - 200Php
5A 3S - 4S Active Balancer - 750Php
Barley Paper Ring Insulator - 50Php
Nickel Strip 1M 5P - 95Php
Cell Holder 4x5 10pcs - 60Php
==============================
