SMEC SL2500 Lathe Cutting Demo

Описание: http://www.dugard.com for more information
SMEC SL2500B / SL2500BM CNC Lathes
Standard Specification
Made in Korea
Fanuc 0iTF with 10.4” screen
Siemens 828D with Shopturn
Mill/drill option - M model
Swing over bed 650mm
Swing over cross slide 480mm
Max machining diameter 430mm / 405mm
Max machining length 554mm / 497mm
Chuck size 10”
Spindle speed 3500rpm
Spindle nose A2-8
Bore diameter 86mm
Max bar capacity 77mm
Motor cont/30min 15/18.5kW (18.5/26kW opt)
X/Z axis travel 245/600mm / 245/540mm
X/Z rapid traverse 24/30 m/min

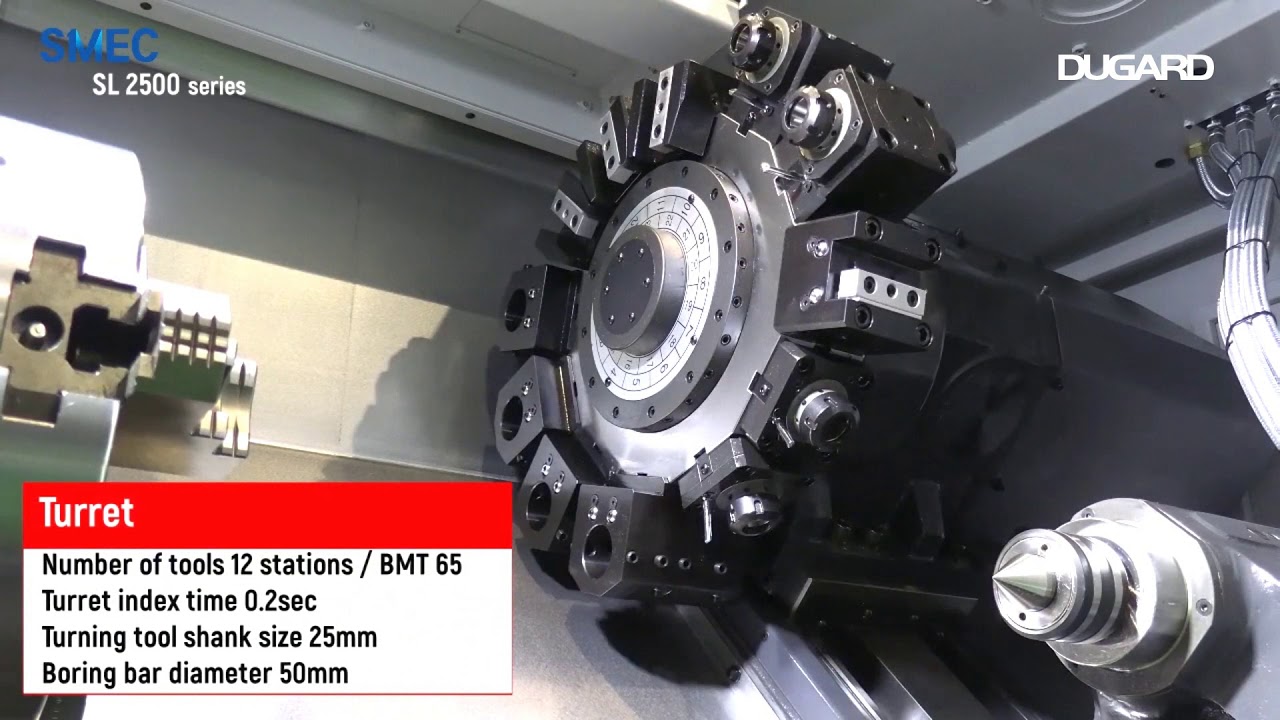

Number of tools 12 / 12 BMT65 (24 opt)
Indexing time 0.20 sec
Shank size for square tools 25mm
Shank diameter for boring bar 50mm
Live tool motor – max cont 3.7/5.5kW
Live tool speed 5000rpm (M model only)
Tailstock travel 522/100mm / 466/100mm
Tailstock quill diameter 110mm
Tailstock spindle taper MT4 (live centre)
Power 41/220kVA/V
Floor space L x W [with chip conveyor] 3125 [4230] x 1610mm
Machine height 1937mm
Machine weight 5100kg / 5200kg

Standard Equipment
Manual guide i
Transformer
High pressure coolant pump 10 bar
3 colour LED patrol lamp
Tool presetter Marposs manual
Tailstock manual body
Tailstock footswitch
Tool and work box
Hydraulic hollow chuck
Soft jaw (3 sets)
Hard jaw (1 set
Main spindle orientation
Chip conveyor (side) and bin
Air gun, coolant gun
Bar feed interface
CE certified, door interlock
2 axial and 2 radial mill/drill holders (M model)
