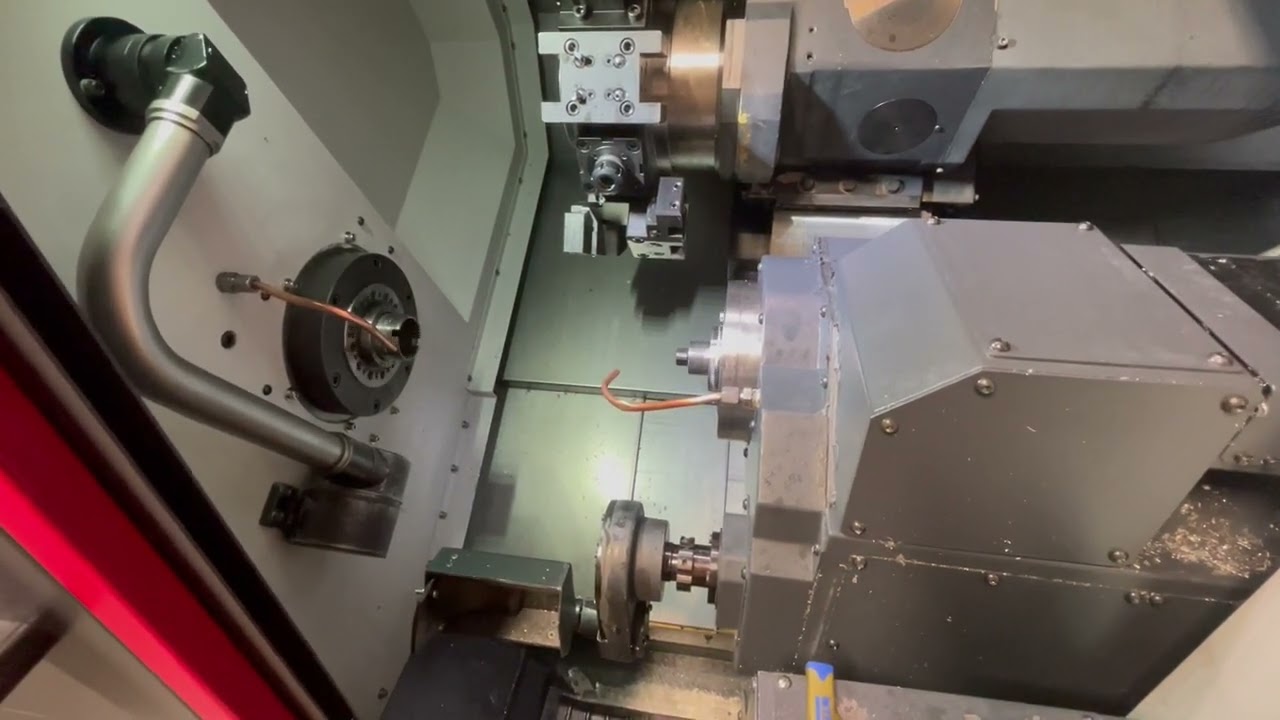

SMEC SL 2000SY CNC Lathe, 2020 - Parts Catcher, Y Axis, Sub Spindle, Fanuc Control
Автор: Revelation Machinery
Загружено: 2022-09-27
Просмотров: 318
Описание:
Swing Over the Bed: 25.59"
Max. Turning Diameter: 15.55"
Max. Turning Length: 17.72"
Bar Capacity(Main/Sub): 2.05/1.42"
Chuck Size(Main/Sub) : 6/6"
Spindle Speed(Main/Sub): 6,000/6,000 Rpm
Spindle Nose(Main/Sub): A2-5/A2-5
Main Spindle Motor(Cont./30min): 25/15 Hp
Sub Spindle Motor(Cont./30min): 10/7.5 Hp
Rapid Traverse(X/Y/Z/Zb): 945/394/1,181/945 Ipm
X-Axis Travel: 9.25"
Z Axis Travel: 22.83"
Y-Axis Travel: 4"
B-Axis Travel: 22.83"
Number of Tool Positions: 12(Bmt55)
Live Tool Type: BMT 55
Live Tool Speed: 5,000 RPM
Live Tool Motor: 4.9 / 7.3 HP
Machine Dimensions: 109" x 68" x 82"
Machine Weight: 9,149 lbs.
Equipped With:
Fanuc Oi-TF CNC Control
Chip Conveyor
Tri-Mist 850 Mist Collector
Parts Catcher
Parts Conveyor
Oil Skimmer
Automatic Tool Presetter
