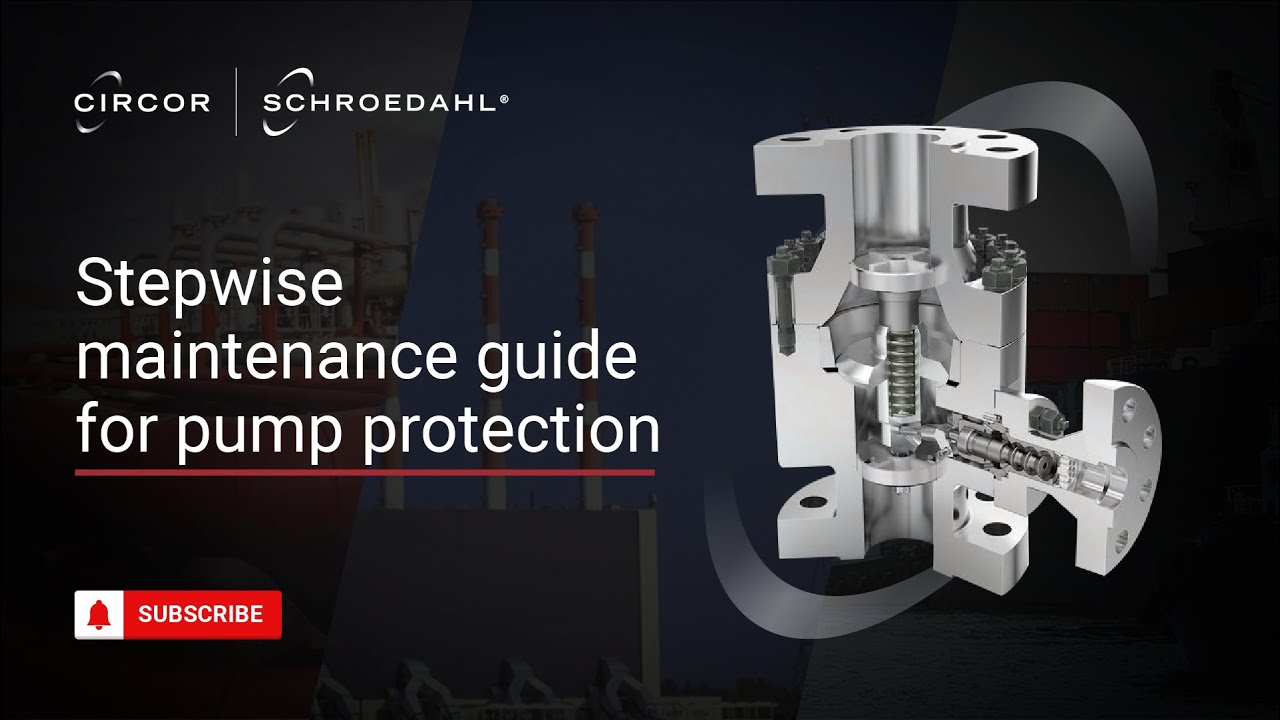

Step-by-step maintenance video guide for Schroedahl – TDM pump protection

Описание: If the maintenance interval of your SCHROEDAHL pump protection system is approaching, this video can specifically help you thoroughly understand the system. Explore, learn, and prepare yourself for this task before dismantling the system.

It is a detailed step-by-step, and precise video guide that you can follow to give your system an efficient and sustainable operability check. It educates and enables you to understand the parts that define your pump protection system and how to disassemble and then reassemble them correctly. It also enlightens you about some of the potential problems that may arise and how you can solve them.

CIRCOR International is one of the world’s leading providers of mission-critical flow control products and services. From centrifugal pumps to pump protection valves – we offer you the right fluid-handling solution that meets your needs.

00:00 Disclaimer
01:04 Removing the valve
01:42 Loosen the bolts
01:57 Extract the bypass insert from the valve
02:25 Check the inside surface of bushing
02:59 Check the seating surface of plug
03:17 Check the movability of the bushing
04:23 Inspect the nozzle check for any damage to the inner surface
5:47 Remove the spring from check valve
7:06 Install the new gasket
7:20 Connect lever of bypass with check valve
7:39 Insert lever in bore hole of Check valve
8:31 Tighten the bolts
