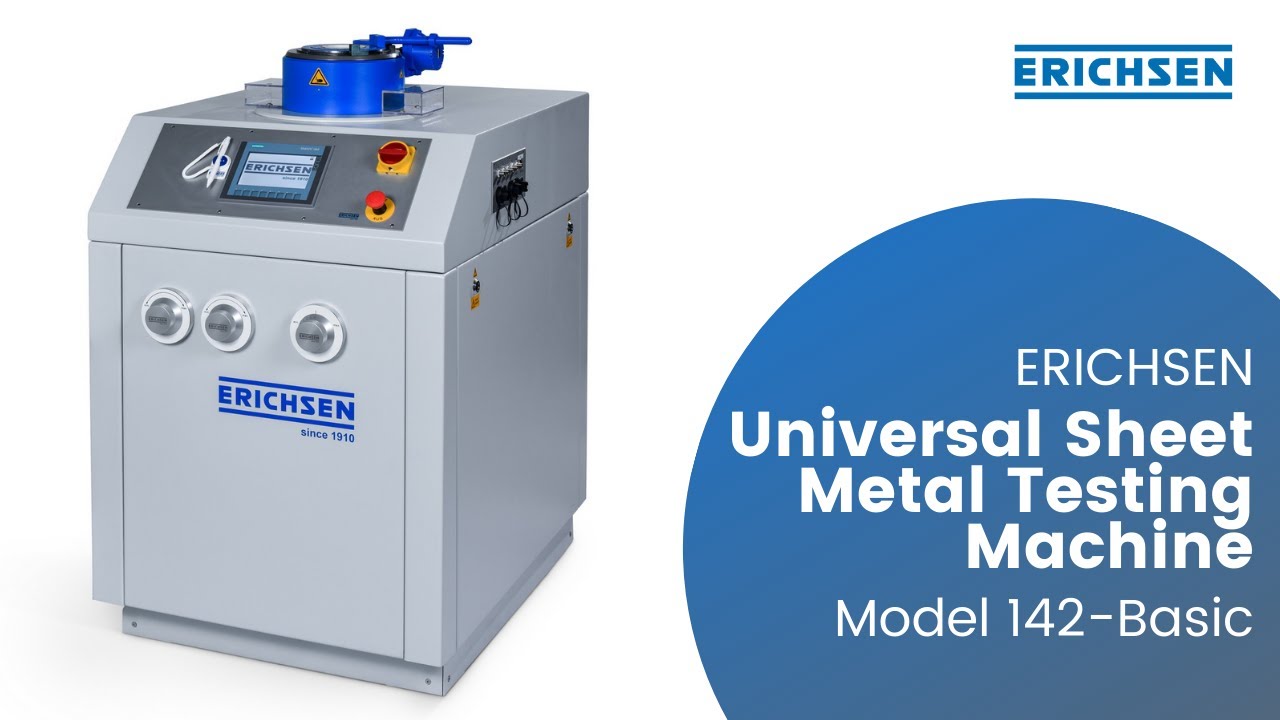

Universal Sheet Metal Testing Machine 142-Basic

Описание: The Model 142 is a universal sheet metal testing machine with automatic test sequences. This machine is used for applications in the fields of the accompanying process control as well as in research and development of new materials.
Infinitely variable control of drawing speed and blank holder force. The Testing Machine is driven electro-hydraulically and allows the following cost saving features:
• Blanking press in the test head
• Hydraulic cup ejector
• Stop at specimen failure


Designed for all important and known deep drawing tests for ferrous and non-ferrous metals for example in accordance with


• ERICHSEN cupping test EN ISO 20482, NF A 03-602, ASTM 643-09, JIS Z-2247, DIN ISO 1520, etc.
• ERICHSEN deep drawing test DIN EN 1669, ISO 11531, JIS Z 2249, etc.
• Square Cup Test (40 x 40mm), FLC-Test, Bulge-Test, lubricant test, hot drawing up to 550 °C


Additional Control Functions are available like data evaluation system and PC, Camera System HEXRASCAN for rupture detection (hole expansion).


Performing tests effortlessly and accurately.
