Advanced Sheet Metal Testing Solutions: Hole Expansion Tests with HEXRASCAN I & II

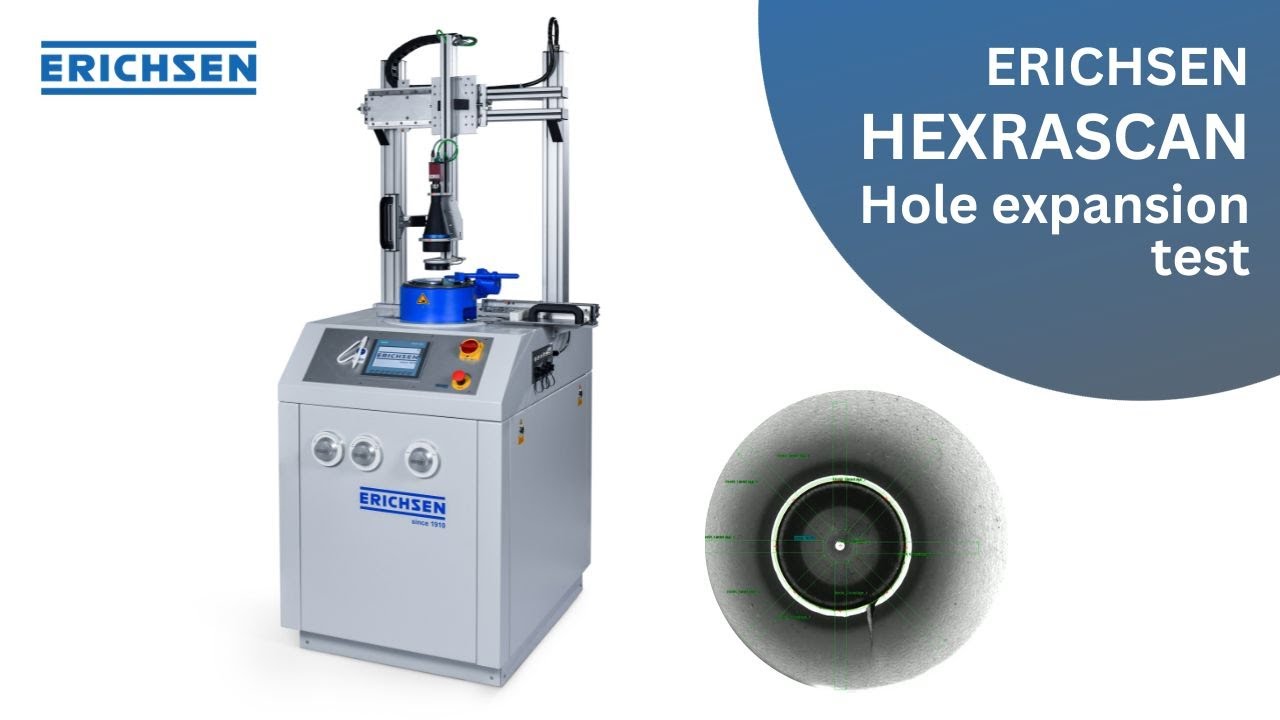

Описание: HEXRASCAN I – for rupture detection according to ISO 16630 "hole expansion test". Automatic rupture detection without operator influence. Automatic machine stop at rupture detection. Hole expansion ratio will be calculated. Images will be archived. Can be retrofitted to existing machines The system consists of a camera with traversing bar and lighting. An appropriate recording and analysis software is included. Required, but not included is a PC (system requirements to be discussed with us)

HEXRASCAN II – for strain measurement on flat sheet metal specimen, e.g. PV 1054. Automatic strain detection. Automatic machine stop when reaching the predetermined elongation. Images will be archived. Can be retrofitted to existing machines. The system consists of a camera with traversing bar and illumination. An appropriate recording and analysis software is included. Required, but not included is a PC (system requirements to be discussed with us)

Timestamps:
Overview: 00:00
Inserting sheet metal via opt. drawer: 00:07
Setting up drawing program: 00:14
Hole cutting procedure: 00:18
Prepared sheet metal for hole expansion test: 00:33
Hole expansion test – Set up: 00:45
Hole expansion test – Touchpanel: 00:57
Hole expansion test – Machine view (locking and clamping sheet metal): 01:19
Hole expansion test – Software crack detection: 01:29
Hole expansion test – Tested sheet metal: 01:54
Endcard: 02:10
