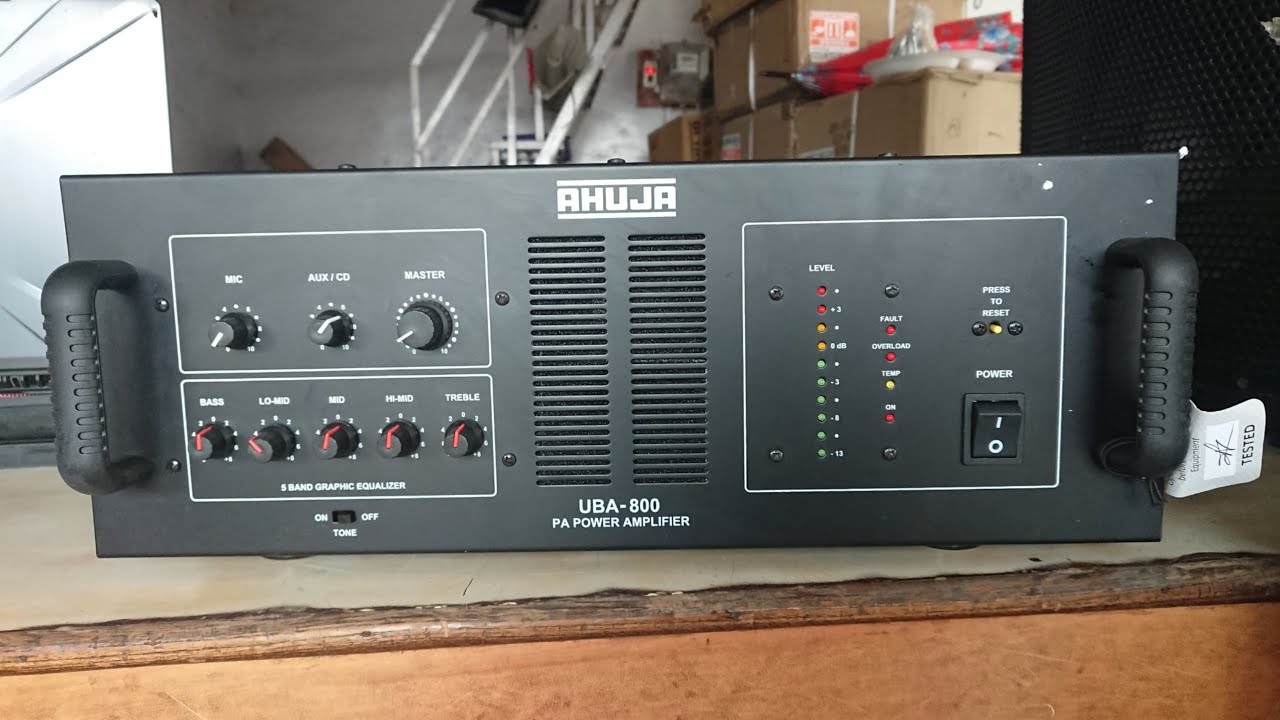

AHUJA UBA-800 POWER AMPLIFIER UNBOXING & REVIEW

Описание: UBA-800
800 WATTS
DJ & PA POWER AMPLIFIER

Designed for use in a wide variety of PA applications and DJ performances.
UBA-800 is a 800 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
The amplifier includes an built-in 5 Band Graphic Equalizer with tone ON/OFF switch which enables precise and accurate tonal setting of the programme.
Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit.
The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset.
Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided.
2Ω speaker matching provided in addition to 4 & 8Ω.



SPECIFICATIONS


1150W RMS Max., 800W RMS at 10%THD, 770W RMS at 5% THD 725W RMS at 2% THD

Output Regulation

≤ 2dB, no load to full load at 1kHz

Input Channels

1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 10kΩ

Frequency Response

50Hz–18,000Hz ±3dB

Signal to Noise Ratio

60dB

Tone Controls

Bass (100Hz) : ± 8dB, Lo-Mid (315Hz) : ± 8dB, Mid (1kHz) : ± 8dB, Hi-Mid (3.1kHz) : ± 8dB, Treble (10kHz) : ± 8dB

Line Output

1V/1kΩ

Speaker Output

2Ω, 4Ω & 8Ω

Power Supply

AC: 220-240V 50/60Hz

Protections

2 × 25 Amp fuse in ± DC supply 8 Amp circuit breaker in AC mains, Protected against high AC mains voltage, overload & temperature

Power Consumption

1500 VA

Dimensions

W482 × H186 × D530 mm

Weight

32.0kg
