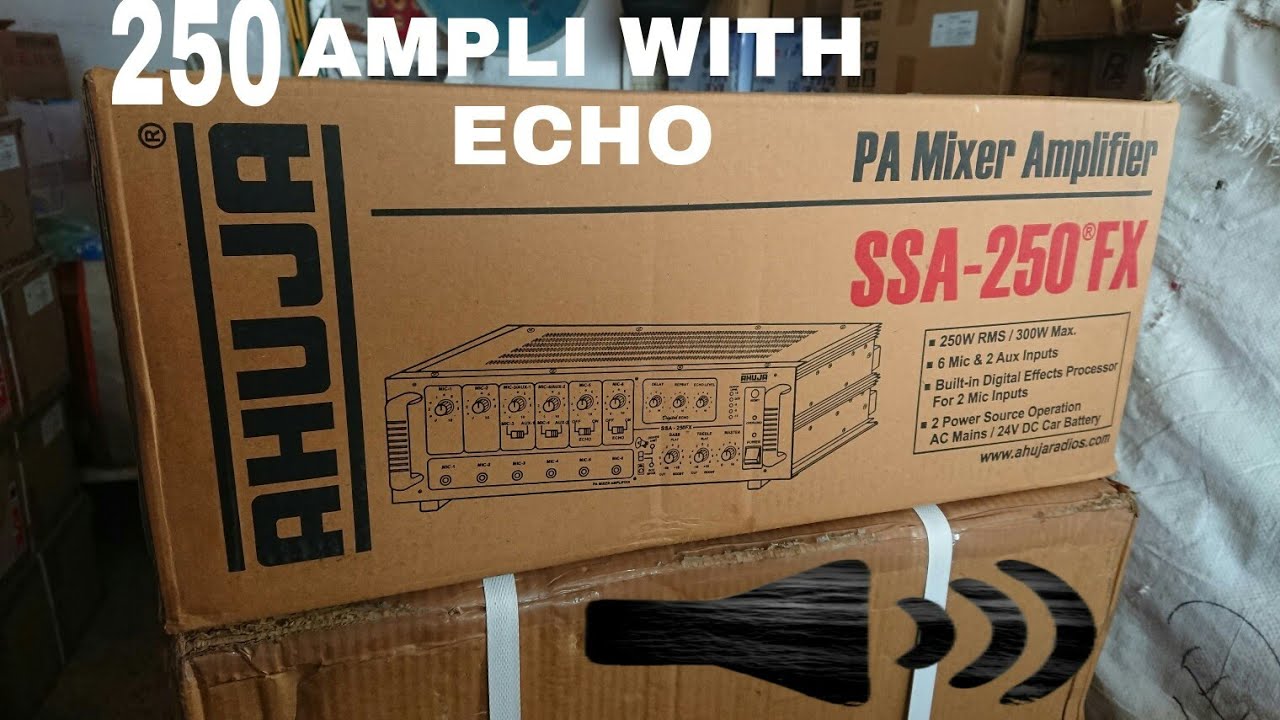

AHUJA SSA-250®FX UNBOXING & REVIEW

Описание: 250 WATTS

High Wattage PA Mixer Amplifier


6 Mic & 2 Aux Inputs.

Built-in digital effect processor for 2 Mic Inputs.

Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.

Line Input for connecting the output from any external mixer or permitting SSA-250®M to be used as a Booster Power Amplifier.

Resettable circuit breaker for protection against overload and short circuit. Instant transfer to DC power (Car Battery) if AC power fails.

Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.




SPECIFICATIONS


Power Output


300W Max., 250W RMS at 10% THD 220W RMS at 5% THD, 200W RMS at 2% THD


Output Regulation


≤ 2 dB, no load to full load at 1kHz


Input Channels


6×Mic 0.65mV/4.7kΩ, 2×Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ


Delay System


Digital Signal Processing


Delay Range Setting


60-300ms


Frequency Response


50-15,000Hz ±3dB


Signal to Noise Ratio


60dB


Tone Controls


Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz


Outputs


Preamp 200mV/600Ω, Line 1V/1kΩ


Speaker Outputs


4Ω, 8Ω, 70V & 100V


Power Supply


AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)


Power Consumption


AC: 460VA DC: 6A


Dimensions


W450 × H160 × D340 mm


Weight


15.70kg



LITERATURE:http://ahujaradios.com/Document/315-S...
