Car battery Solar panel update analog ammeter
Автор: CNC Tinker - Practical Electronics & DIY Projects
Загружено: 2024-09-04
Просмотров: 66
Описание:
First part here: • How to Charge car battery with a solar panel
Parts:
10W solar panel: https://s.click.aliexpress.com/e/_ooj...
Rubber silicone edge for panel - get the 10x6mm ( I got the 7x4mm and it doesn't fit well ) - https://www.aliexpress.com/item/10050...
Solar charge controller: https://s.click.aliexpress.com/e/_oFv...
Voltage meter: https://s.click.aliexpress.com/e/_oDG...
Analog ammeter 0-300mA - https://s.click.aliexpress.com/e/_omf...
Watt meter: https://s.click.aliexpress.com/e/_oC9... - I don't recommend this anymore as it uses too much power, but its nice to have for testing.
I added an analog ammeter as the digital one tended to consume quite a bit of power during the night cause it had an always on led display and it used around 10ma.

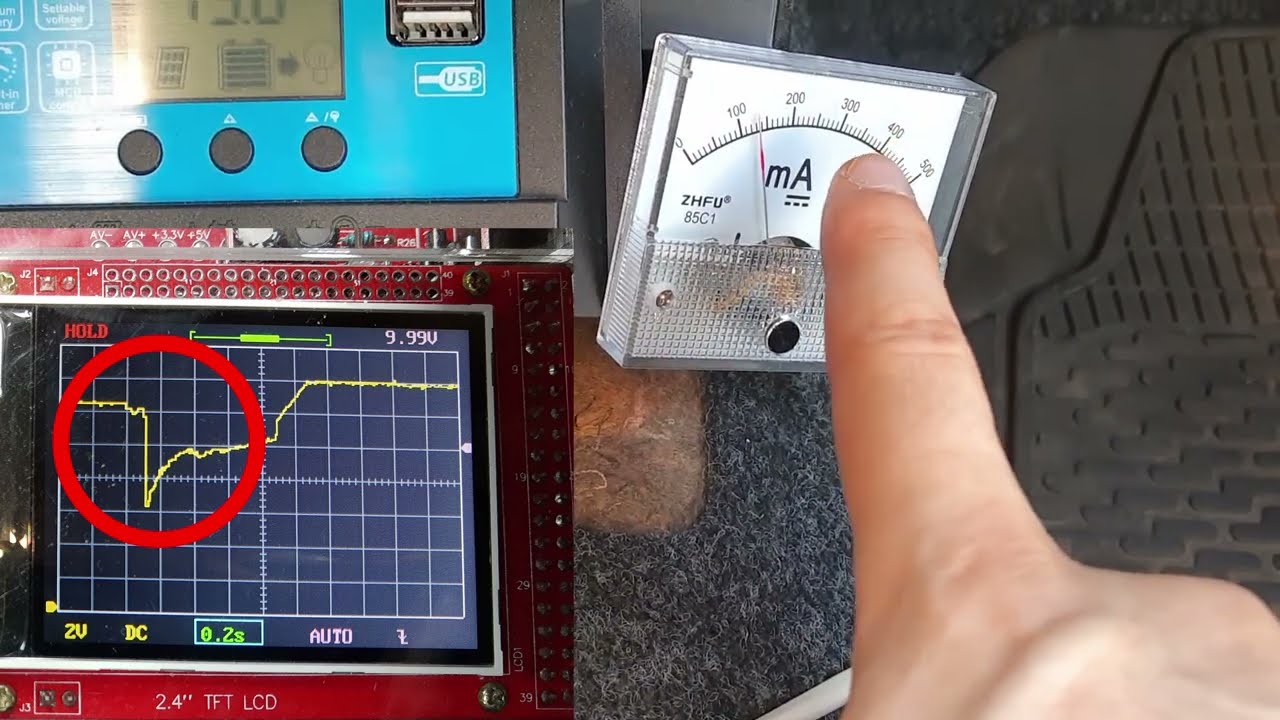

I am showing the voltage when you start the car on the digital osciloscope DSO138 in paralel with the analog ammeter that is measuring the pushing current from the solar panel into the battery.
