Verifying the Accuracy of Elcometer 130 Salt Contamination Meters using Elcometer Calibration Tiles

Описание: Whether you are using an Elcometer 130 Salt Contamination Meter, or the Elcometer 130 Soluble Salt Profiler, each Elcometer 130 gauge is factory calibrated and ready to use, straight out of the box.

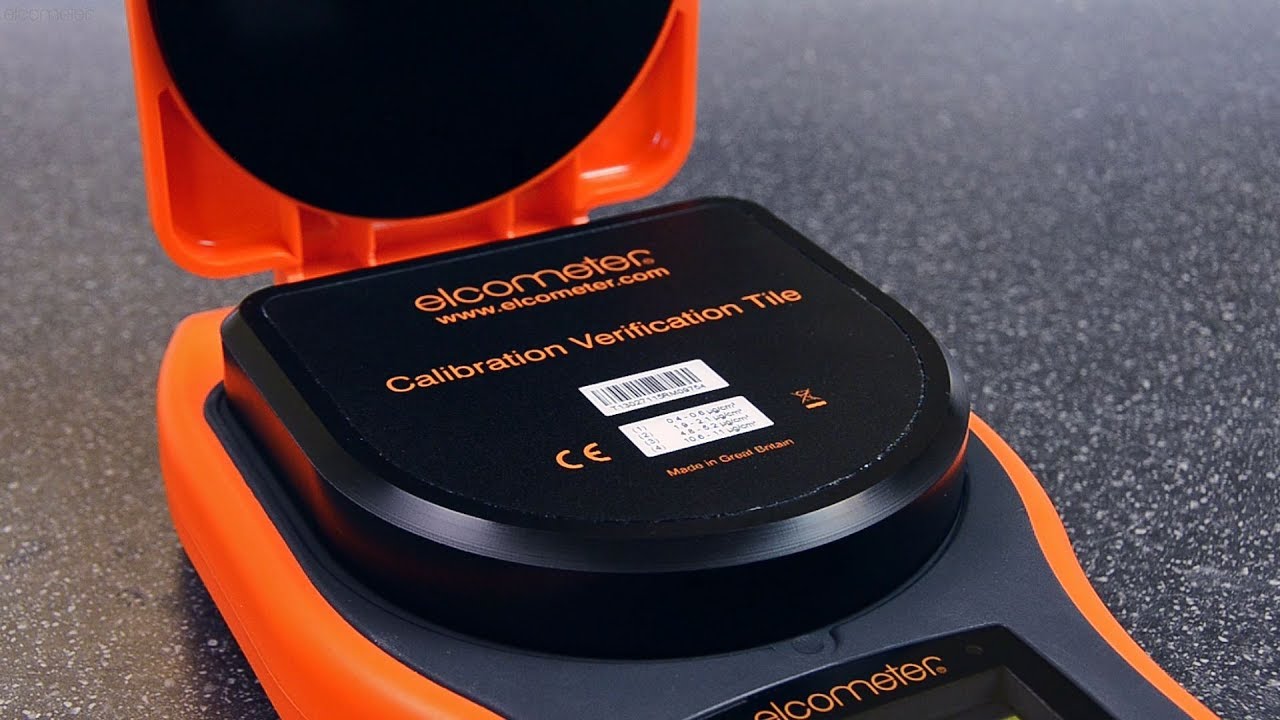

The Elcometer 130’s Calibration Verification Tiles allow you to quickly verify the accuracy of your Elcometer 130 anytime and anywhere.

The Elcometer Calibration Verification Tiles are used to check each gauge’s measurement electrodes by accurately simulating known salt concentrations. So, by comparing the results on the gauge with the values on the tile, you can quickly and accurately confirm that your Elcometer 130 is working within specification.

CONTENTS

0:39 Introducing the Elcometer Calibration Verification Tiles
2:20 Verifying the Elcometer 130
3:15 Verifying the Elcometer 130 SSP

As the Elcometer 130 and Elcometer 130 SSP have different measurement plates, there are two different versions of the Calibration Verification Tiles.

The Elcometer 130 requires three different Calibration Verification Tiles of different values, and it is recommended that all three tile values are used to confirm the Elcometer 130’s accuracy.

However the Elcometer 130 SSP has a single tile, which allows the user to verify each gauge’s accuracy across its measurement range.

Before you begin any verification procedure, you must first remove any test paper, magnetic disks, or calibration tiles from the test plate, and then carefully clean and dry the sensors using the deionised water and the sensor wipes provided.

For more information on the Elcometer 130 SSP Soluble Salt Profiler, contact Elcometer at [email protected] or visit our website at http://www.elcometer.com/en/coating-i...

----

Click here to download the video script in English: https://www.elcometer.com/pub/media/P...

-----

ELCOMETER 130 STANDARDS:

SSPC Guide 15

ELCOMETER 130 SSP STANDARDS:

NSI 009-32, SSPC Guide 15, Bresle Equivalent ISO 8502-9 Test Method
