I PEX CABLINE CA IIP PLUS Paddle Card Technology

Описание: Paddle Card Technology
Offers high signal integrity by using a paddle card in the cable plug. Data rates and cross talk performance of existing CABLINE® series products are optimized even further.
・Shortening ground path improves cross talk resonance
・Paddle card enables larger wire for better insertion loss
・Variety of cable options and combination
・This cable assembly mates to CABLINE®-CA II PLUS receptacle(20790-060E-01/02): (https://bit.ly/4lB1gY3)

Technical page for paddle card: White paper Paddle Card Technology
(https://bit.ly/40p1HMD)

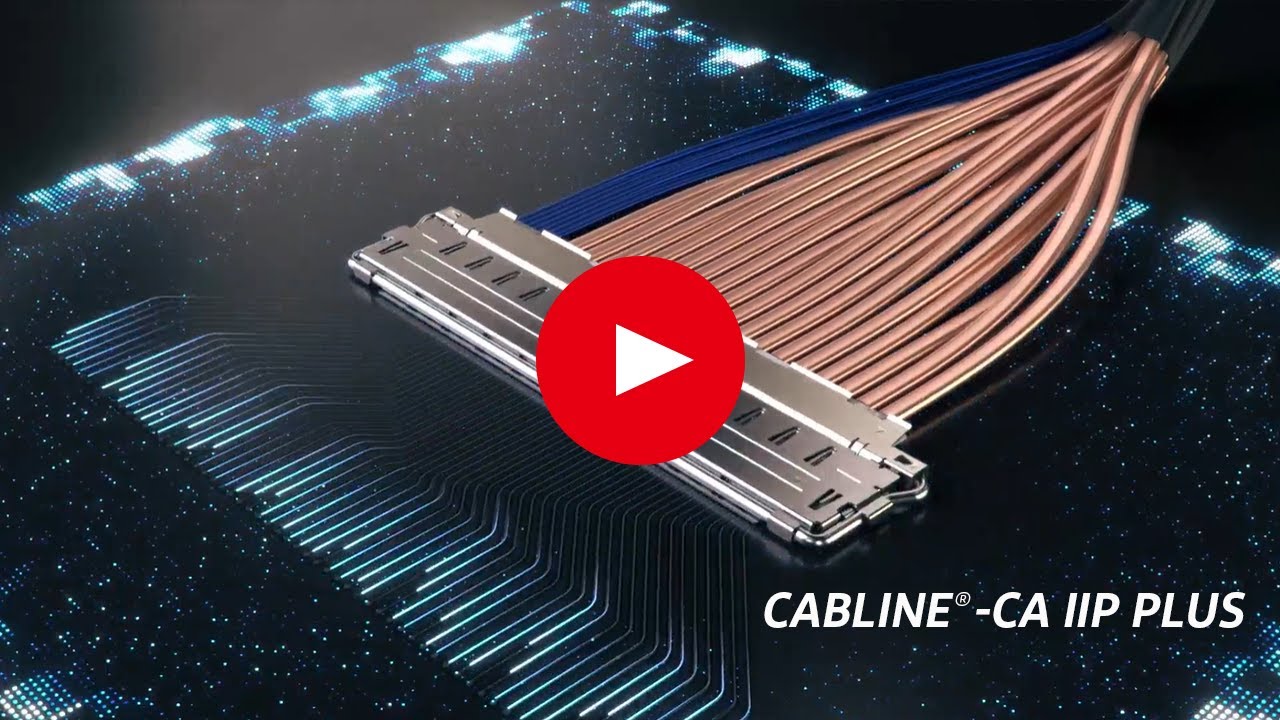

CABLINE® -CA IIP PLUS
Fully-shielded, 64 Gbps/lane PAM4,0.4 mm pitch, horizontal mating type twinaxial & micro-coaxial cable assembly
・Supports high-speed transmission 64 Gbps/lane PAM4 using paddle card technology
・AWG#34 Twinax cable is used for long-distance transmission. Also supports AWG#36 & #38 micro-coaxial cable for routing flexibility
・Low profile with a mated height of 1.14mm, ideal for space-constrained applications, fully-shielded with ZenShield® technology

Go to product page to download datasheets: CABLINE® -CA IIP PLUS (https://bit.ly/4lBAG13)


I-PEX Micro-Coaxial Connectors product series lineup.
(https://www.i-pex.com/product/micro-c...)
For inquiries, please fill out the Contact Us form on our website. (https://www.i-pex.com/contact_E)


CABLINE®-CA IIP PLUS

フルシールド、高速伝送対応(64Gbps/lane PAM4)、0.4mmピッチ 水平嵌合タイプ、TwinaxialおよびMicro-coaxialケーブルアッセンブリ
・パドルカード技術を用いた高速伝送 64Gbps/lane PAM4
・Twinaxial#34ケーブルで長距離伝送をサポート
ケーブル柔軟性があるMicro-coaxial#38,36ケーブルにて配線が容易
・低背H=1.14 mm、360度フルシールドによるEMC対策と多点グランド接点のデザイン
