How to pressure test a refrigerator sealed system using nitrogen

Описание: In this video we share how to pressure test a refrigerator sealed system to find leaks using nitrogen.

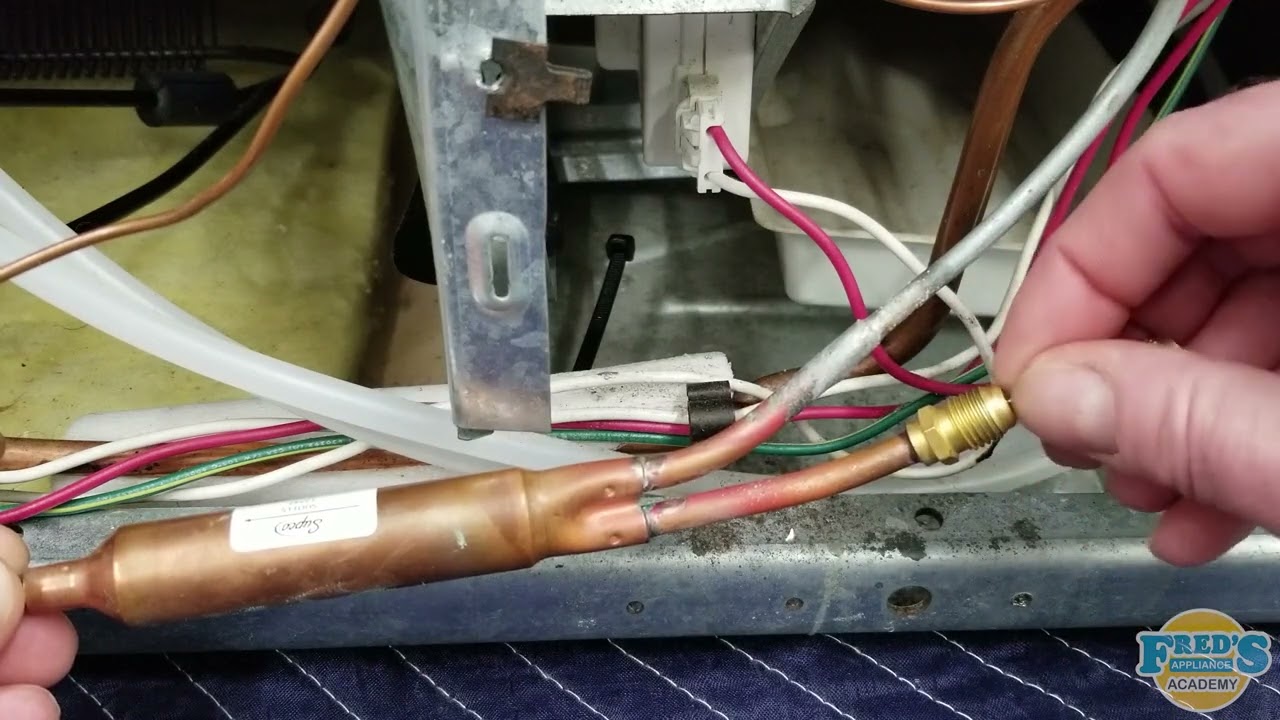

First, begin by attaching your service hose to the process stub on the compressor. Next, attach the service hose to the regulator on your nitrogen tank. Next, turn your nitrogen tank on and you can see in this tank here we have about 1,000 PSI. A brand new tank should have about 2,000. Deliver nitrogen to the refrigerator by turning the T-handle to the right until you reach about 100 PSI. Turning the handle to the left will decrease pressure or turn it off.

With nitrogen now pressurizing the system, check all of your joints for leaks. As we can see here, we have a fairly large leak on our suction line and it can easily be heard. This is not always the case. And on smaller leaks, sometimes bubble testing is required. Here I have the nitrogen turned down to just a few PSI at most. And while you can still hear the wisping noise when I put the applicator on it, it's nowhere near as loud as it was before. And as nitrogen is leaving the system and the pressure is further decreasing, you can see that the bubbles become smaller and smaller. The smaller the leak, the smaller the bubbles you will have.

Please keep in mind when bubble testing that the system should always be pressurized: one, to prevent the solution from being drawn into your sealed system, and two, you won't see bubbles.
