Car air conditioner refrigerant refill. Freon charging in air conditioner.

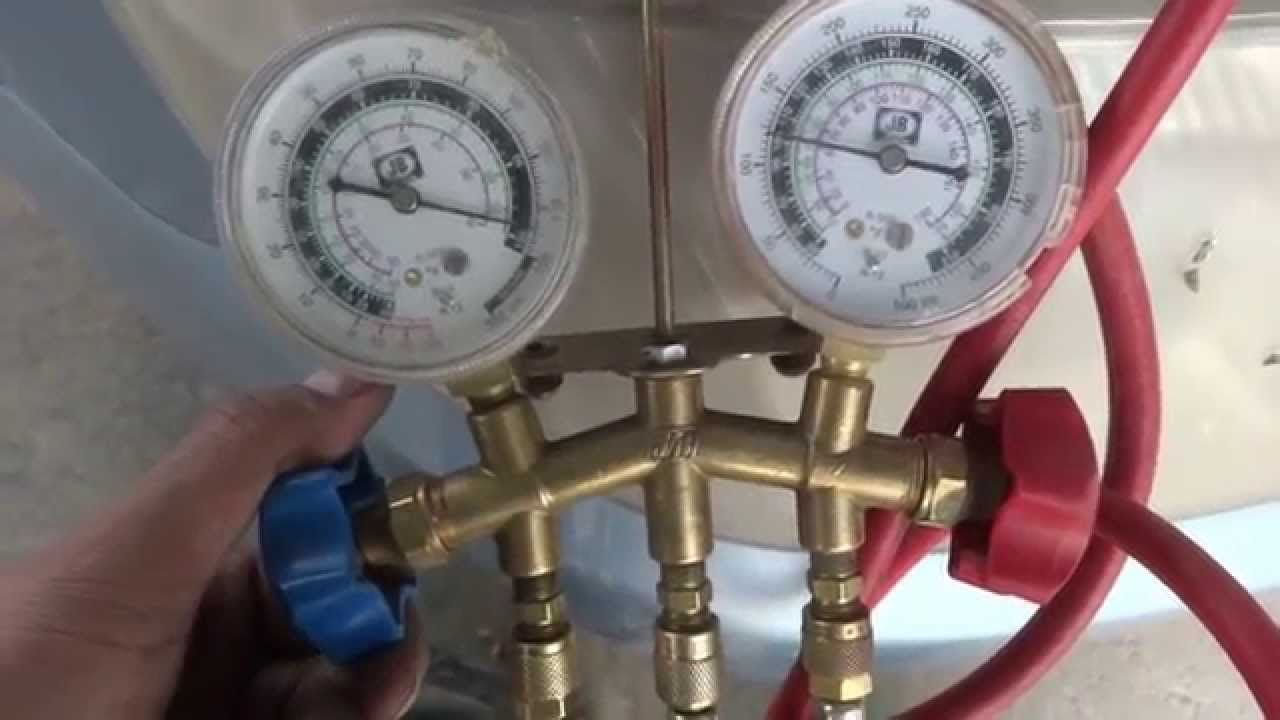

Описание: Air conditioner charging is a very common and necessary repair in almost all automotive in almost all parts of the world. Car air conditioner is breaking down regardless of the car make and model. Almost every car experiencing air conditioner failure several times in its service life. The air conditioner is the unit in a car which is eating up a lot of money from a car owner. Never ever original air condition is lasting for the life time of a car. You will need a set of manifold gauges to check you Freon pressure.

Here are some general guideline for A/C system pressures and temperatures based on ambient outside temperature. Remember that these are a guideline and your actual temperatures and pressures will vary depending on humidity in the air and the condition of your system. When running the car at idle to check the freon level it is a good idea to have a water hose handy and spray water on the a/c condencer. The condencer is located in front of the radiator.

For vehicles currently running with freon R-134a only

You can also use this good rule of thumb with R134a, run fan on High with all windows open and engine at 1500 rpm. High side pressure in PSI should be about 2.2 to 2.5 times outside air temperature in degrees F. Example if it's 90 degrees F, high side should be no higher than 225PSI


Here is a useful trouble shooting chart for systems currently running on freon R-134a

Trouble shooting

Low Compressor Discharge Pressure
1. Leak in system 2. Defective expansion valve 3. Suction valve closed 4. Freon shortage 5. Plugged receiver drier 6. Compressor suction valve leaking 7. Bad reed valves in compressor

Repair
1. Repair leak in system 2. Replace valve 3. Open valve 4. Add freon 5. Replace drier 6. Replace valve 7. Replace reed valves

High Compressor Discharge Pressure
1. Air in system 2. Clogged condenser 3. Discharge valve closed 4. Overcharged system 5. Insufficient condenser air 6. Loose fan belt 7. Condenser not centered on fan or too far from radiator

Repair
1. Recharge system 2. Clean condenser 3. Open valve 4. Remove some refrigerant 5. Install large fan 6. Tighten fan belt 7. Center and check distance

Low Suction Pressure
1. Refrigerant shortage 2. Worn compressor piston 3. Compressor head gasket leaking 4. Kinked or flattened hose 5. Compressor suction valve leaking 6. Moisture in system 7. Trash in expansion valve or screen

Repair
1. Add refrigerant 2. Replace compressor 3. Replace head gasket 4. Replace hose 5. Change valve plate 6. Replace drier 7. Replace drier

High Suction Pressure
1. Loose expansion valve 2. Overcharged system 3. Expansion valve stuck open 4. Compressor reed valves 5. Leaking head gasket on compressor

Repair
1. Tighten valve 2. Remove some refrigerant 3. Replace expansion valve 4. Replace reed valves 5. Replace head gasket

Compressor Not Working
1. Broken belt 2. Broken clutch wire or no 12v power 3. Broken compressor piston 4. Bad thermostat 5. Bad clutch coil 6. Low Refrigerant - low pressure switch has cut off clutch power

Repair
1. Replace belt 2. Repair wire or check for power 3. Replace compressor 4. Replace thermostat 5. Replace clutch coil 6. Add refrigerant

Evaporator Not Cooling
1. Frozen coil, switch set too high 2. Drive belt slipping 3. Hot air leaks into car 4. Plugged receiver drier 5. Capillary tube broken 6. Shortage of refrigerant 7. High head pressure 8. Low suction pressure 9. High suction pressure 10. Defective expansion valve 11. Frozen expansion valve

Repair
1. Turn thermostat switch back 2. Tighten belt 3. Check for holes or open vents4. Replace drier 5. Replace expansion valve 6. Add refrigerant 7. See problem #2 8. See problem #3 9. See problem #4 10. Replace expansion valve 11. Evacuate and replace drier

Frozen Evaporator Coil
1. Faulty thermostat 2. Thermostat not set properly 3. Insufficient evaporator air

Repair
1. Replace thermostat 2. Set to driving condition 3. Check for excessive duct hose length, kink or bend.

If you can't get your a/c to turn on then use this chart to determine if you are low on freon. Remember that this is a general char and will vary for different makes and model cars and refrigeration units.
