Configuring Closed-Loop Power Control on the SMW200A
Автор: Rohde & Schwarz
Загружено: 2025-01-22
Просмотров: 852
Описание:
This video uses an SMW200A to demonstrate how to configure and use closed loop power control on Rohde & Schwarz analog and vector signal generators.
Learn more about Rohde & Schwarz Signal Generators: http://rsna.us/6056ohYlg
Download the Whitepaper on Using Rohde & Schwarz Power Sensors with Signal Generators: http://rsna.us/6057ohYl9
Download the Whitepaper on Using S-Parameters with the R&S NRP-Z Power Sensors: http://rsna.us/6058ohYli
Timeline:
00:00 Introduction
00:16 Presentation outline
00:49 Introduction
01:37 Obtaining stable and accurate target power
02:36 About closed loop power control

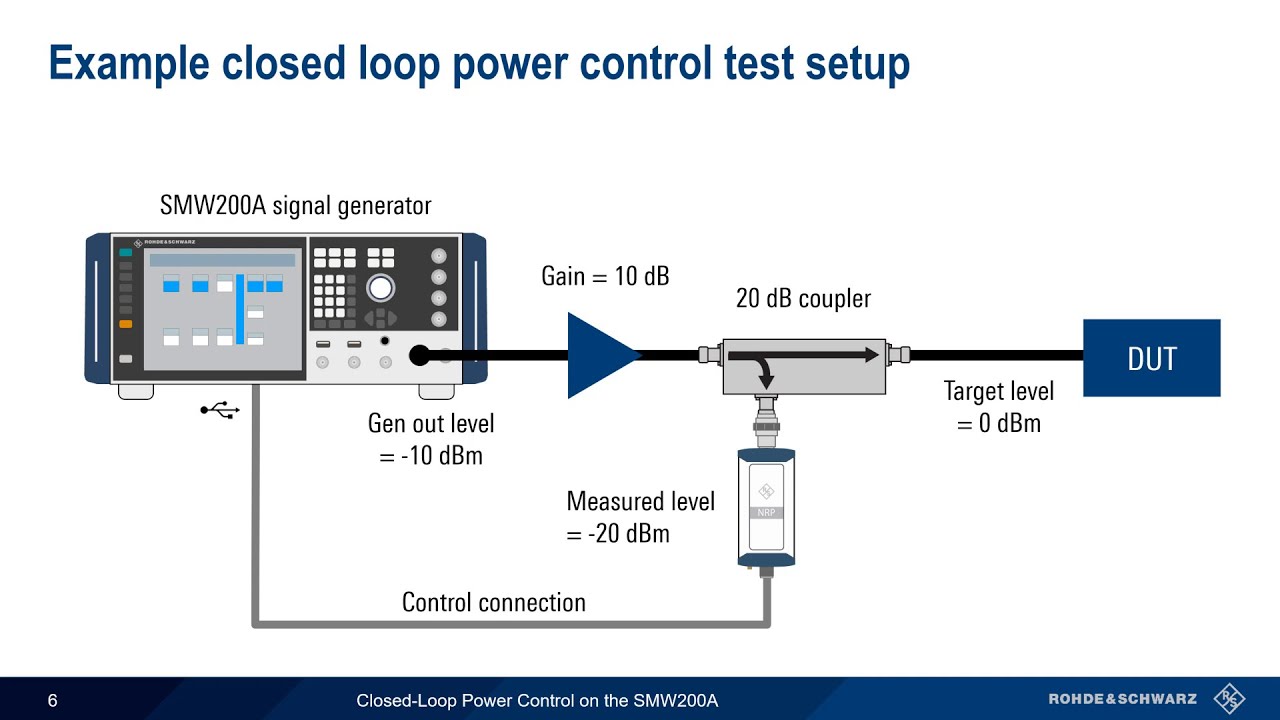

03:20 Example closed loop power control test setup
05:16 Starting power control configuration
05:40 Selecting the sensor
06:15 Measured level and target level
06:48 State and mode
07:17 Directional coupler and S-parameters
08:15 Example: measurement without coupler S-parameters
09:29 Example: measurement with coupler S-parameters
10:23 Power cycle update time / delay time
11:08 Catch range and RF amplitude limit
11:57 Summary
