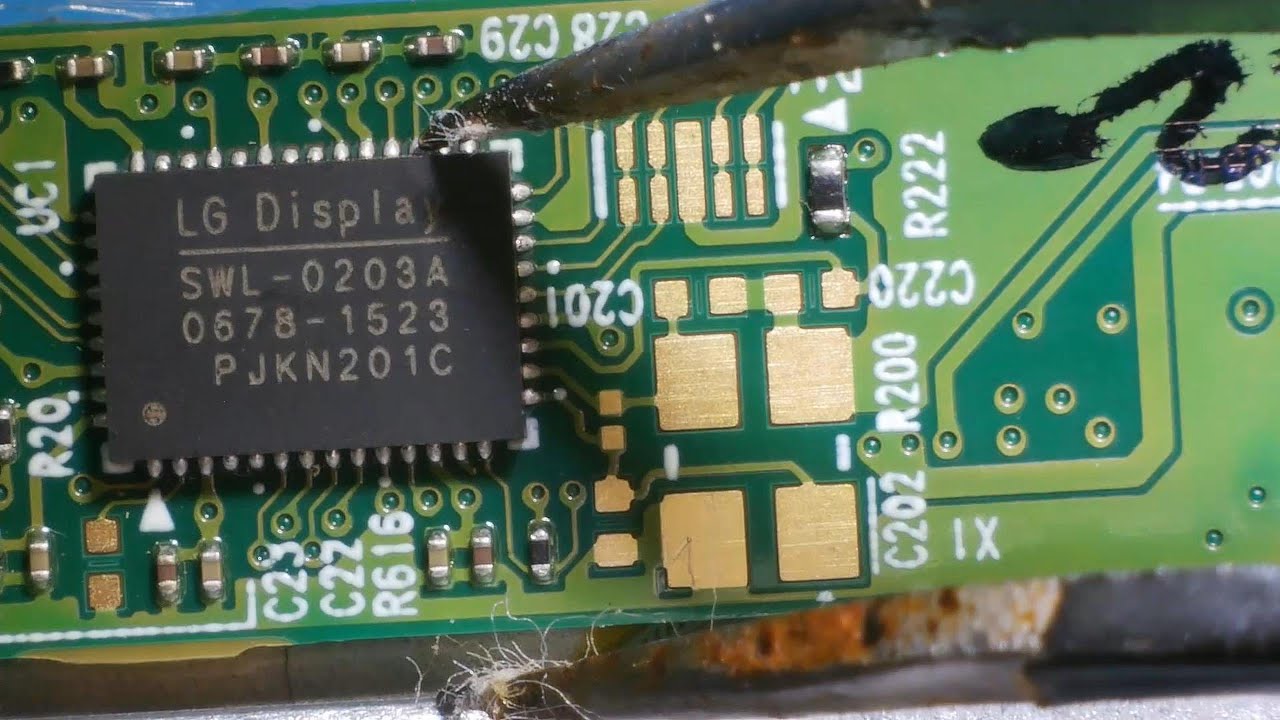

Fixing a Dell Laptop with No Backlight---- Dell latitude E7450

Описание: 🛠️ Repairing a Dell latitude E7450 Laptop with No Backlight: A Step-by-Step Overview

When a Dell laptop screen is working but appears dim or completely dark (even though you can faintly see images), it's likely a backlight failure. Here's a clear breakdown of how to diagnose and repair it:

🔍 Possible Causes
Faulty inverter(for older LCD models)
Malfunctioning backlight (LEDs or CCFL tube)
Damaged LCD cable or connector
Defective motherboard or GPU
Power issues related to firmware or BIOS

🧰 Tools You’ll Need
Small Phillips screwdriver set (for opening the casing)
Plastic spudger or pry tool (to avoid damaging the casing)
Multimeter (for voltage testing)
Flashlight (to test visibility on dark screen)
Replacement parts: LCD screen, inverter board, LED strip—depending on the diagnosis
ESD strap (to ground yourself and prevent electrostatic damage)

🧠 Skills Required
Basic electronics knowledge: understanding how to test voltage and continuity
Safe disassembly of laptop parts and routing cables
Identifying components and checking part numbers for replacements
Familiarity with laptop firmware updates (BIOS/UEFI)

🔧 Repair Steps
1. Visual Inspection
Use a flashlight to shine on the screen—if you can faintly see the desktop, the backlight is indeed the issue.

2. Check Brightness Settings / BIOS
Ensure the screen brightness isn’t set low and reset BIOS to default—sometimes power settings can interfere.

3. Test the Inverter / LED Power Circuit
Use a multimeter to check output voltage to the backlight.
If no voltage is detected, the inverter or motherboard may be faulty.

4. Open the Laptop Carefully
Remove battery and power supply.
Unscrew and pry open the bezel around the display.
Access the inverter (if applicable) or LED strip.

5. Replace Faulty Components
Swap out the inverter or backlight LEDs.
In some cases, replacing the entire screen assembly might be faster and more reliable.

6. Reassemble and Test
Carefully reconnect all cables.
Power on the laptop and check for restored brightness.

🧡 Doing this kind of repair is satisfying, but requires patience.
