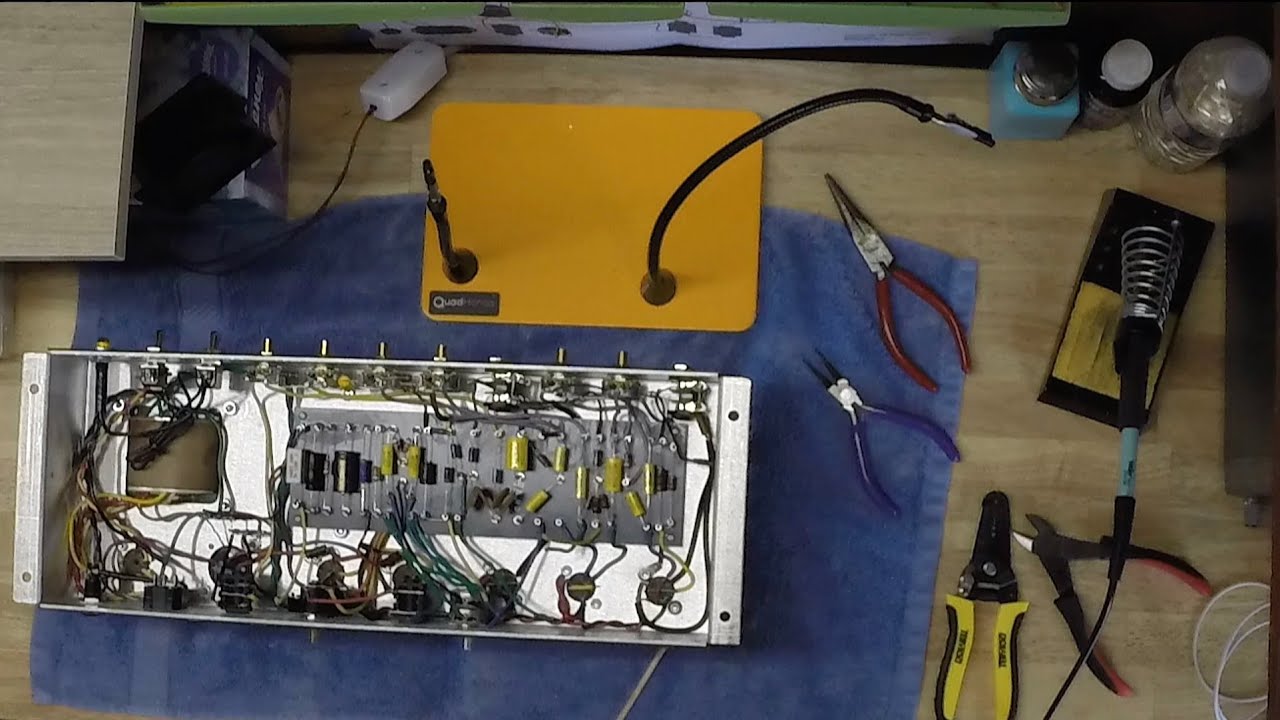

Mojotone British 18w Amp Build: Timelapse
Автор: Carmel Tones
Загружено: 2020-08-15
Просмотров: 21327
Описание:
Complete timelapse of my 1st guitar amp kit build, with subtitles and narration describing the entire process. This amp is a reproduction of an original Marshall 1974x Handwired w/ a Master Volume mod + a few upgrades and changes to match the original circuit as closely as possible.
Table of Contents:
Intro (00:12)
Mounting Chassis in Head Cabinet (00:48).
Mounting Transformers (01:29)
Installing Tube Sockets, Faceplates and Jacks (02:28)
Installing Power Section Ground Lugs (03:59)
Wiring Tube Sockets (04:27)
Wiring Transformer/Power Section (08:40)
Wiring Tremolo Pots, F/S and Output Jacks (12:54)
Wiring Signal Bus and Input Jacks (14:36)
Prepping and wiring turret board (17:20)
Finish wiring input jacks (19:29)
Installing Isolation Grommets for V1, finish wiring sockets (21:36)
Installing turret board components (23:45)
Cutting and soldering "Flying Wires" to turret board (26:59)
Final wiring of turret board to jacks/pots (30:42)
Wiring PPIMV (Master Volume) (33:07)
Measuring and Testing (33:26)
Mounting Finished Amp into Head Cabinet (35:22)
