LC79 Coffee truck with Safiery Integrated Display: Victron, Garmin head unit & Digital Switching

Описание: LC79 with Safiery Integrated Display: Garmin, Victron, & Digital Switching

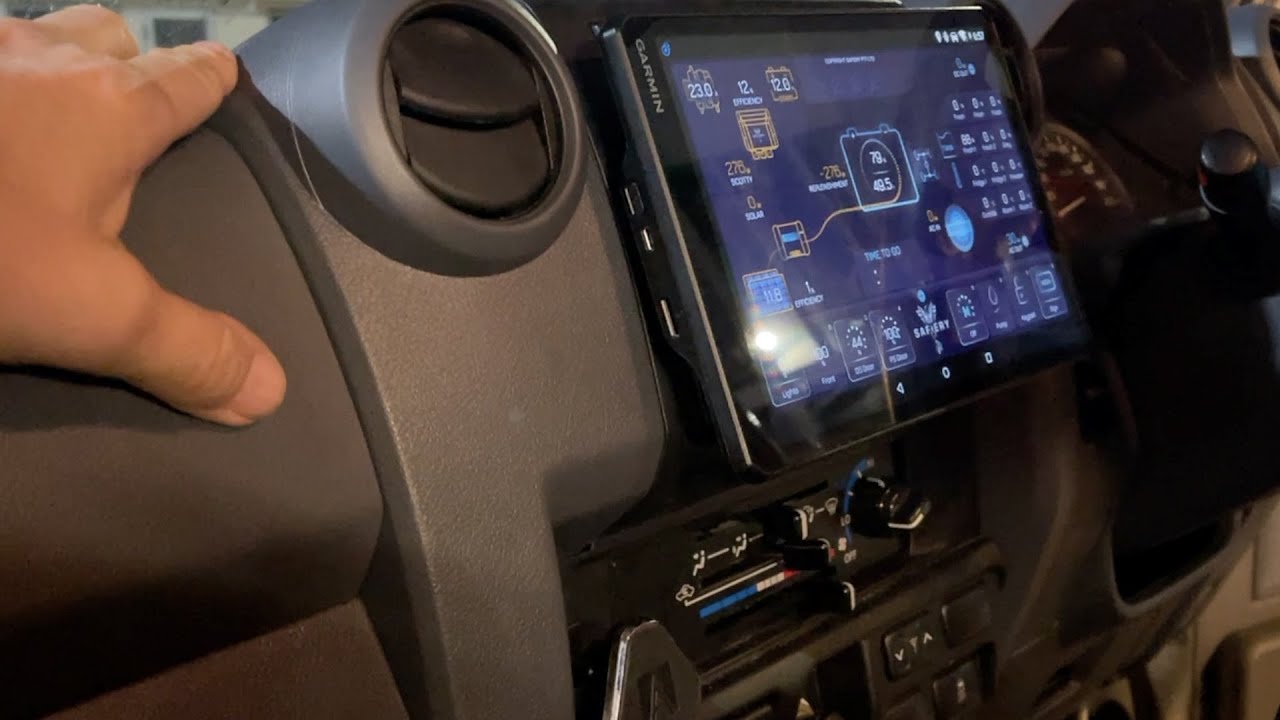

Meet Rochelle and Caleb Moore of “The Good Brew” “coffee on the beech” for the Northern beaches of Sydney. Follow Rochelle @thegoodbrew.co and try the coffee plus see the final fit out. It will look completely different inside. I wont give away any of the exciting details. In this video we walk through the integrated system. The coffee machine pulls 4430W continuous, easily matched with the 6000VA Inverter/Charger and the 12000W of solar on top. This is 800Ah Lithium (12V equivalent) charged up to 3,000W from Scotty and the vehicle’s upgraded 250A alternator. The Safiery Integrated Display sits on top of the Garmin Vieo Head Unit. This is Multi-function: Navigation, HEMA, Campgrounds, Fusion Sound, Victron Energy integration, Digital Switching, Tyre Pressure monitoring, and airbag control with the Inclinometer: Pitch and Roll. This system will automate airbag control to the correct flat level pitch!
The Safiery Integrated Display captures ALL the data from Victron using CANbus. This is NOT an NMEA output connection. This is a proprietary Safiery interface. All in the same Integrated Display BUT the functions are in separate devices so there is no single point of failure.
Safiery Integrated Removable Display Includes:
Garmin Navigation with accurate GPS
Garmin "Where to" Map Database
Hema Maps
Camping Grounds
Dump Stations
Reversing camera Input + 3 other Camera Inputs
10 inch High resolution Display (take to the fire & use)
Magnet second mounting pad for Display
Fusion Multi-media System (Bluetooth streaming & Airplay)
4 Channel Fusion Speaker Ready system (speakers extra)
Digital Switching of 20 outputs - no fuses needed 10A a channel
Combine channels for greater than 10A - up to 40A
Software Licence (perpetual) for the following when Victron system purchased at the same time:
Victron Connected Devices shown: needs a Cerbo GX (extra)
Smart Solar, Multiplus inverter chargers, Smart Shunt (all extra)
Displays CANbus reading Scotty with Alternator temperature
Displays CANbus reading 12V or 24V Lithium Batteries directly
Tyre Pressure Monitoring up to 12 Tyres of pressure and temperature (TPMS is extra)
Inclinometer and Airbag control (Items extra)
Solar irradiation sensor ready (shows when panels need cleaning)
IP Camera Ready (up to 8)
Up to 8 tanks ready through Victron System
Up to 8 temperatures (combo may need CAN based Temp Sensors)
