Kearney & Trecker 3CH 10 HP Horizontal Mill ~ USA Made Univ Tbl. & Tooling / PTO demo & 16" Rotary

Описание: MACHINERY CONSULTANTS INC
BILL WILSON JR in UTAH
1390 W. 200 S. Salt Lake City, UT 84104
Ph: 801-531-9500 Fx: 801-531-9555
Em: [email protected]
www.machineryconsultants.com

Kearney & Trecker 3CH 10 HP Horizontal Mill ~ USA Made Universal Table & Tooling & acc.s w/PTO demo

We are pleased to offer, subject to prior sale and our conditions of sale, the following for your consideration:

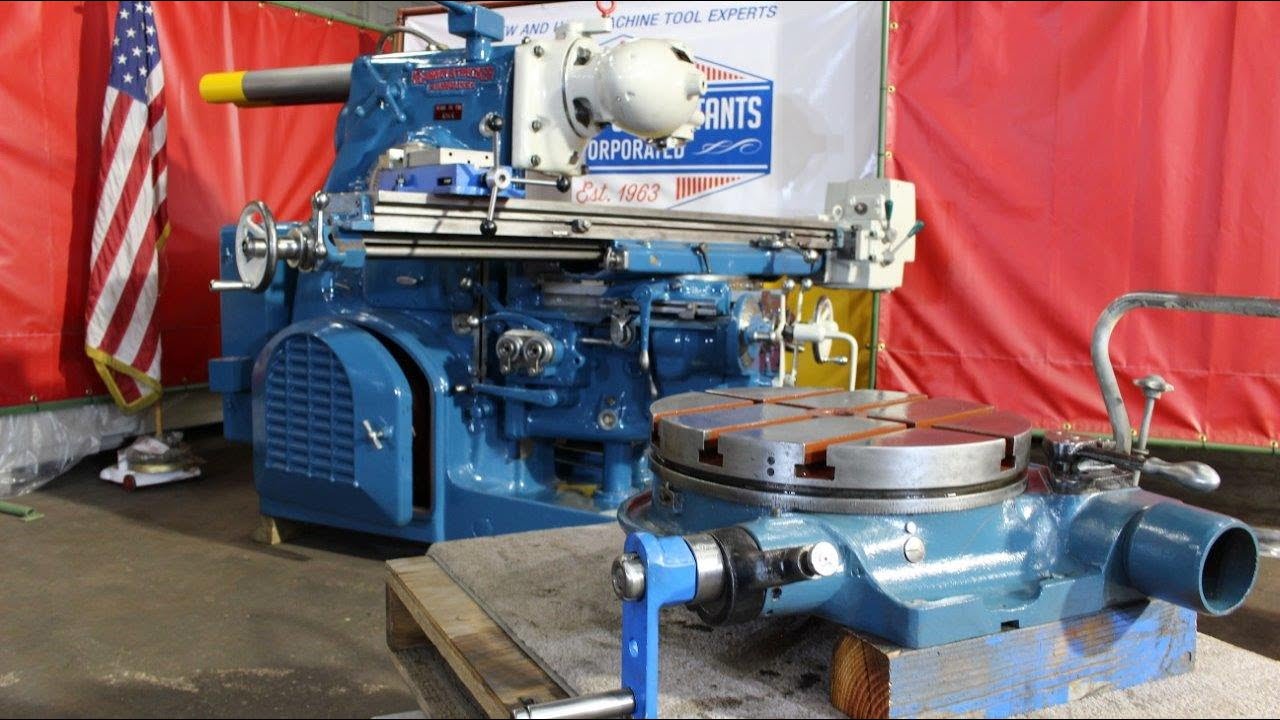

Used Kearney & Trecker 3CH 10 HP Horizontal Mill ~ USA Made
Universal Table * / Heavy Pattern Milling machine
Model is the K & T, 3CH, 10 HP, Serial No. 44 – 6809

General Specifications, Approximate: (All-Original OEM-Machine in Limited Use)
Table working surface 13.5” x 64” to 67.5" Left to Right
Longitudinal travel 35”
Cross travel 12”
Knee travel 18”
Spindle speeds (24) 15 to 1500 rpm
Taper in spindle # 50 Morse Taper
Feeds (32) 3/8 to 90 ipm
Main motor hp 10 H.P.
Approximate weight 8,500 # lbs.
Dimensions 80” L x 80” W x 67” H

Complete With:
~ note of the Table tee slots, All dials in super clean Original Fresh
~ POWER Take off " PTO" mounted, OEM from K & T Factory, New unused condition when viewing Gearbox, castings, entire unit is Mint
3 way power rapid traverse and power feeds
Arbor support bracket ~ Arbor #50 NST ~ a few ( 2 each) tool holders for #50 NST
Coolant pump, Spigot Nozzle & Hose
Arbors-Overarms-2 each Tubes: OEM Size of 4 ¼” Dia. ( New in the wrapper-Mint )
Kurt machine Vise with Kurt Vise Handle & mounting bolts for Tee-slotted table

Condition:
very fine Milling/boring/ tapping/ Universal style Drill-Milling machine, From Long Term Storage, all gone thru & checked out here
See Flaking on cross slide & Knee – Column,
The table area & all saddle & cross ways in Superb Original Condition ~ Mint ~
machines been all Tested here & runs great, New Belts, all electricals USA Made,
Machine was recently released from long time Standby storage, satellite facility

Bill Wilson Jr. / Machinery Consultants Inc
1390 West 200 South / Salt Lake City, UTAH 84104
Office Ph: 801-531-9500
E mail: [email protected] website www.machineryconsultants.com

FOB POINT: SLC Utah, free-loading
Loaded onto trailer on-site here
(we assist to put softeners & A light coating of red-spray grease on metal surfaces)
