Visual: C# OMRON PLC ( PLC NX1P2 9024DT COMUNICATION WINFORM C# MODBUS TCP/IP)

Описание: VISUAL : WINFORM C# COMMUNICATION MODBUS TCP/IP OMRON
CONFIG PLC OMRON NX1P2 9024DT ( MODBUS SLAVE)
HARDWARE PLC :- PLC OMRON NX1P2-9024DT VESION 1.40
NX-series EtherCAT Terminal Coupler NX-ECC201(Remote I/O for EtherCAT):
Digital Outputs:NX-OD5121 (16 OUT,NPN 24 VDC, 0.5 A/point)
Digital Outputs:NX-OD4256 (8 OUT,NPN 24 VDC, 0.5 A/point)
Digital Inputs:NX-ID5342 (16 Inputs, Standard speed, NPN 24 VDC)
Digital Inputs:NX-ID5442 (16 Inputs, Standard speed, PNP 24 VDC)
High-speed digital:I/O terminalGX-ID1611 + OD16:
+SOFTWARE : * SYSMAC STUDIO VESION 1.47
CREATE PROJECT MODBUS SLAVE
SET IP 192.168.0.1.
PORT 502
ADD TEXT TAG VARIBLE CONTROL MODUL PLC AND MODUL I/O ETHERCAT
CREATE ADD SECTION CONTROL I/O PLC AND MODUL ETHERCAT
ADD LIBRARY

CREATE PROJECT WINFORM C# (MODBUS CLIENT)
CREATE PROJECT WINFORM
CREATE GROUP_BOX DATA CONNECT MODBUS TCP

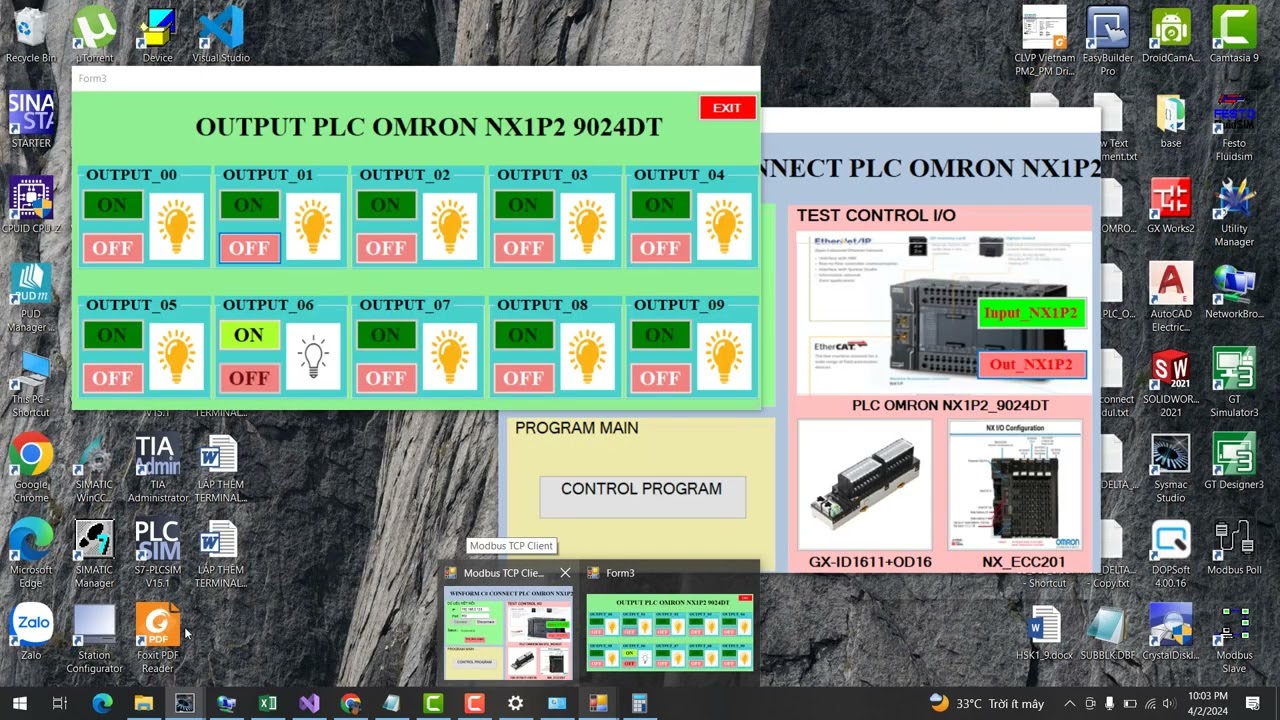

CREATE SCREEN COMMAND BASIC MODBUS( READ HOLDING REGISTER,READ COIL,READ DIGITAL,WRITE HOLDING,WRITE COIL
CREATE SCREEN CONTROL INPUT/OUTPUT PLC NX1P2 CONTROL TEST MODBUS RESGISTER
CREATE SCREEN CONTROL TEST MODBUS MODUL NX_ECC201:
MODUL OUTPUT OD5121 OUTPUT NPN HOLDING RESGISTER[15] 16 OUTPUT
MODUL OUTPUT OD4256 OUTPUT PNP HOLDING RESGISTER[16] 8 OUTPUT
MODUL OUTPUT ID5342 INPUT NPN HOLDING RESGISTER[17] 16 OUTPUT
MODUL OUTPUT ID5442 INPUT PNP HOLDING RESGISTER[18] 16 OUTPUT
CREATE SCREEN CONTROL TEST MODBUS MODUL GX_ID1611 _OD16 ( 16 INPUT AND 16 OUTPUT
+RESGISTER CONTROL INPUT: HOLDING REGISTER[19]
+RESGISTER CONTROL OUTPUT:HOLDING REGISTER[20]



CONFIG SET IP PC: 192.168.0.1.
OK TEST
