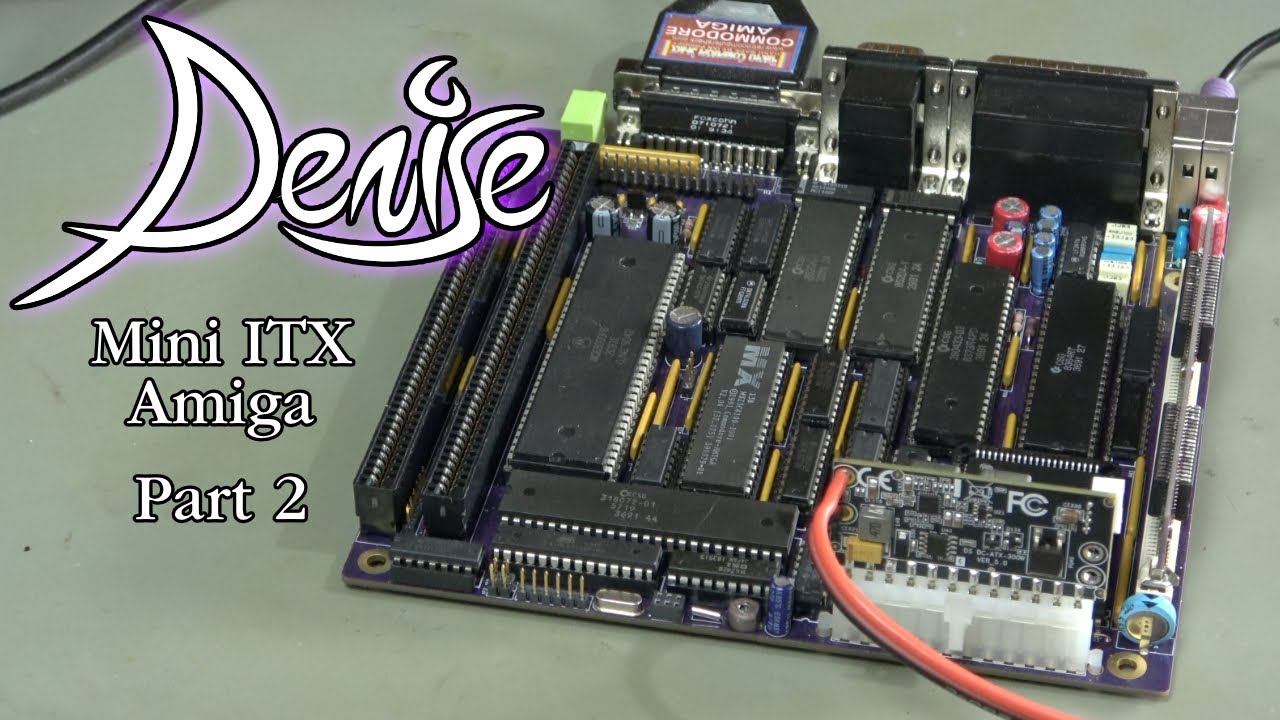

Episode 93: Denise (Mini ITX Amiga) Part 2

Описание: Kindly sponsored by my favourite $5 PCB fab, PCBWay https://pcbway.com/g/3DeAat ($5 off your first purchase)
Continuing the build of my Mini ITX Amiga board... (part 1 here:    • Episode 89: Denise (Amiga ITX) Part 1   )

As well as being one of the original Amiga trifecta of custom chips, Denise is a Swedish project to create an Amiga 500+ replacement in a small, Mini ITX form factor. It has two Zorro II slots, a 72 pin SIMM for the 2M Chip RAM, supports PS/2 keyboard & mouse, and runs from a standard ATX power connector.

Hack Build Restore can be found at / @hackbuildrestore
Check out his Denise build, and subscribe to his channel.

If you're interested in this project, you can find the details on the project's web site: https://www.enterlogic.se/?page_id=180
PCBs can be ordered from Tindie: https://www.tindie.com/products/enter...
or Flamelily: https://shop.flamelily.co.uk/denise

Please subscribe to the channel to keep informed and click the bell to be notified for part 3.

My ebay store: https://www.ebay.co.uk/usr/timsretro

Check out these channels:
8-Bit Retro Refix: / @8BitRetroReFix
Captain Commodore: / @CaptainCommodore
Retro4u: / @Retro4u
Josip Retro Bits: / @JosipRetroBits

If you'd like to help support this channel, please check out my Patreon. You can also make a one-off donation or use the channel Super Thanks.
Patreon:   / timsretrocorner
Donate: https://www.paypal.com/donate/?hosted...
Follow me on Mastodon: https://retrorewind.social/@trc
Follow me on BlueSky: https://bsky.app/profile/timsretro.bs...

00:00 - Intro
01:01 - Surface Mount Assembly
02:35 - Sponsor
03:48 - The very Fast SMD Soldering Montage (™)
05:00 - Memories Are Made Of…
10:44 - Through Hole
20:00 - Chips
20:38 - Magic Smoke
24:44 - Add Some Ports
27:57 - Serial Output
29:04 - New RAM
30:35 - Mobo Problem?
