90 Degree Pop-up Transfer

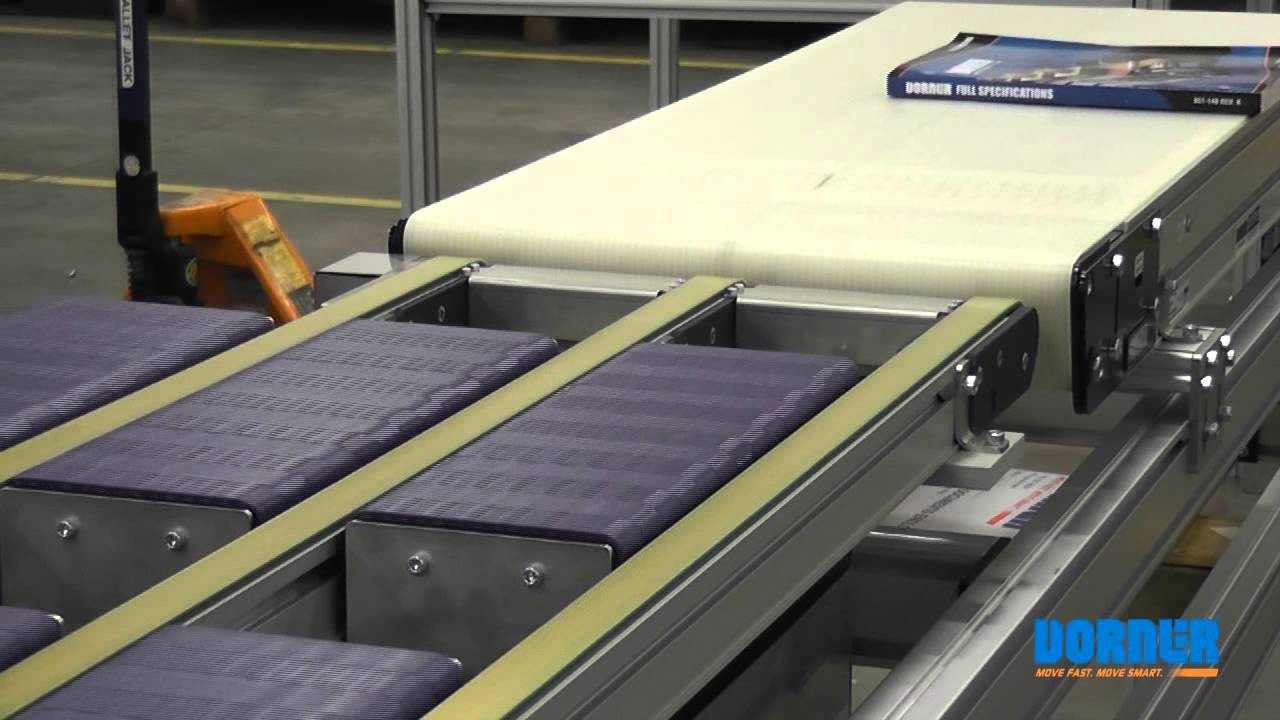

Описание: Engineered Solutions - A 90 degree pop-up transfer uses multiple conveyors moving perpendicularly to each other, changing a product's direction. The transfer shown above was built to handle multiple sizes of reams of paper. This space-saving design changes both the orientation and elevation of the product as it moves down the line.

The lifting of the pop-up transfer accommodates the two different heights of the adjacent equipment. Also, the small footprint of the conveyors effectively addresses the customers space constraints.

The stationary conveyors are custom-made serpentine designs that allow one belt to weave around the three pop-up conveyors. This design means less motors and less drive components. They're equipped with a plastic micro-pitch chain belt designed for tight transfers.

The pop-up conveyors are 2200 Series Precision Move timing belt conveyors. They are gang driven by a single motor to run at the same speed. The elevating mechanism is a pair of guided pneumatic cylinders tuned to lift at the same rate.

See more at: http://www.dornerconveyors.com/News-B...

Learn about Dorner's Engineered Solutions Group - http://www.dornerconveyors.com/Engine...
