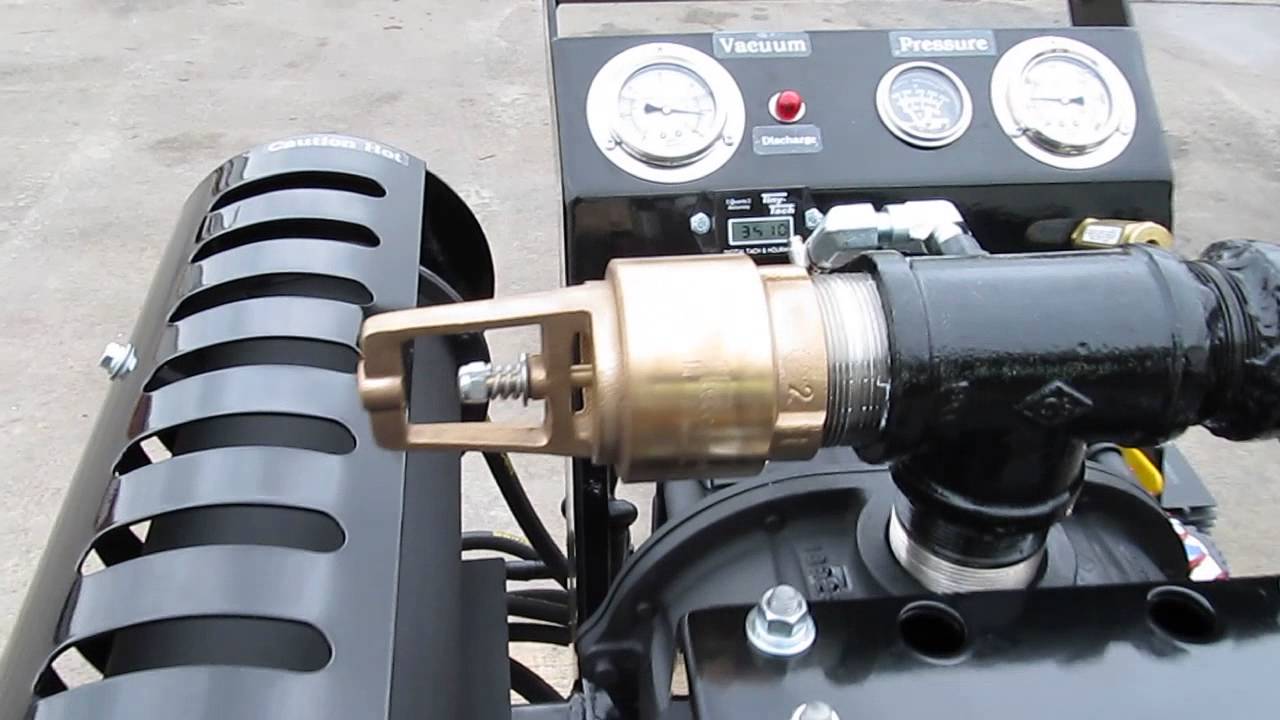

Amtex Equipment, Prowler 14 Hp. Operating Instruction

Описание: See more at http://www.amtexequipment.com
Prowler 14 Hp. Operating Instruction
1. Check Oil level in Engine and pump.
2. Connect Vacuum Hose (Blue Color) to Vacuum Inlet then to wand
3. Connect Pressure Hose to Pressure outlet then to wand
4. Make sure your wand By-pass is in OFF POSITION
5. Connect Garden Hose to Water Inlet (wait until starting to turn water on)
6. Connect Discharge Hose (orange hose) to Pump Out port
7. Make Sure Unit By-Pass Valve is Closed
8. Make Sure You Have Fuel
9. Make Sure Unit's Filter Is Clean
10. If You Are Ready to Start Then Turn Water On
11. Close Choke (Move lever all the way to left)
12. Turn Fuel Valve On (all the way to right)
13. Move Throttle Handle from Rest position slightly to left
14. Ignition and open Choke.
15. Allow unit to run for a minute at low speed to warm up.
16. Increase RPM to desire setting
17. Allow unit to run at high speed to heat up water
18. Go to wand,
19. Open by-pass valve on wand and start feeling for heat
20. Once your wand quick Connect start getting Hot, close By-pass and start cleaning.

Shut off Instruction:
1. Lower RPM
2. Open unit By-pass midway to cool off unit
3. While unit running to cool off Remove unit filter
4. Allow unit to run without filter for two minute (VERY IMPORTANT)
5. While running without filter block air flow to unit with bare hand few times.
6. If this is the last job of the day spray lubricant into suction pipe
7. Shut off unit
8. Move throttle to minimum
9. Move Choke to left
10. Move Fuel valve to left (VERY IMPORTANT)
11. Shut off water
12. Re install clean filter WHILE UNIT IS OFF
13. Disconnect all your hoses.

ALWAYS REMEMBER FASTER YOUR RUN UNIT, HOTTER IT GETS.
