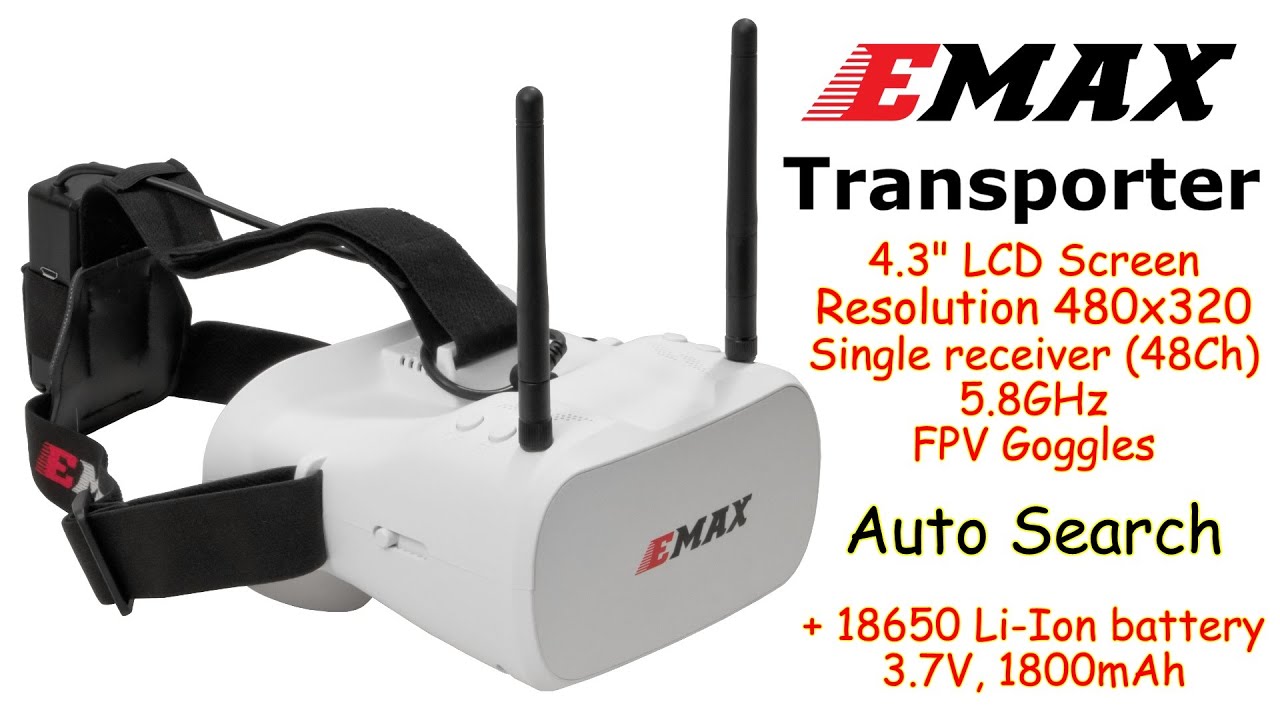

EMAX Transporter 4.3" FPV Goggles, 480x320, 48Ch, 5.8GHz, Auto Scan, 18650 battery

Описание: EMAX Transporter / Tinyhawk: http://bit.ly/38LDP8L
Other EMAX products: http://bit.ly/2TRC71a

EMAX Transporter 4.3" FPV Goggles, 480x320, 48Ch, 5.8GHz, Auto Scan, 18650 battery
EMAX Transporter / Tinyhawk: http://bit.ly/38LDP8L
Other EMAX products: http://bit.ly/2TRC71a

Additional electronics which I use in this video:
Eachine E013 Plus: http://bit.ly/2IWLZRS
   • Eachine E013 Plus micro FPV RC Quadcopter ...
EMAX Interceptor (EAT03): http://bit.ly/38C1RTy
   • EMAX Interceptor (EAT03) 2.4GHz, 2Ch, 2WD,...
Eachine TX05: https://goo.gl/Md3VCz
   • Eachine TX05 (4-IN-1) 5.8Ghz, 72Ch, OSD, u...
AKK K31 FPV transmitter: https://goo.gl/H9wSrx
   • AKK KC02 5.8GHz, 40Ch, 600mW - FPV Transmi...
Eachine E119: http://bit.ly/325DLyr
   • Eachine E119 2.4GHz, 4Ch, 6 Axis Gyro, Fly...
AKK A1-OSD: https://goo.gl/kGvbHJ
   • AKK A1-OSD (4-IN-1) 5.8Ghz, 48Ch, 25mW - V...

Also you can choose other RC products:
Helicopters:
http://goo.gl/wfO3xr
Copters:
http://goo.gl/NfQ7XC
Airplanes:
http://goo.gl/lVEKFI
Cars:
http://goo.gl/Y7j680
Boats:
http://goo.gl/7IOtFL
FPV and etc.:
http://goo.gl/FKfxsi
(All links checked 26 Feb 2020)

Description:
Brand name: Emax
Model: Transporter / Tinyhawk

Features:
Built-in 5.8GHz 48Ch single receiver, compatible with most transmitters on the market. Built-in 480 x 320 resolution 4.3-inch display.
Dual antenna reception. Input voltage: 3.3-6.0V.
Battery Cartridge built-in 5V/1.5A charger.
Eye ring and three point head strap are already preinstalled
Focal distance can be adjusted

Battery Cartridge Introduction:
The battery cartridge comes preinstalled with a 4.2V/1800mAh 18650 battery. If a battery reinstall is required please use caution making sure to install with the correct polarity. The battery can be charged in the cartridge with a micro USB cable. When the battery is charging the indicator light is green. The indicator light will turn red when charging is complete.

Goggle Key operation
1. Menu button – Click to enter the menu. From the menu, you can select the brightness, contrast, saturation, language. The menu will automatically exit after 3 seconds if there’s no input.
2. Auto Scan key – Automatically scan all 48 available video channels for the strongest signal being emitted. If you click the frequency band selection button or the frequency channel selection button during the search, it will lock at the current frequency channel.
3. Frequency band selection button - Under normal circumstances, this button can be used as the frequency band selection button to select the A/B/E/F/R/H frequency bands. After entering the menu, this button acts as the “+” button for the adjustment.
4. Frequency channel button - Under normal circumstances, this button can be used as the frequency channel button to select 1-8 frequency channels. After entering the menu, this button acts as the "-" button for the adjustment.

EMAX Transporter FPV Goggles (frequency table):
A 5865 5845 5825 5805 5785 5765 5745 5725
B 5733 5752 5771 5790 5809 5828 5847 5866
E 5705 5685 5665 5645 5885 5905 5925 5945
H 5362 5399 5436 5473 5510 5547 5584 5621
F 5740 5760 5780 5800 5820 5840 5860 5880
R 5658 5695 5732 5769 5806 5843 5880 5917

Package Included:
1 x EMAX Transporter FPV Goggles
1 x 18650 Li-Ion battery, 3.7V, 1800mAh (in plastic shell)
2 x 2dBi/3dBi Antenna
1 x USB - micro USB cable
1 x Manual
