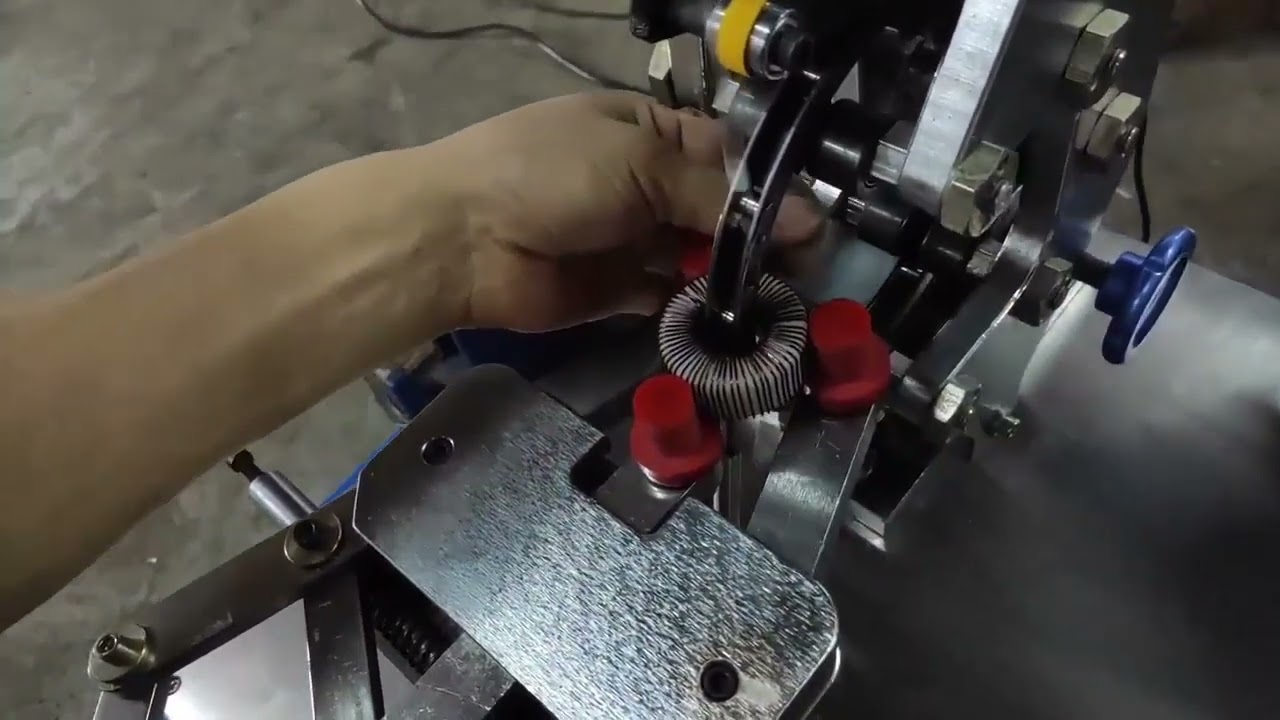

KXLT-650 Belt Type Transformer Core Taping Machine
Автор: KIOXIA Light Ring Coil Winding Machine
Загружено: 2026-01-22
Просмотров: 3
Описание:
Belt Type Transformer Core Taping Machine Specification
Model:KXLT-650
Tape width: 8mm
Max.final coil.O.D: 40-90mm
Min.final coil.I.D: 20mm
Max.finalcoil height: 40mm
Width of magazine: 8mm
Toroid Taping Machine Features
Tape is loaded onto the magazine and cut automatically, and the winding speed of Transformer core Taping Machine increased in order to finish the job in minimum time.
The magazine of automatic tape winding machine may be exchanged in minutes to accommodate different tape widths.
Cable taping machine is controlled by gear set to precisely set the depth of tapping.
Special relay gear design for quick exchanging of pitch setting gears.
To increase the production volume, the main spindle belt is designed to be with lightly weight to reduce heat caused by motor spinning significantly.
Gear Head Automatic Taping Machine Advantages
High accuracy: stepper motor guarantees high accuracy.
The cut surface is flat: the hot knife can heat seal the cut surface of the color ribbon and the light and thin textile belt, and the sealing is smooth and free of burrs.
The blade is made of imported high-quality steel and has a long service life.
Automatic operation: just set the length and number of cuts you need, and the rest of the work is done automatically.
Automatic Taping Machine Application
A high speed automatic coil taping machine for application of insulation tape to wound coils. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.
The coil is placedby an operator on a rotating spindle, and the machine automatically applies the required number of turns of insulation tape, secures the end of the tape with a wiping action, and ejects the coil from the machine.
It's an accurately and reliability digital automatic toroid-taping machine. it is used for wraping the insulation tape on the toroidal core and windings. Automatic Toroid Transformer Coil Taping Machine is designed to operate with a wide variety of insulation tapes, including Kapton, Polyester, PEN, PVC, PPS, and most other woven and non-woven types.
