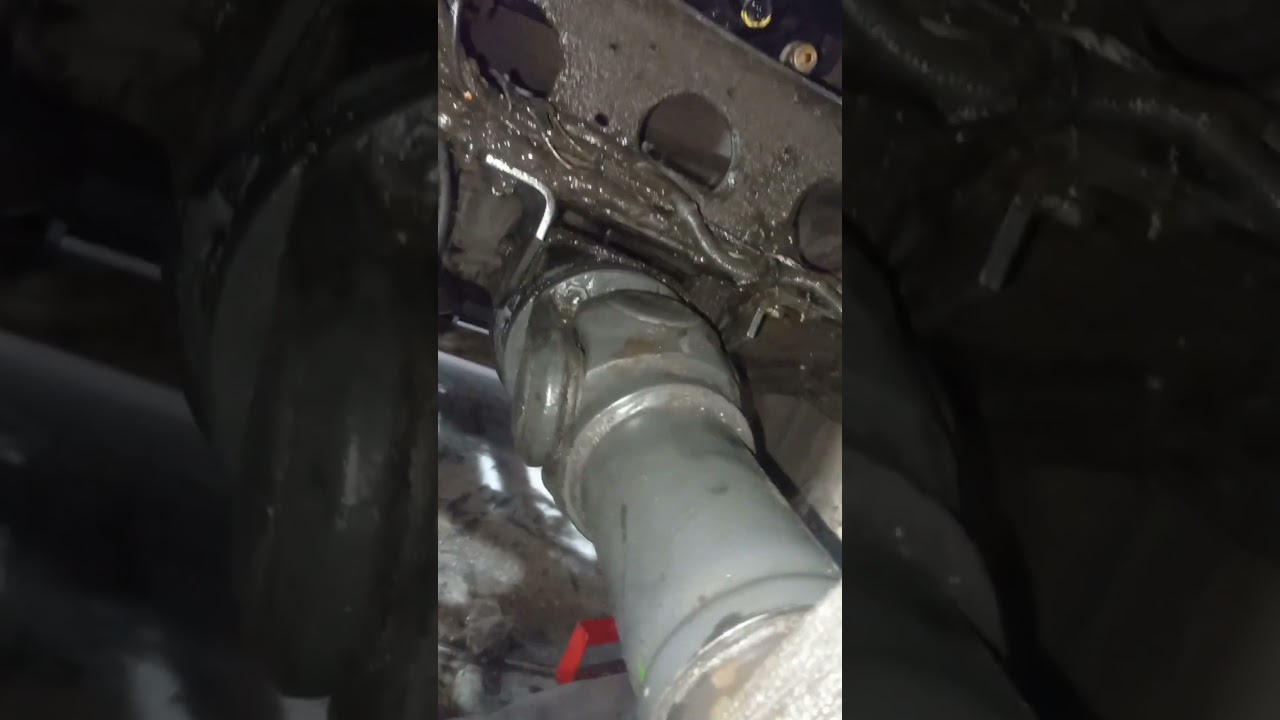

Drive Shaft

Описание: A drive shaft (or driveshaft) is a crucial rotating mechanical component that transmits power, torque, and rotation from the vehicle's transmission to the differential, enabling the wheels to turn and propel the car, commonly found as a long tube in rear-wheel, all-wheel, and four-wheel drive vehicles, using universal joints (U-joints) to allow for movement and angle changes. Made of strong materials like steel or aluminum, it's designed to handle stress and vibration, ensuring smooth power delivery despite suspension movement.
This video explains the basic mechanics of a drive shaft:

0:10


Mechanics Reels
Facebook · Sep 13, 2024
Key Functions
Power Transmission: Transfers rotational energy from the engine (via the transmission) to the wheels.
Flexibility: U-joints at the ends allow it to bend and flex as the suspension moves over bumps.
Vibration Absorption: Balanced construction minimizes vibrations for a smoother ride.
Types & Applications
Propeller Shaft: Often used interchangeably with drive shaft, especially in RWD vehicles where it connects the transmission to the rear differential.
Front Drive Shaft: In AWD/4WD vehicles, transfers power from the transfer case to the front differential.
CV Axle Shaft: Shorter shafts connecting directly from the transmission/differential to the wheel, especially in FWD and independent suspension setups, featuring constant-velocity (CV) joints for extreme angles.
This video demonstrates how drive shafts are used in different vehicle types:

58s


New Mind
YouTube · Mar 23, 2024
Construction
Material: Typically steel, aluminum, or carbon fiber for strength and lightness.
Components: A hollow tube with flanges to connect to other parts, with U-joints for articulation.
In Simple Terms
Think of the drive shaft as the long, spinning rod that connects the engine's power source (transmission) to the wheels, allowing the car to drive, even as the wheels move up and down over uneven roads.
