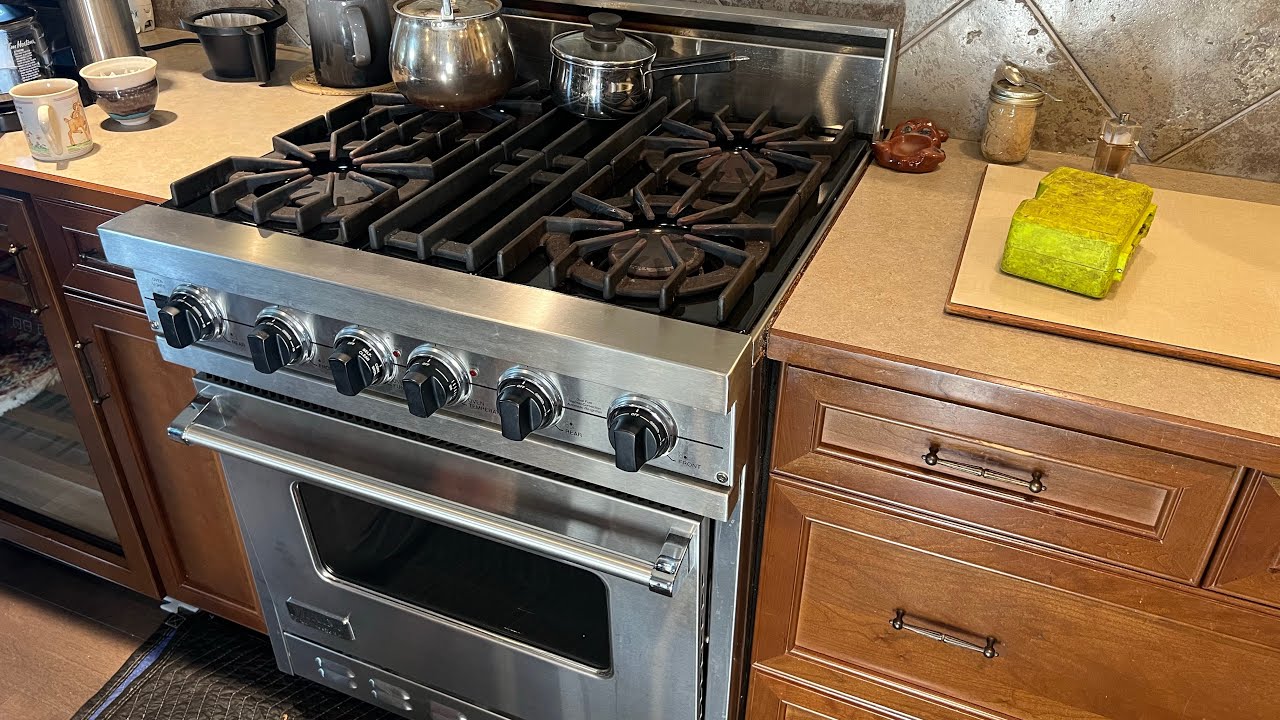

How to replace Viking oven door hinge

Описание: Viking oven door hinge PC020009
Viking oven door hinge vkpc020009

THIS HINGE WILL WORK ON THE LEFT OR RIGHT SIDE

DOOR HINGE REMOVAL
1-Remove door
2-Remove oven racks, rack supports, oven bottom
and inner side wall.
3-Remove two (2) screws securing the hinge cover to
the oven side wall.
4-Open the hinge and lock in the most open position.
5-Remove the lower and upper Phillips head screws
(located behind the oven gasket) securing the hinge
to the front frame.
6-Remove the hinge to the inside of the oven by
pulling through the hinge slot.


Brown in color and has125 pounds of resistance




Models that Have Used This Part
CVDSC305AFTER12-01-06
CVDSC307AFTER12-08-06
CVDSC485-4GAFTER08-11-06
CVDSC485-4GQAFTER08-11-06
CVDSC485-6G
CVDSC485-6QAFTER8-16-06
EVDSC305
EVESC305
EVGIC365
LVDSC305AFTER12-01-06
LVDSC307AFTER12-08-06
LVDSC485-4GAFTER08-11-06
LVDSC485-4GQAFTER08-11-06
LVDSC485-6G
LVDSC485-6Q
SVDSC305AFTER12-01-06
VDSC305
VDSC305 AFTER 12-01-06
VDSC305AFTER12-01-06
VDSC307
VDSC307 AFTER 12-08-06
VDSC307AFTER12-08-06
VDSC485
VDSC485-4GAFTER08-11-06
VDSC485-4GQ AFTER 08-11-06
VDSC485-4GQAFTER08-11-06
VDSC485-6G
VDSC485-6Q
VDSC485C-6G
VDSC487
VDSC487-4GAFTER06-22-06
VDSC487-4GQAFTER06-22-06
VDSC487-4QAFTER07-24-06
VDSC487-6G AFTER 06-14-06
VDSC487-6GAFTER06-14-06
VDSC487-6Q AFTER 07-10-06
VDSC487-6QAFTER07-10-06
VDSC487-6QAFTER10-06-07
VESC305
VESC306
VGIC365
VGIC367
VGIS360
VGSC306
VGSC307
VGSC486
VGSC487-4G
VGSC487-4GQ
VGSC487-4K
VGSC487-4Q
VGSC487-6G
VGSC487-6Q
VGSS360
