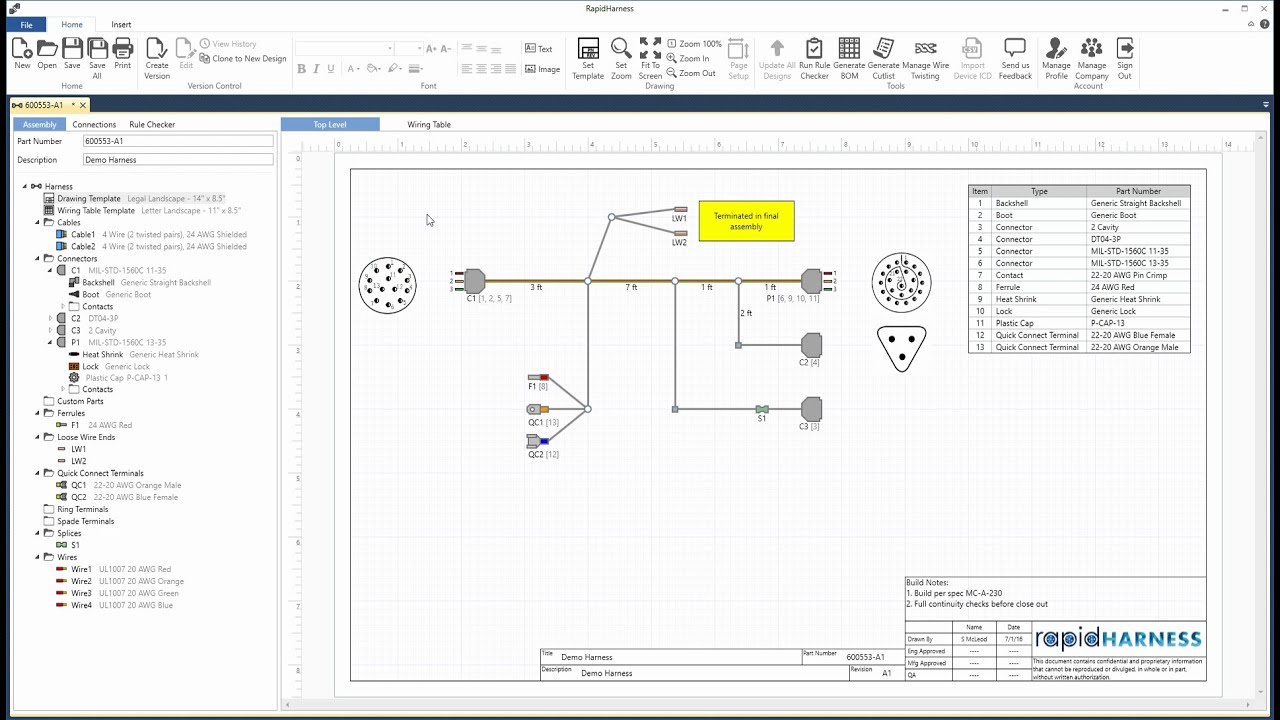

RapidHarness Tutorial: Designing Harnesses
Автор: RapidHarness
Загружено: 2016-07-15
Просмотров: 110281
Описание:
This video will introduce the basic concepts of designing harnesses in RapidHarness. Below is a brief list of the topics covered.
0:29 User Interface Overview
2:30 Adding Connectors & Design Assembly Overview
4:31 Assigning Contacts
5:32 Changing & Renaming Connectors
6:32 Adding Backshells, Boots, Heat Shrinks, and Locks
7:22 Adding Custom Parts
8:39 Adding Connections and Highlighting
12:24 Wiring Table Overview
14:25 Editing Connections
16:52 Using Splices, Ferrules, Quick Connect Terminals, Ring Terminals, and Spade Terminals
21:12 Using Loose Wire Ends
22:34 Assigning Wires, Cables, and Managing Twisting
29:09 Adding Connection Notes
30:01 Updating the Top Level Drawing
31:59 Managing Bundles - Layout Points, Branch Points, and Lengths
36:34 Adding Text, Images, and Updating Drawing Templates
40:03 Using the Design Rule Checker
40:28 Printing Your Designs
40:53 Generating a Bill of Materials and Wire and Cable Cutlist
