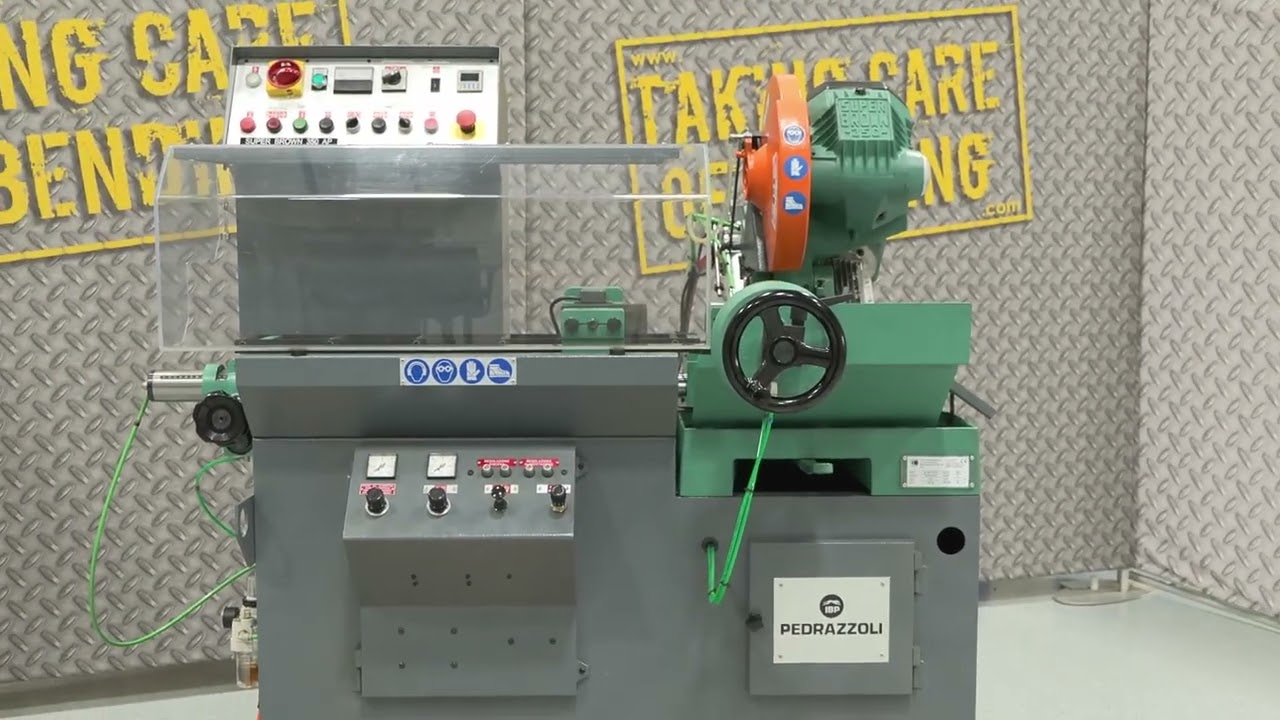

Pedrazzoli Super Brown 350 AP Semiautomatic Circular Cold Saw with Feeder & Pneumatic Vise

Описание: Cutting Capacity (0°-45° pipe): 4.5″

Introducing the Pedrazzoli Super Brown circular cold saw with a semi-automatic step feeder, a game-changer for fabrication shops seeking to enhance production efficiency and minimize labor for multiple cuts. Even the semi-auto feature ensures secure and rapid cutting of ferrous tubes, pipes, and profiles, with minimal clean-up required.

Distinguished by their heavy-duty cast iron bases that effectively dampen vibrations during the cutting process, all Pedrazzoli saws excel in stability. The work head is adjustable for mitering to the left and can be securely locked in place. For expedited loading and workpiece securing, a pneumatic vise is employed. An anti-burr device is meticulously configured to provide steadfast material support throughout the cut, resulting in burr-free parts devoid of heat transfer.

Positioned conveniently in front of the saw, the control panel facilitates seamless operation. Pneumatic cylinders equipped with feed regulators manage and fine-tune the saw’s downward feed and step feed movements.

The feed system is capable of executing up to nine repeating steps, achieving a total movement of 18 feet. A programmable piece counter comes standard. A transmission system featuring pulleys extends the RPM range, while a worm drive gearbox with a clutch mechanism prevents blade breakage during the cutting cycle. The machine’s proven design ensures a smooth sawing operation and unparalleled reliability. Crafted and assembled with years of fabrication expertise.

• Saw head swivels 45 degrees left for mitering
• Variable speed blade adjusts between 15-90 rpm
• Accepts saw blades to 350 mm with blade cleaning roller inside cover
• Coolant tank with electric pump for effective cooling
• Complete blade guard coverage with rapid blade system
• Pneumatic vise available with removable anti burr device
• Head tilt pivots on self-lubricating bearings
• Gear reverser
• Electric pump supplies lubrication to key components constantly
• Anti burr group grips part throughout cutting cycle minimize burring
• Easy access to emergency stop with lockable switch on control
• Capacity of feeder collet to six inches
• Minimum final length six inches
• Metal base welded for rigid reinforcement
