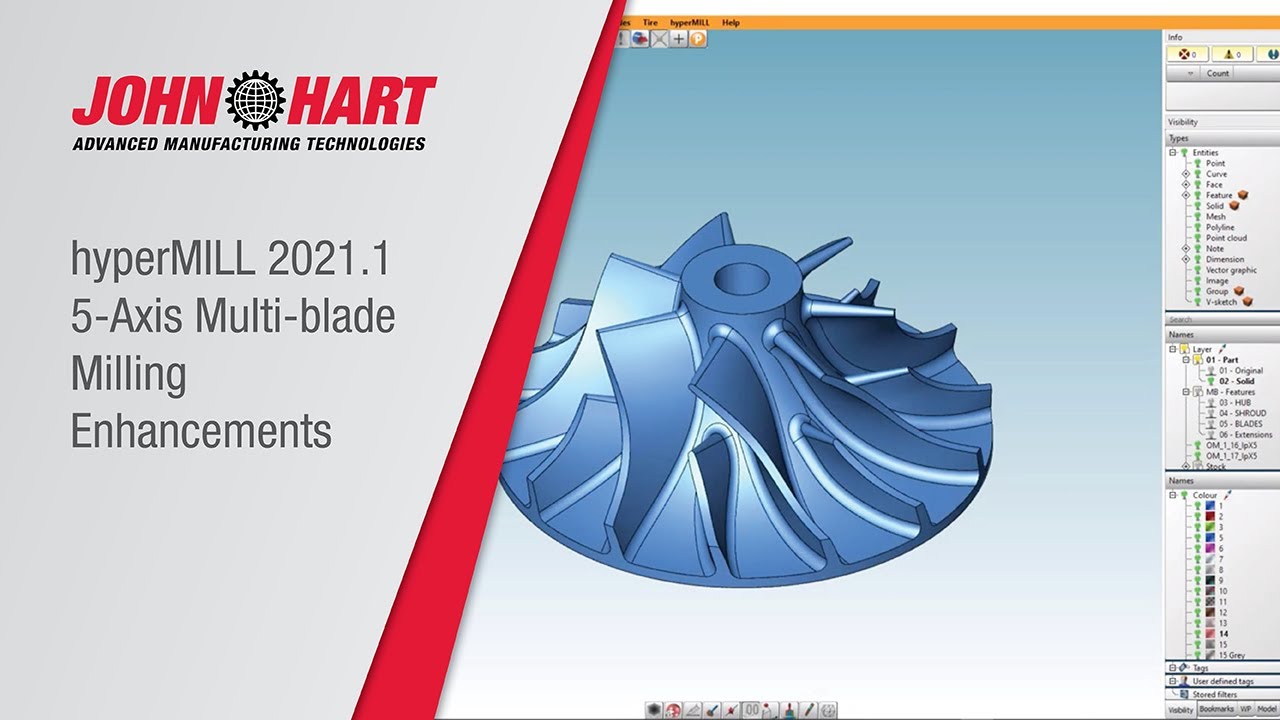

hyperMILL 2021.1 - 5-Axis Multi blade Milling Enhancements

Описание: The Multi-Blade cycles now have an extended feature support. With the extended feature support, it is possible to define additional surface or contour features to further improve the toolpath creation. This can be used to define specific trim curves or surface extensions to individual toolpaths, independent from the MB feature. In this example, the additional surface feature will be used to smooth the toolpath around the trailing edge. This the original toolpath, with only the MB feature selected. Now the same toolpath with the surface feature added. It is only required to add the feature to the job and select the correct use for the surface. The same procedure applies for the splitter blade. The 5x MB Point Milling cycle now supports the high precision surface mode for tolerances below 0.005 mm. Create high quality and ultra-smooth surfaces with the greatest precision. 5x MB Flank Milling Completely redesigned with new enhancements! Improved accuracy with tighter tolerances. Work easily with surface extensions. Multiple surfaces / patches allowed. Variable radius fillet supported.
