how to start up 2jz gte non vvti supra aristo on floor outside the car basic wiring setup

Описание: how to start up 2jz gte non-vvti? also same thing for non turbo NA 2jzge non-vvti
basic wiring setup for starting 2jzgte on floor outside the car or in the car
this is basic harnesses wiring for aristo / supra 2jz gte non vvti

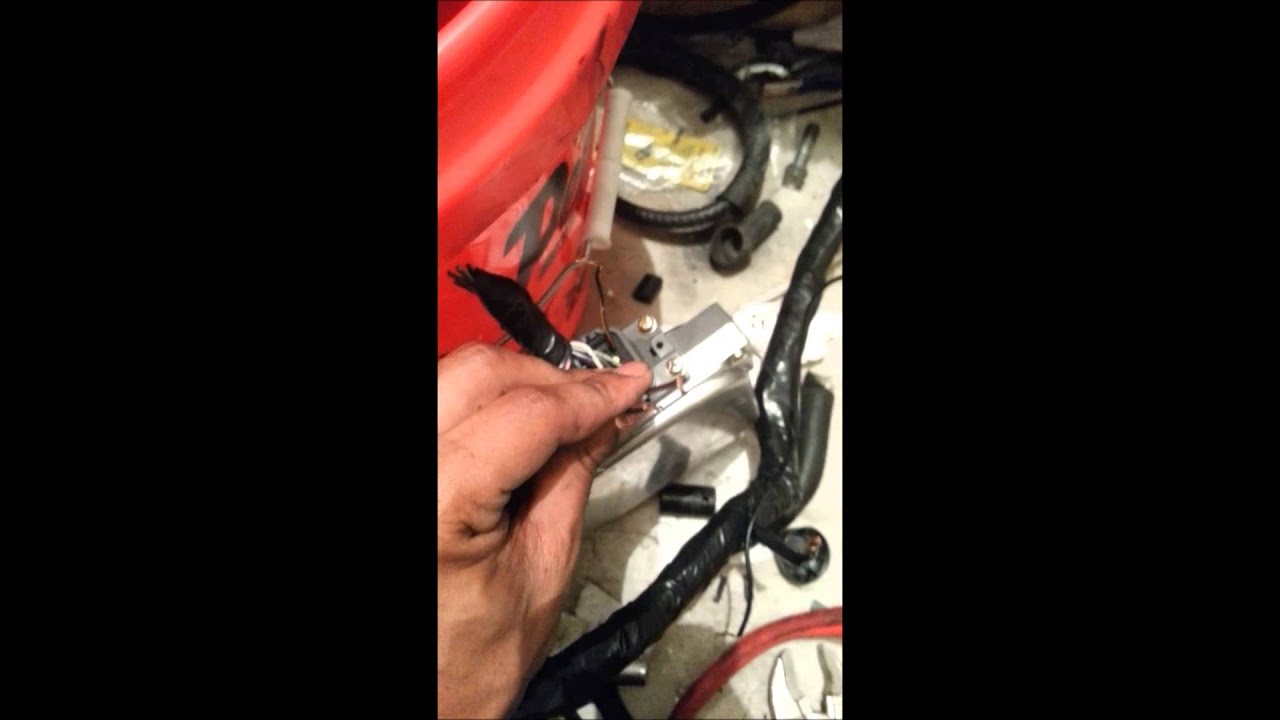

you will need to connect the harness, ecu, fuel pump, ignition model, starter, flywheel, and battery.

firing the engine step by step:
1- just connect IGSW, +B, +B1, BATT from the 40pin plug to +12v on the battery.
2- connect F6 from the body loom plug to +12v on battery.
3- connect fuel pump.
4- connect wire from the starter to +12v.
5- connect the ignition ship (ignition model).
6- ground wire from the engine to body of the car or negative on battery.
7- use pin number F1 from the body loom plug to fire up the engine.

40 PIN PLUG:
IGSW = IGNITION SWITCH (INPUT +12V)
+B = SWITCH POWER GOING TO MAIN RELAY (INPUT +12V)
+B1+ = SWITCH POWER GOING TO MAIN RELAY (INPUT +12V)
BATT = BATTERY CONSTANT +12V (INPUT)

BODY LOOM PIN:
F1 = STARTER FIRE UP ( INPUT +12V NON CONSTANT)
F6 = IGNITION SWITCH (INJECTORS, COILS, ETC CONNECT TO SWITCH +12V)
