Design for manufacture in solidworks: plastic parts
Автор: Design Mountain
Загружено: 2021-04-15
Просмотров: 7386
Описание:
In this video we look at design for manufacture in solidworks: plastic parts

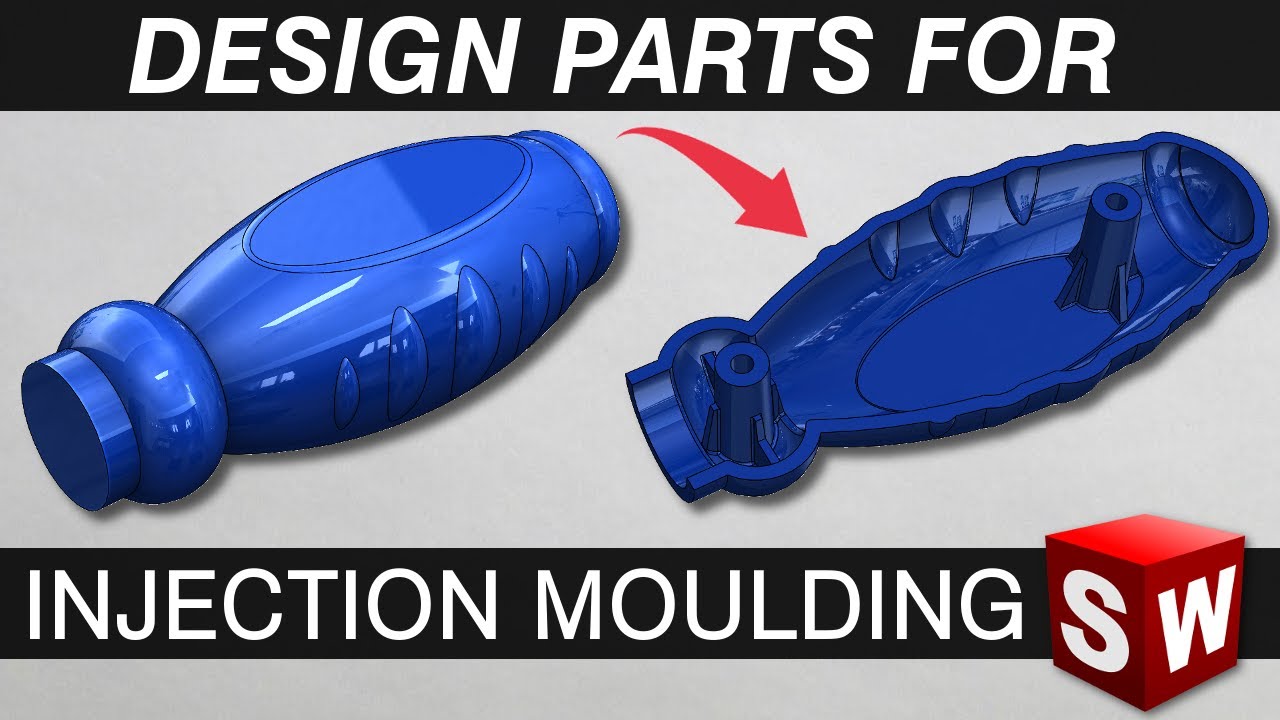

We look at some of the tools available in solidworks to turn a solid model into a part that is optimised for plastic injection moulding manufacture.
Design for manufacture in solidworks is easy using the right tools. We look at some elements of the plastic child’s toy we reverse engineered last week and show how to create them in solidworks.
🔔 Subscribe and hit the bell to get notified about our weekly videos
/ designmountain
Timestamps:
0:00 design for manufacture solidworks intro
0:22 split tool
0:42 parent / child reference with split
1:18 shell
1:40 screw boss sketch
2:09 screw boss extrude
2:51 rib sketch
4:42 rib extrude
6:55 rib circular pattern
7:10 parting line draft
8:20 outro
