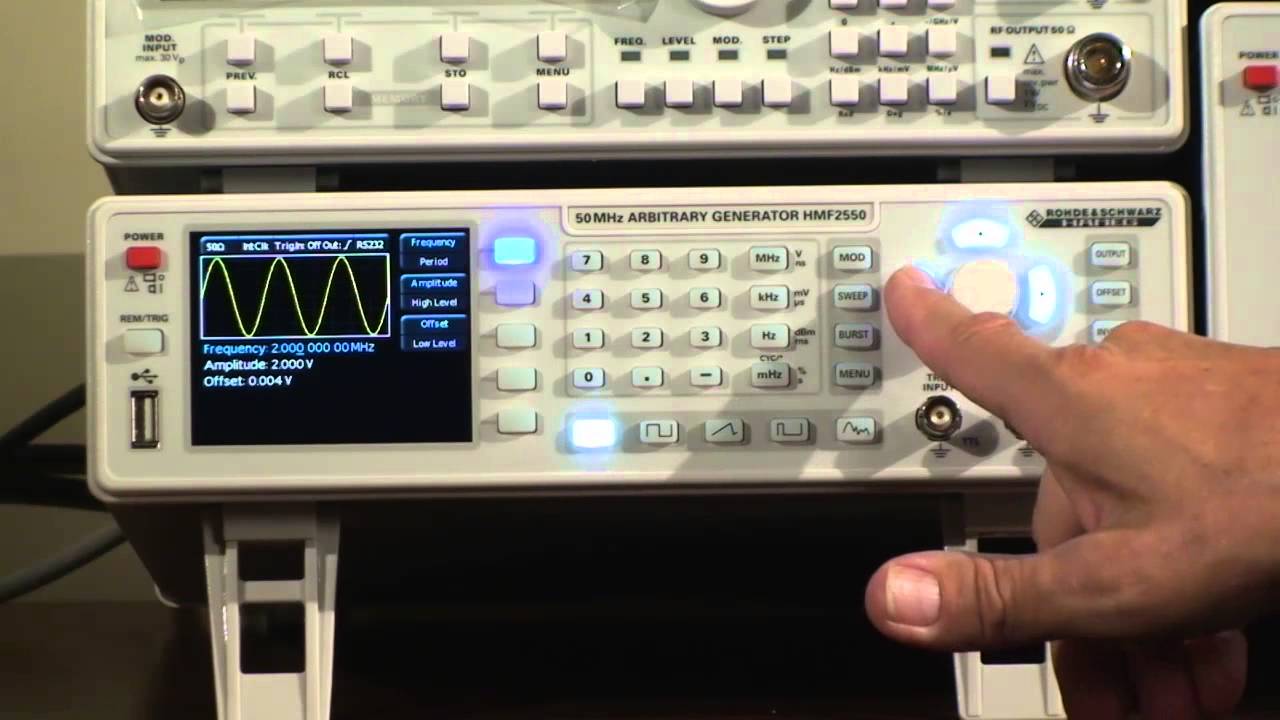

HAMEG® HMF2550 Arbitrary Waveform Generator
Автор: Rohde & Schwarz
Загружено: 2012-10-29
Просмотров: 4940
Описание:
Frequency Range 10μHz...25MHz [50MHz]
Output Voltage 5mVpp...10Vpp (into 50Ω) DC Offset ±5mV...5V
Arbitrary Waveform Generator: 250MSa/s, 14 Bit, 256kPts
Sine, Square, Pulse, Triangle, Ramp, Arbitrary Waveforms, incl. Standard Curves (white Noise, Cardiac etc.)
Total harmonic Distortion 0.04% (f
Burst, Sweep, Gating, external Trigger
Rise Time
Pulse Mode: Frequency Range 100μHz...12.5MHz [25MHz], Pulse Width 10ns...999s, Resolution 5ns
Modulation Modes AM, FM, PM, PWM, FSK (int. and ext.)
10 MHz Timebase: ±1ppm TCXO, rear I/O BNC Connector
Front USB Connector: Recall of Waveforms
8.9cm (3.5") TFT: crisp Representation of the Waveform and all Parameters
USB/RS-232 Dual-Interface , optional Ethernet/USB or IEEE-488 (GPIB)
More information at www.hameg.com/ h011_hmf.0.html? &L=0&0=
