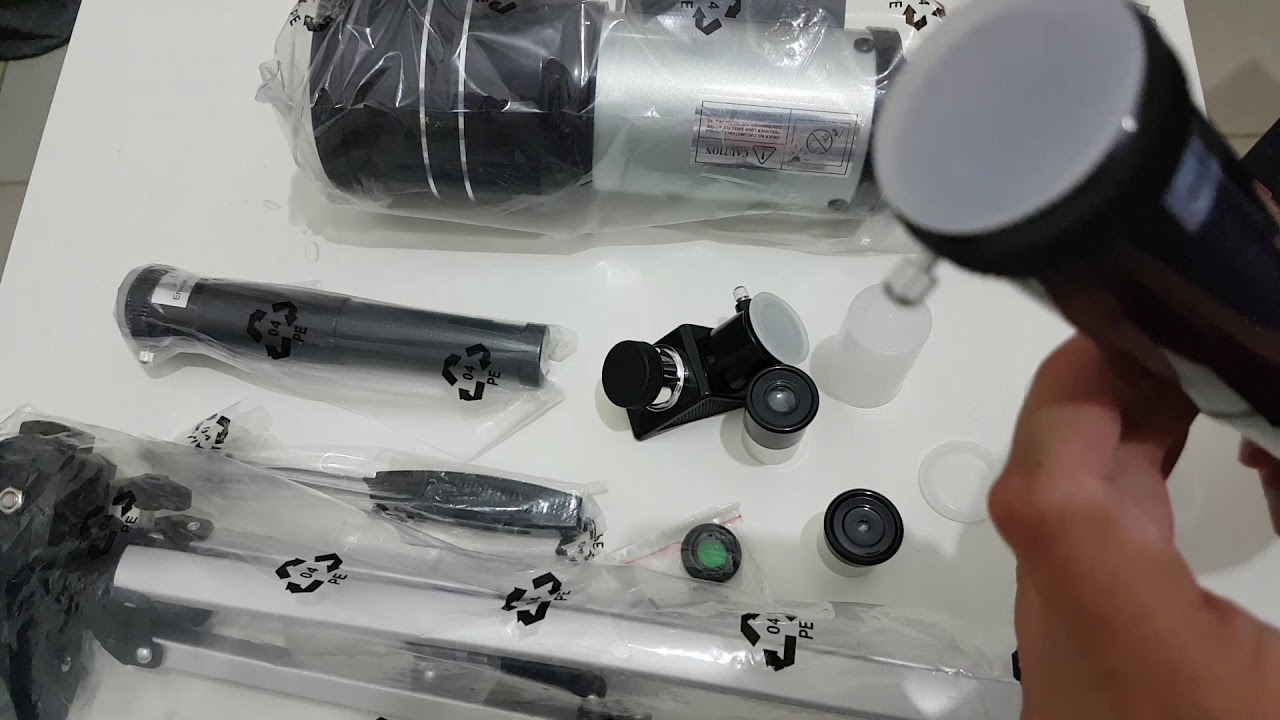

Unboxing F30070M Telescope

Описание: Unboxing F30070M Telescope
You can buy it via Aliexpress:
https://s.click.aliexpress.com/e/_ok4...

F30070M Monocular Professional Space Astronomic Telescope with Tripod Adjustable Lever Outdoor Monocular Barlow Lens
feel free to like and share this video
if you like this video please subscribe:

Feature:

Model: F30070M
Aperture: 70mm (2.4 inch)
Focal Length: 300mm f/4
Oblique Mirror: 90 degrees
Warp / Weft Machine and Aluminum Tripod
The Most Highly: 38cm

Standard 0.965 inch attachment contains:
Eyepiece: H6mm, H20mm
3X the Barlow lens
1.5X positive lens
Note: This maximum magnification: 150X (lens focal length / eyepiece focal length x Barlow multiplier = maximum magnification)

About Configuration:
Moon Filter: Because there is a lot of reflected light interfering our observation of full moon, so we can use the moon filter to avoid the interference, and then the moon's surface will be seen more clearly.
Please screw the moon filter into the threaded of eyepiece lens' lower part, and then connect the eyepiece lens with zenith lens.

About Multiples:
Equipped with eyepiece: H6mm, H20mm, multiples are 300/6 = 50X, 300/20 = 15X
If choose 3X Barlow lens together, multiples are 50 x 3 = 150X, 15 x 3 = 45X
Plus 1.5X the positive lens again, multiples are 50 x 1.5 = 75X, 15 x 1.5 = 22.5X

The formula:
Objective lens focal length / eyepiece focal length x Barlow multiplier = maximum magnification
Objective lens focal length / eyepiece focal length = magnification

Installation sequence:
1. Put up tripod, then attach the lens tube.
2. After the tube is fixed, install the finderscope (for preliminary search of the target object), then install the eyepiece (choose one from the two).
3. After find out the big goal, then debug with different eyepieces.

Note: 1. Multiples of course are not the only, and it depends on the combination of factors aperture and focal length. (For example, if the window is big, the natural light is good, and the view is clear.)
2. When use 3X Barlow lens, installed Barlow lens first, and then install the eyepiece. ( When install the Barlow lens, we need to move out the lid on the installation device of eyepiece.)
3. We just can choose one eyepiece to install at the same time, so does the Barlow lens.

For: Astronomy
Material: Optical glass
Color: Silver
Package weight: 1.701 kg
Product size (L x W x H): 31.50 x 10.50 x 10.50 cm / 12.4 x 4.13 x 4.13 inches
Package size (L x W x H): 46.50 x 22.00 x 11.50 cm / 18.31 x 8.66 x 4.53 inches
Package Contents: 1 x Astronomical Telescope, 2 x Eyepiece, 1 x Tripod, 2 x Barlow Lens, 1 x Moon Filter, 1 x English User Manual
