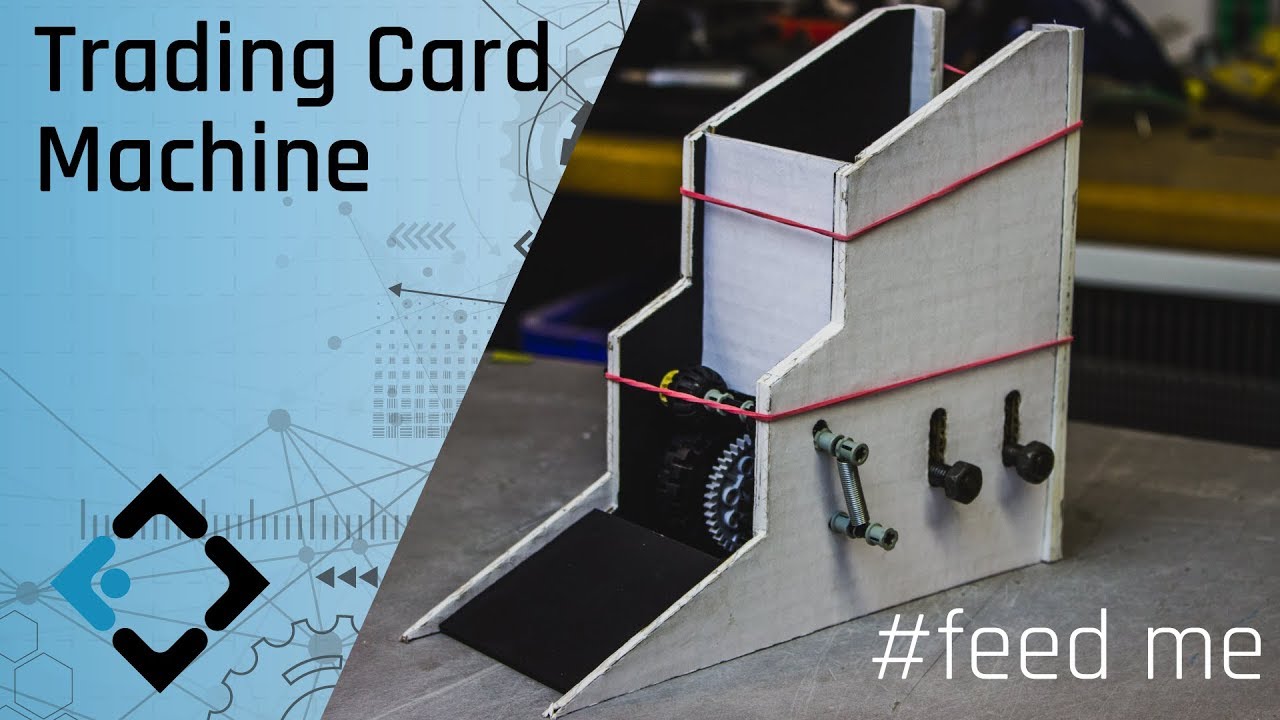

How to make a Card Feeder for a Trading Card Machine using Cardboard, Lego and a Raspberry PI
Автор: Marco Maker
Загружено: 2018-10-05
Просмотров: 25688
Описание:
Overview of my building process of a Card Feeder for a Trading Card Machine.
https://www.instructables.com/id/Card...
It is a prototype and it's made out of cardboard, some Lego Technic components and one continuous rotation servo.
In the end it will be controlled by a Raspberry Pi and some Adafruit components (Servo bonnet, micro switch)
The Feeder can be loaded with ~ 400 cards. The mechanism (similar like a printer) can feed one single card to the next area of the Trading Card Machine. (which will be the Card Scanner)
How do you like it?
Any questions or suggestions?
Please leave a comment below.
What's next?
I‘m going to work on the next prototype; the Card Sorter.
Source of inspiration
Michael Portera's version
• MTG Card Organizer II
--------------------
