20.2c Ex2 MJ12 P41 Q7 Parallel Wires with AC | A2 Magnetic Fields | CAIE A Level 9702 Physics

Описание: Example 2 - 9702/41/M/J/12: Two long straight parallel copper wires A and B are clamped vertically. The wires pass through holes in a horizontal sheet of card PQRS, as shown in Fig. 7.1.
#9702s12p41 #A2parallelWiresP4 #Lv3

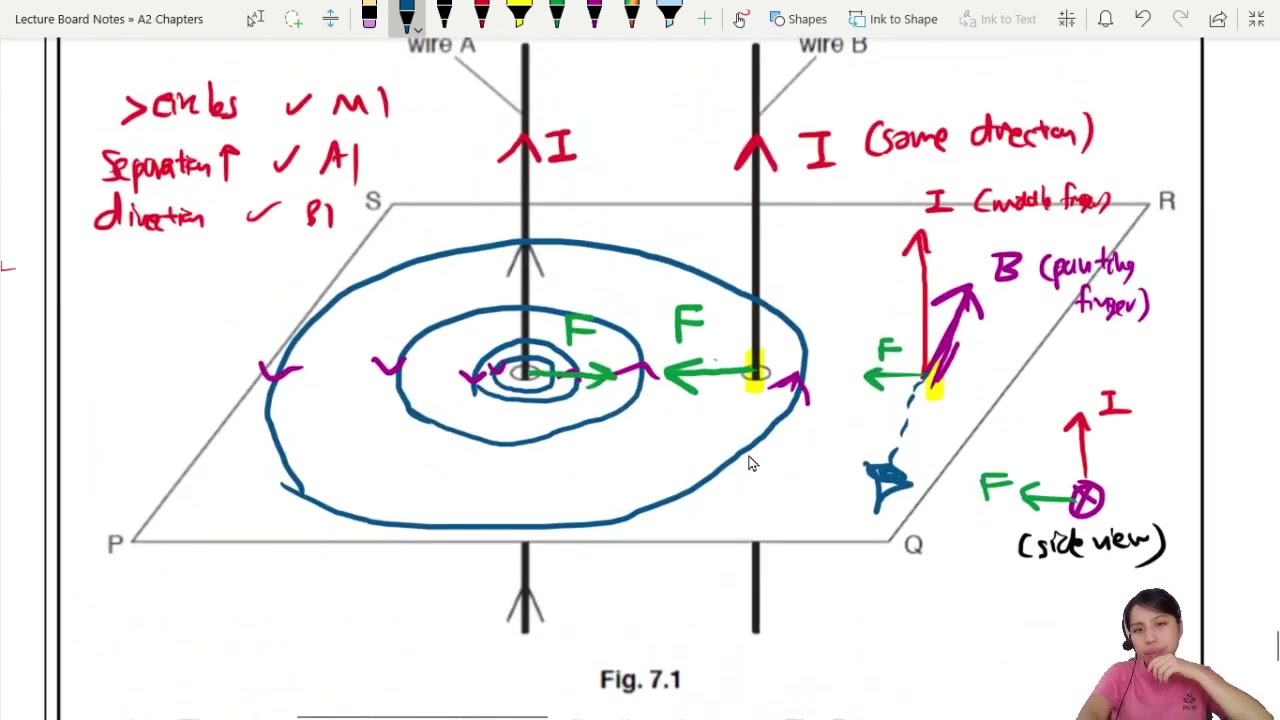

(a) There is a current in wire A in the direction shown on Fig. 7.1. On Fig. 7.1, draw four field lines in the plane PQRS to represent the magnetic field due
to the current in wire A.

(b) A direct current is now passed through wire B in the same direction as that in wire A. The current in wire B is larger than the current in wire A.
(i) On Fig. 7.1, draw an arrow in the plane PQRS to show the direction of the force on wire B due to the magnetic field produced by the current in wire A.
(ii) Wire A also experiences a force. State and explain which wire, if any, will experience the larger force.

(c) The direct currents in wires A and B are now replaced by sinusoidal alternating currents of equal peak values. The currents are in phase. Describe the variation, if any, of the force experienced by wire B.
